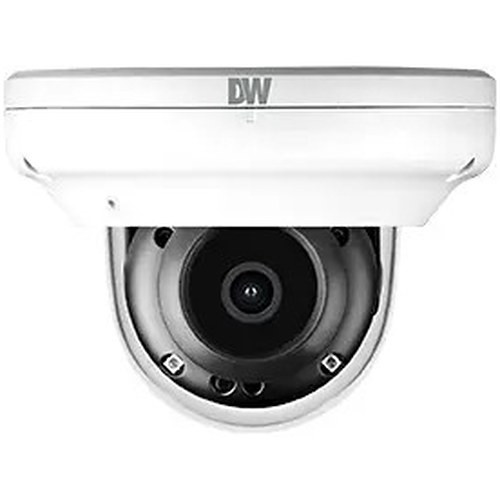

Digital Watchdog DWC-XSDE08Mi 8MP AI Outdoor Dome IP Camera

Digital Watchdog DWC-XSDE08Mi 8MP AI Outdoor Dome IP Camera

The Digital Watchdog DWC-XSDE08Mi is a professional outdoor dome camera built for surveillance deployments where low-light performance, intelligent analytics, and reliable weathering matter. This 8MP (3840 × 2160) unit pairs embedded AI analytics with a motorized 2.7–13.5mm lens and aggressive low-light handling—meaning you frame scenes post-install and capture usable color footage in conditions where most fixed-lens cameras fade to grayscale or noise. The combination of true 120dB Wide Dynamic Range (WDR) and 0.09 lux color sensitivity addresses the real problem: sunrise, sunset, and mixed artificial/natural lighting are where outdoor surveillance usually fails.

Key Features

• 8MP 4K resolution (3840 × 2160) at 30fps — captures fine detail (license plates, facial features) without requiring 12MP+ sensors and the storage penalty they carry. 30fps streams smoothly for forensic review and live monitoring without consuming excessive bandwidth.
• Embedded AI analytics: intrusion detection, line crossing, tailgating, dwell time, directional counting, and logical rule engines run on the camera itself. This means you don't need an external edge processor or third-party analytics server—threat detection happens in real-time at the source, reducing false alarms and network overhead.
• True WDR 120dB for extreme lighting swings — outdoor scenes with bright skylights and dark shadows are balanced in a single frame. 120dB handles roughly 4000:1 contrast ratios, so you see detail in both sky and pavement simultaneously. Skip this camera if your site has uniform, controlled lighting; deploy it where backlighting and harsh transitions are unavoidable.
• Advanced low-light: 0.09 lux color / 0.0 lux B/W with 100ft Smart IR range — a genuine advantage. Most cameras drop to B/W below 0.5 lux; this unit holds color at 0.09 lux, which means dawn and dusk footage includes color cues (vehicle paint, clothing, signage). The 100ft IR fill covers large outdoor areas—parking lots, perimeter fences, loading docks—without requiring separate IR floodlights.
• Motorized varifocal lens (2.7–13.5mm, auto-focus, P-iris) — you adjust zoom and focus remotely post-installation. This cuts on-site framing time and lets you reposition coverage when site conditions change. P-iris (programmable iris) automatically compensates for light changes without manual stops, keeping exposure consistent.
• PoE powered (Class 3, 12.5W) — single Ethernet cable delivers power and video. 12.5W is well within standard 802.3af budgets, so it won't strain your switch or force you to upgrade power infrastructure. No separate 12VDC supply needed.
• IP67 / IK10 aluminum housing for outdoor durability — IP67 means the dome survives direct rain, hose-down, and dust without intrusion. IK10 handles blunt-force impacts (intended for vandal resistance). The aluminum die-cast body won't corrode or warp in UV and salt-air environments.
• Dual-stream H.264/H.265 encoding with variable bitrate control — H.265 cuts file size roughly 40–50% versus H.264 at equivalent quality, which matters when recording 24/7 across multiple cameras. Dual-stream lets you record at high bitrate (archive) while streaming lower-bitrate feeds to mobile clients or bandwidth-limited sites.
• MicroSD recording (up to 1TB) with local alarm and email notifications — onboard storage means your camera keeps recording even if the network drops. Alarm I/O triggers local recording or email alerts without relying on a central NVR.
• Programmable privacy masks (16 zones) and motion detection with customizable zones — mask building/parking areas, or neighbors' property, without re-encoding video. Zone-based motion detection cuts false alerts from swaying branches or traffic on adjacent roads.
• Auto day/night, de-fog, and anti-flicker stabilization — the camera automatically switches between color (day) and B/W (night) modes based on illumination. De-fog compensates for atmospheric haze; anti-flicker syncs to 50Hz/60Hz mains frequency to eliminate flicker in fluorescent-lit areas near outdoor scenes.

Integration & Compatibility

The DWC-XSDE08Mi ships with ONVIF Profile S and open API support (RTSP, HTTP/HTTPS, FTP, DDNS, DHCP, SNMPv3). This means integration with network video management platforms—Milestone XProtect, Genetec, ExacqVision, and others—is plug-and-play. 1Gbps Ethernet and IPv4 stack handle multi-camera deployments at scale. Network security includes 802.1x certificate authentication, HTTPS/TLS encryption, IP filtering, and Digest authentication—standard protections for critical infrastructure.

The camera pairs naturally with network video recorders and PoE-powered network switches that supply the 12.5W per camera. A single 48-port PoE+ switch can power 48 of these units without oversubscription.

When to Choose a Different Model

If you need indoor monitoring or mounted indoors with controlled environmental conditions, consider a non-outdoor variant in the Digital Watchdog line. If 8MP is overkill (scenes are wide-angle or forensic detail is not critical), a lower-megapixel outdoor camera reduces storage and network load. If you require pan-tilt-zoom coverage (multi-scene tracking from a single mount), a PTZ dome is the correct choice—the DWC-XSDE08Mi is fixed-orientation (zoom adjusts, but pan/tilt do not).

Frequently Asked Questions

Q: Does the DWC-XSDE08Mi work with Milestone XProtect or Genetec?

A: Yes. The camera supports ONVIF Profile S and open protocols (RTSP, HTTP/HTTPS). It integrates with Milestone, Genetec, ExacqVision, and other ONVIF-compliant VMS platforms without custom drivers.

Q: What's the maximum bitrate, and will it saturate my network?

A: The DWC-XSDE08Mi supports up to 25 Mbps variable bitrate. In dual-stream mode, you can record high-bitrate (16–20 Mbps) locally to the microSD card while streaming lower bitrate (4–8 Mbps) to the NVR or clients. On a 1Gbps network, bitrate is not a constraint.

Q: Can I use this camera in a coastal or high-salt environment?

A: The aluminum die-cast housing is naturally salt-corrosion resistant. IP67 sealing prevents moisture ingress. For extreme salt-fog exposure (direct seaside), consider supplemental protective coatings or stainless hardware—these are not included. The camera is rated for –20°C to +50°C operation.

Q: Is the lens field of view adjustable after installation?

A: Yes. The motorized varifocal lens (2.7–13.5mm) with auto-focus and P-iris allows remote zoom and focus adjustment. No need to access the camera physically to reframe after it's mounted.

Q: How much storage does 1TB microSD provide for 24/7 recording?

A: At 8MP, 30fps H.265, bitrate depends on scene complexity—typically 8–15 Mbps. A rough estimate: 1TB holds roughly 20–40 days of continuous recording (H.265). H.264 reduces this to 10–20 days. Actual retention depends on motion-triggered recording and bitrate settings.

Q: What's the power draw, and will a standard PoE switch handle it?

A: The camera draws 12.5W maximum via IEEE 802.3af PoE (Class 3). A standard 48-port PoE+ (90W budget) switch can power 7 cameras at full load. For higher camera density, use PoE++ (802.3bt) switches or distribute across multiple PoE+ units.

Karl Wilson

The DWC-XSDE08Mi stands out in the mid-range outdoor segment because it pairs embedded AI analytics with the low-light resilience you actually need for industrial perimeter and parking lot surveillance. The combination of 0.09 lux color sensitivity, 120dB WDR, and 100ft Smart IR eliminates the excuses for blind spots at dawn, dusk, and under mixed lighting—problem areas where fixed-iris, non-WDR cameras typically fail. The motorized lens is a deployment win: you can commission the camera at height without climbing back up to adjust zoom three times.

Technical Highlights:

• True 120dB WDR: handles 4000:1 contrast without tone-mapping artifacts. Forensic detail survives backlit scenarios (subjects in shadows against bright open areas) that would blow out or crush detail on lower WDR cameras.
• H.265 dual-stream: reduces archive storage footprint 40–50% versus H.264. Critical when you're managing 24/7 multi-camera retention across weeks or months.
• Embedded AI (intrusion, line-crossing, tailgating, dwell time, counting): runs on-camera, eliminating the need for an external edge processor or central analytics appliance. Alerts fire immediately without downstream NVR load.
• PoE Class 3 (12.5W): won't exhaust a standard PoE+ switch budget. Deploy 7+ cameras per 48-port switch without power contention.

Deployment Considerations:

• IP67 sealing is robust, but the aluminum housing benefits from supplemental protective coating in high-salt or industrial-corrosive environments (not included). Plan for post-install touch-up if site conditions are extreme.
• The 2.7–13.5mm lens covers roughly 90° to 33° horizontal FOV. Verify framing during design—this is a moderate zoom range, not ultra-wide or super-telephoto. If you need multi-scene coverage from a single mount, PTZ is the alternative.
• MicroSD recording is a fail-safe, but 1TB capacity is roughly 20–40 days of continuous H.265 at scene-dependent bitrates. If retention policy exceeds that, pair with an NVR. Local recording is tactical, not strategic.

Deploy the DWC-XSDE08Mi where outdoor low-light performance, motorized framing, and embedded analytics justify the step up from fixed-lens outdoor domes. It's built for industrial perimeter, large parking lots, and traffic intersections where you need reliable dusk-to-dawn color capture and real-time threat alerting without external infrastructure.
