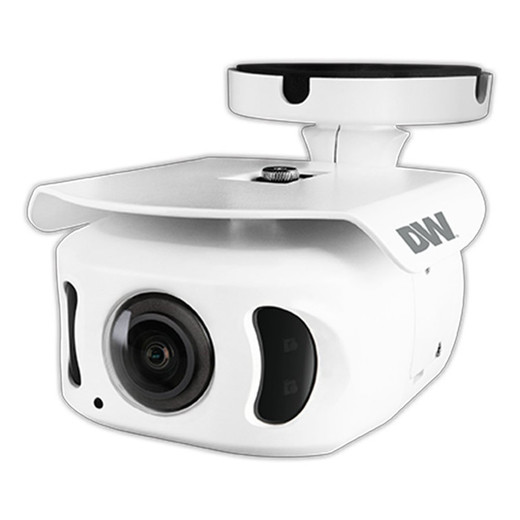

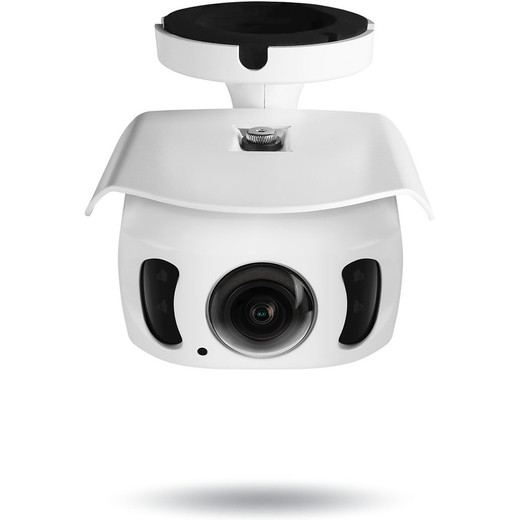

Digital Watchdog DWC-MPBW8Wi2TW 8MP AI IR Panoramic Outdoor IP Camera

Digital Watchdog DWC-MPBW8Wi2TW 8MP Panoramic IP Camera

The Digital Watchdog DWC-MPBW8Wi2TW delivers enterprise-grade surveillance with 8-megapixel resolution and AI-powered intelligence in a compact panoramic form factor. This multi-sensor outdoor camera combines 360° coverage capability with advanced imaging technologies to eliminate blind spots and provide comprehensive perimeter protection for commercial and industrial installations.

Key Features

• 8MP resolution with 3840 x 2160 active pixels for exceptional detail capture
• 175° horizontal field of view with panoramic design for maximum coverage
• AI-powered video analytics including intrusion detection, line crossing, and loitering alerts
• 100-foot Smart IR™ night vision for 24/7 visibility in complete darkness
• True WDR 120dB for balanced exposure in high-contrast lighting conditions
• PoE powered with minimal 12.3W consumption for simplified installation
• IP67-rated aluminum housing rated for harsh outdoor environments (-4°F to 122°F)
• Dual-stream H.264/H.265 video compression with multi-bitrate encoding
• Onboard Micro SD/SDHC/SDXC storage (up to 1TB) for independent recording
• Auto day/night operation with Smart DNR™ 3D noise reduction

Technical Highlights

This camera employs a 1/1.8" CMOS sensor with 2.3mm fixed lens geometry, delivering 175° horizontal and 80° vertical field of view. The panoramic housing accommodates the wide aperture while maintaining a compact 5.03" x 8.75" footprint. Low light performance extends to 0.0 lux in black and white mode and 0.29 lux in color, ensuring visibility in near-total darkness with IR augmentation.

Video streaming supports up to 30fps across all resolutions with flexible codec selection: H.264, H.265, or MJPEG at QFHD, 2.1MP, 1080p, 720p, VGA, or CIF resolutions. H.265 encoding reduces bandwidth by up to 50% compared to H.264, critical for high-density deployments. The camera supports IPv4 networking via 1000Base-T Gigabit Ethernet with ONVIF protocol compliance and extensive security protocols including 802.1x, HTTPS/TLS, and IP filtering.

Integrated IVA license functionality enables tamper detection, loitering detection, directional alerts, and bi-directional counting. Advanced IVA+ features add object removal, tailgating, and virtual boundary crossing detection. Motion detection, email alerts, and FTP server integration ensure real-time operational notifications.

Professional Installation & Integration

Compatible with DW Spectrum® IPVMS, ExacqVision, Genetec, and Milestone Systems platforms. The camera provides CVBS local video output for on-site setup verification and includes 1/1 alarm I/O and 1/1 audio I/O for integrated access control and two-way communication systems. Adjustable shutter modes (anti-flicker, auto, manual, slow shutter up to 7.5x) and white balance compensation optimize performance across diverse lighting environments.

Applications

Ideal for perimeter security, parking lot monitoring, warehouse surveillance, campus security, and retail loss prevention. The 360° coverage and AI analytics make it particularly effective for high-value asset protection and behavioral threat detection.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The DWC-MPBW8Wi2TW represents a sophisticated solution for organizations requiring wide-area surveillance with minimal infrastructure complexity. The panoramic design and 175° HFOV reduce mounting point requirements compared to multiple fixed cameras, lowering overall deployment costs. H.265 codec support is particularly valuable in bandwidth-constrained environments, while True WDR 120dB handles challenging high-dynamic-range scenes common in outdoor perimeter applications.

The integrated AI analytics library provides behavioral intelligence without requiring external VMS licensing, reducing operational overhead. IP67 aluminum construction ensures 5-year reliability in salt-spray and high-humidity maritime or industrial settings. PoE power delivery and onboard SD recording create a resilient architecture capable of continued operation during network interruptions.

Available in White.
