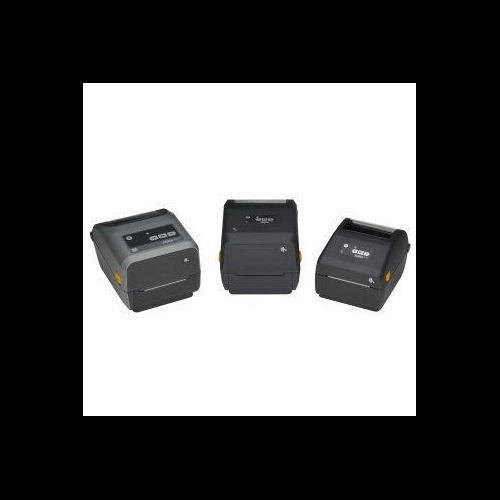

Zebra ZD421 vs Zebra ZD421: Specification Comparison
Both products are Zebra ZD421 direct thermal desktop label printers operating at 203 dpi, targeting the same label-printing use case in light industrial, retail, and logistics environments. The ZD4A042-D01E00EZ (EZ) and ZD4A042-D01E00GA (GA) share an identical core engine, connectivity stack, and form factor. The primary differentiators surfaced by the provided specs are ribbon specification detail, barcode language support depth, media thickness maximum, and regional/cord variant — making this a configuration-level comparison rather than a platform-level one.
In This Guide
- Which model gives installers more complete media and ribbon specification coverage?
- Do the two models differ in print speed, resolution, or supported printer languages?
- Are there differences in memory, connectivity, or operating environment between the two SKUs?
- Which should you choose: the ZD421 or the ZD421?
- Side-by-Side Specs
- FAQ
Which model gives installers more complete media and ribbon specification coverage?
Both models accept media widths from 0.585 in. (15 mm) to 4.25 in. (108 mm) and share a maximum media roll outer diameter of 5.00 in. (127 mm). However, the GA spec sheet explicitly states a media thickness maximum of 0.0075 in. (0.19 mm), while the EZ spec sheet lists only a minimum of 0.003 in. (0.08 mm) — the upper bound is not specified for EZ in the provided data.
On ribbon, both cite the same core diameter of 2.6 in. (66 mm) at 300 m. The GA spec additionally discloses ribbon width range of 1.33 in. (33.8 mm) to 4.3 in. (109.2 mm) and ribbon length of 984 ft. (300 m) explicitly. The EZ listing does not include ribbon width range or length in the provided specs. For procurement teams specifying compatible ribbon stock, the GA sheet provides more actionable data as supplied.
Do the two models differ in print speed, resolution, or supported printer languages?
Print resolution is identical at 203 dpi (8 dots per mm) on both units. Print speed is specified at 6 in./152 mm per second on both models, though the EZ spec ties this explicitly to 203 dpi while the GA listing does not qualify the speed by resolution — a minor documentation difference, not a performance difference based on available data.
Printer language support diverges noticeably in the provided specs. The EZ listing includes ZPL II, EPL 2, XML, ZBI, and PDF Direct. The GA listing specifies only ZPL II and EPL 2. It is not confirmed from the supplied specs whether GA hardware lacks XML, ZBI, and PDF Direct support or whether those capabilities are simply absent from the GA spec sheet as provided. Buyers whose workflows depend on PDF Direct printing or ZBI scripting should verify GA firmware support before committing.
The GA spec sheet adds barcode ratio support (2:1 and 3:1) and an explicit list of 2D barcode symbologies including DataMatrix, QR Code, Aztec, PDF417, Codablock, Code 49, MaxiCode, and MicroPDF — none of which appear in the EZ provided specs. Again, absence in the EZ sheet does not confirm hardware absence.
Are there differences in memory, connectivity, or operating environment between the two SKUs?
Total memory is identical where both are specified: 512 MB Flash and 256 MB SDRAM. The EZ spec additionally documents user-available memory at 64 MB non-volatile and 8 MB SDRAM — the GA sheet does not break out user-available memory in the provided data.
Connectivity is identical across both units as specified: USB 2.0, USB Host, Ethernet, 802.11ac Wi-Fi, and Bluetooth 4.1. Operating environment is likewise matched: 40°–105°F (4.4°–41°C) operating temperature, -40°–140°F (-40°–60°C) storage, 10%–90% non-condensing operating humidity, and 5%–95% non-condensing storage humidity.
Electrical requirements are 100–240VAC, 50–60Hz on both models. Both carry a two-year standard warranty. The SKU suffix difference (EZ vs GA) is consistent with Zebra's regional cord/regulatory variant naming convention, suggesting a US-cord vs international-cord distinction — however, the provided specs do not explicitly state the geographic regulatory target beyond 'US Cord' in the EZ product title.
Which should you choose: the ZD421 or the ZD421?
Our take: The ZD421 EZ (ZD4A042-D01E00EZ) is the stronger documented choice for US-based deployments requiring advanced printer language support, as its spec sheet explicitly lists ZPL II, EPL 2, XML, ZBI, and PDF Direct versus only ZPL II and EPL 2 confirmed for the GA model. The GA (ZD4A042-D01E00GA) provides more complete ribbon and media specification detail — including a stated media thickness maximum of 0.0075 in. and ribbon width range of 1.33–4.3 in. — which aids consumables procurement. Both units are mechanically and electrically identical on every shared dimension: 203 dpi, 6 in./sec, 512 MB Flash, identical connectivity, and identical environmental ratings. Choose EZ for US-cord deployments where XML/ZBI/PDF Direct language support is operationally required; choose GA where the regional variant is appropriate and thorough ribbon spec documentation matters. Verify barcode symbology support with Zebra directly if 2D codes are mission-critical on EZ.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Zebra ZD421 | Zebra ZD421 |
|---|---|---|
| Print Resolution | 203 dpi / 8 dots per mm | 203 dpi / 8 dots per mm |
| Print Speed | 6 in./152 mm per sec (203 dpi) | 6 in./152 mm per sec |
| Max Print Width | 4.09 in. / 104 mm | 4.09 in. / 104 mm |
| Max Media Width | 4.25 in. / 108 mm | 4.25 in. / 108 mm |
| Min Media Width | 0.585 in. / 15 mm | 0.585 in. / 15 mm |
| Media Thickness (min) | 0.003 in. / 0.08 mm | 0.003 in. / 0.08 mm |
| Media Thickness (max) | — | 0.0075 in. / 0.19 mm |
| Max Media Roll Diameter | 5.00 in. / 127 mm | 5.00 in. / 127 mm |
| Ribbon Diameter | 2.6 in. / 66 mm (300 m) | 2.6 in. / 66 mm (300 m) |
| Ribbon Width Range | — | 1.33 in.–4.3 in. / 33.8–109.2 mm |
| Memory | 512 MB Flash; 256 MB SDRAM | 512 MB Flash; 256 MB SDRAM |
| User-Available Memory | 64 MB NV; 8 MB SDRAM | — |
| Connectivity | USB 2.0, USB Host, Ethernet, 802.11ac Wi-Fi, BT 4.1 | USB 2.0, USB Host, Ethernet, 802.11ac Wi-Fi, BT 4.1 |
| Printer Languages | ZPL II, EPL 2, XML, ZBI, PDF Direct | ZPL II, EPL 2 |
| 2D Barcode Symbologies | — | PDF417, DataMatrix, QR Code, Aztec, Codablock, Code 49, MaxiCode, MicroPDF |
| Warranty | Two-year standard | Two-year standard |
Frequently Asked Questions
Which should you choose: the ZD421 or the ZD421?
The ZD421 EZ (ZD4A042-D01E00EZ) is the stronger documented choice for US-based deployments requiring advanced printer language support, as its spec sheet explicitly lists ZPL II, EPL 2, XML, ZBI, and PDF Direct versus only ZPL II and EPL 2 confirmed for the GA model. The GA (ZD4A042-D01E00GA) provides more complete ribbon and media specification detail — including a stated media thickness maximum of 0.0075 in. and ribbon width range of 1.33–4.3 in. — which aids consumables procurement. Both units are mechanically and electrically identical on every shared dimension: 203 dpi, 6 in./sec, 512 MB Flash, identical connectivity, and identical environmental ratings. Choose EZ for US-cord deployments where XML/ZBI/PDF Direct language support is operationally required; choose GA where the regional variant is appropriate and thorough ribbon spec documentation matters. Verify barcode symbology support with Zebra directly if 2D codes are mission-critical on EZ.
Is the ZD421 EZ or ZD421 GA better for environments that use ZBI scripting or PDF Direct printing?
Based on the provided specs, the EZ (ZD4A042-D01E00EZ) explicitly lists ZBI and PDF Direct among its supported printer languages. The GA (ZD4A042-D01E00GA) spec sheet as provided lists only ZPL II and EPL 2. If ZBI scripting or PDF Direct are required in your workflow, the EZ spec documentation supports those capabilities; verify GA firmware support directly with Zebra before selecting that variant.
Do the two ZD421 models take the same ribbon and media supplies?
Both share the same ribbon core diameter (2.6 in./66 mm, 300 m) and the same media width range (0.585–4.25 in. / 15–108 mm) and maximum roll diameter (5.00 in./127 mm). The GA spec additionally states a ribbon width range of 1.33–4.3 in. and a media thickness maximum of 0.0075 in., which the EZ sheet does not specify. Consumables compatible with the ZD421 platform should be interchangeable, but confirm ribbon width compatibility against the GA specification if ordering new ribbon stock.
What is the difference between the EZ and GA suffix on the Zebra ZD421?
The provided product titles describe both as 'US Cord' units, and the SKU suffix convention in Zebra's naming scheme typically denotes regional cord and regulatory configuration. The EZ and GA suffixes likely correspond to different regional or certification variants. The provided specs do not explicitly define the geographic or regulatory distinction beyond 'US Cord' in the EZ title. Contact Zebra or your distributor to confirm which variant is appropriate for your country of deployment.
