Zebra DS9308-SR00004ZTWW vs Datalogic M3410-010210-00604: Specification Comparison
Both the Zebra DS9308-SR00004ZTWW and the Datalogic Magellan 3410VSi (M3410-010210-00604) are wired, countertop presentation scanners rated IP52 and capable of reading 1D and 2D symbologies including QR Code, Data Matrix, and PDF417. They target retail point-of-sale environments where hands-free or hand-presented scanning is required. The comparison centers on scan performance, physical form factor, connectivity options, and warranty coverage — the dimensions that most directly influence POS lane integration and total cost of ownership decisions.
In This Guide
- How do the two scanners compare on decode capability and throughput?
- Which scanner better fits the physical and integration constraints of a retail POS counter?
- What do the durability ratings and warranty terms mean for long-term deployment cost?
- Which should you choose: the DS9308-SR00004ZTWW or the M3410-010210-00604?
- Side-by-Side Specs
- FAQ
How do the two scanners compare on decode capability and throughput?
The Zebra DS9308-SR00004ZTWW specifies a scan rate of 120.1 inches per second with a single-pass scan pattern, using a 1D/2D imaging engine. Supported symbologies include Code 128, Code 39, UPC, EAN on the 1D side and QR Code, Data Matrix, and PDF417 on the 2D side. The single-pass pattern means the scanner resolves a barcode in one linear motion across the sensor.
The Datalogic M3410-010210-00604 uses a 2D area imager with a wide field of view and omnidirectional scan pattern. No scan rate in inches per second is provided in the available specifications. Its supported symbologies are listed as the same core set: Code 128, Code 39, UPC, EAN (1D) and QR Code, Data Matrix, PDF417 (2D). The omnidirectional capability means barcodes can be presented at any angle without alignment, which is a practical throughput advantage in high-volume lanes even absent a published scan-rate figure.
Which scanner better fits the physical and integration constraints of a retail POS counter?

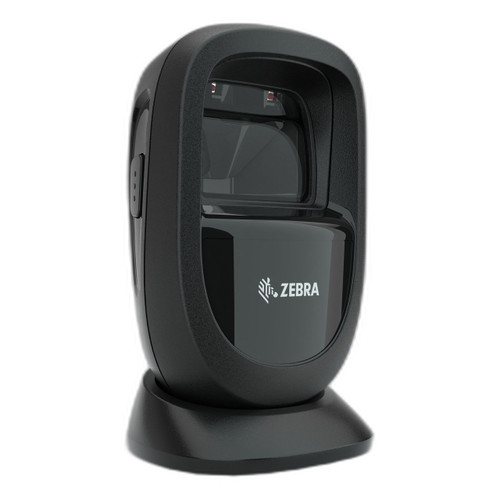

The Zebra DS9308-SR00004ZTWW is specified at 11.2 oz (318 g) with a standard presentation form factor. Connectivity is wired USB only. Input voltage is host-powered at 4.5–5.5 VDC, meaning no separate power supply is required when connected via USB. Mount options listed include Wall, Recessed, and Rack, giving some flexibility in counter layout.
The Datalogic M3410-010210-00604 is specified at 1.3 lb (approximately 590 g) with physical dimensions of 152 × 137 × 94 mm (6.0 × 5.4 × 3.7 in) and a vertical presentation orientation designed for on-counter placement. Connectivity covers both USB and RS-232, which extends compatibility to legacy POS terminals that lack USB host ports. Mount options are listed as Wall only in the available specifications. No host-power-only note is provided; RS-232 deployments typically require a separate power source.
What do the durability ratings and warranty terms mean for long-term deployment cost?
Both units carry an IP52 rating, providing equivalent protection against dust ingress (limited) and dripping water. The Zebra DS9308-SR00004ZTWW adds a drop rating of 1.5 meters (5 feet) to concrete, which is a published mechanical resilience figure relevant to accidental counter-level drops. Operating temperature is specified at 0°C to 50°C (32°F to 122°F) with storage down to -40°C. Warranty coverage is 1 year.
The Datalogic M3410-010210-00604 provides no drop rating in the available specifications. No operating temperature range is provided in the available specifications. Warranty coverage is 3 years — three times the Zebra's stated term — which directly reduces projected service and replacement costs over a multi-year POS deployment without requiring an extended-service contract.
Which should you choose: the DS9308-SR00004ZTWW or the M3410-010210-00604?
Our take: The DS9308-SR00004ZTWW is the stronger choice when scan throughput data and drop resilience are primary requirements, while the M3410-010210-00604 is the stronger choice when warranty longevity and RS-232 compatibility are the deciding factors. Concretely: Zebra publishes a 120.1 inch/second scan rate versus no published rate for the Datalogic; Zebra carries a 1.5 m drop rating versus no published drop rating for the Datalogic; and Datalogic offers a 3-year factory warranty versus Zebra's 1-year coverage. The Datalogic's omnidirectional area imager and dual USB/RS-232 interface also make it the better fit for mixed-age POS infrastructure or environments where barcode orientation cannot be controlled. Buyers standardizing on USB-only, modern POS lanes who need a documented scan rate and drop spec should favor the Zebra; buyers prioritizing warranty depth and legacy serial connectivity should favor the Datalogic.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Zebra DS9308-SR00004ZTWW | Datalogic M3410-010210-00604 |
|---|---|---|
| Product Type | Presentation Scanner | Vertical Presentation Scanner |
| Scan Engine | 1D/2D Imager | 2D Area Imager |
| Scan Pattern | Single-pass | Omnidirectional, wide field of view |
| Scan Rate | 120.1 in/sec | — |
| Symbologies 1D | Code 128, Code 39, UPC, EAN | Code 128, Code 39, UPC, EAN |
| Symbologies 2D | QR Code, Data Matrix, PDF417 | QR Code, Data Matrix, PDF417 |
| Connectivity | USB (wired) | USB, RS-232 |
| Power | Host-powered 4.5–5.5 VDC via USB | — |
| IP Rating | IP52 | IP52 |
| Drop Rating | 1.5 m to concrete | — |
| Weight | 11.2 oz (318 g) | 1.3 lb (~590 g) |
| Dimensions | — | 152 x 137 x 94 mm (6.0 x 5.4 x 3.7 in) |
| Operating Temp | 0°C to 50°C (32°F to 122°F) | — |
| Storage Temp | -40°C to 70°C (-40°F to 158°F) | — |
| Warranty | 1 year | 3 years |
| Color Options | Alpine White, Midnight Black | — |
Frequently Asked Questions
Which should you choose: the DS9308-SR00004ZTWW or the M3410-010210-00604?
The DS9308-SR00004ZTWW is the stronger choice when scan throughput data and drop resilience are primary requirements, while the M3410-010210-00604 is the stronger choice when warranty longevity and RS-232 compatibility are the deciding factors. Concretely: Zebra publishes a 120.1 inch/second scan rate versus no published rate for the Datalogic; Zebra carries a 1.5 m drop rating versus no published drop rating for the Datalogic; and Datalogic offers a 3-year factory warranty versus Zebra's 1-year coverage. The Datalogic's omnidirectional area imager and dual USB/RS-232 interface also make it the better fit for mixed-age POS infrastructure or environments where barcode orientation cannot be controlled. Buyers standardizing on USB-only, modern POS lanes who need a documented scan rate and drop spec should favor the Zebra; buyers prioritizing warranty depth and legacy serial connectivity should favor the Datalogic.
Is the DS9308-SR00004ZTWW or the M3410-010210-00604 better for high-volume retail lanes where scan speed matters?
The Zebra DS9308-SR00004ZTWW is the only one of the two with a published scan rate — 120.1 inches per second with a single-pass pattern. The Datalogic M3410-010210-00604 does not list a scan rate in its available specifications. However, the Datalogic's omnidirectional area imager can decode barcodes presented at any angle, which reduces rescans in practice. Buyers who require a documented throughput figure should select the Zebra; buyers who prioritize flexible barcode presentation should consider the Datalogic.
Which scanner has better long-term support coverage for a multi-year POS deployment?
The Datalogic M3410-010210-00604 includes a 3-year factory warranty, compared to the Zebra DS9308-SR00004ZTWW's 1-year warranty. For a multi-year deployment where replacement cost and downtime risk must be minimized without purchasing extended service contracts, the Datalogic's warranty term is a concrete advantage as stated in the available specifications.
Can either scanner connect to older POS terminals that use serial RS-232 ports?
Yes, but only the Datalogic M3410-010210-00604 lists RS-232 as a supported interface alongside USB. The Zebra DS9308-SR00004ZTWW specifies wired USB connectivity only. Buyers integrating into POS environments with legacy serial infrastructure should select the Datalogic; the Zebra is limited to USB-capable host terminals.
