Zebra DS9308-DL00004ZZNA vs Datalogic M3410-010210-00604: Specification Comparison
Both the Zebra DS9308-DL00004ZZNA and the Datalogic Magellan 3410VSi (M3410-010210-00604) are wired, countertop presentation barcode scanners with 1D/2D area imagers, IP52 environmental ratings, and USB connectivity—making them direct cross-shop candidates for retail POS, hospitality, and high-volume checkout deployments. This comparison evaluates them across scan performance and symbology coverage, physical build and environmental durability, and connectivity plus integration flexibility to help integrators and IT buyers select the right unit for their environment.
In This Guide
- Which scanner delivers faster throughput and broader symbology coverage at the checkout lane?
- How do these scanners compare on physical ruggedness, drop tolerance, and operating environment?
- Which unit offers more flexible wired connectivity and POS system integration options?
- Which should you choose: the DS9308-DL00004ZZNA or the M3410-010210-00604?
- Side-by-Side Specs
- FAQ
Which scanner delivers faster throughput and broader symbology coverage at the checkout lane?

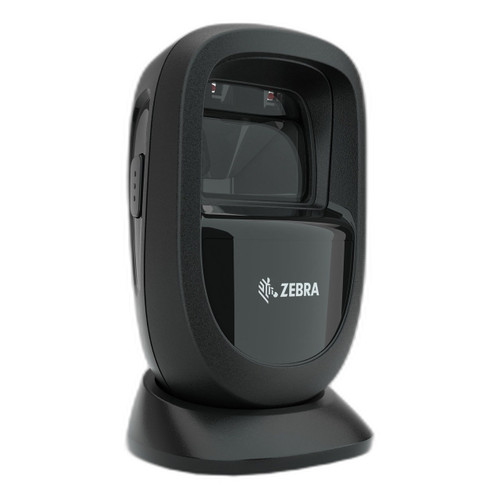

The Zebra DS9308-DL00004ZZNA specifies a scan rate of 120.1 inches per second via its 2D area imager. Supported symbologies are explicitly listed as QR Code, Data Matrix, PDF417 (2D) and Code 128, Code 39, UPC, and EAN (1D). A notable differentiator is the DL (Driver License) parsing feature enabled on this SKU, making it suitable for age-verification or identity-capture workflows at the counter.
The Datalogic M3410-010210-00604 lists its scan type as a 1D/2D area imager with a wide field of view and omnidirectional scan pattern. Supported symbologies are stated as QR Code, Data Matrix, PDF417 (2D) and Code 128, Code 39, UPC, and EAN (1D)—matching the Zebra's coverage. No numerical scan rate (in/sec or scans/sec) is provided in the supplied specifications for the Datalogic unit, so a direct throughput comparison on that metric cannot be made.
How do these scanners compare on physical ruggedness, drop tolerance, and operating environment?
The Zebra DS9308-DL00004ZZNA carries an IP52 dust and splash rating and a documented drop rating of 1.5 meters (4.9 feet). Operating temperature is specified at 0°C to 50°C (32°F to 122°F), with storage rated from -40°C to 70°C. The unit weighs 318 g (11.2 oz) and is host-powered via USB at 4.5–5.5 VDC. Available colors are Alpine White and Midnight Black.
The Datalogic M3410-010210-00604 also carries an IP52 rating. Physical dimensions are provided as 152 × 137 × 94 mm (6.0 × 5.4 × 3.7 in) and weight is listed as approximately 350 g (1.32 lb per spec field). No drop rating is stated in the supplied specifications for the Datalogic unit. Operating temperature range and storage temperature are not provided in the available data, so environment-envelope comparisons beyond IP52 cannot be made.
Which unit offers more flexible wired connectivity and POS system integration options?
The Zebra DS9308-DL00004ZZNA connects via wired USB with HID and Serial emulation modes. No RS-232 interface is listed in the provided specifications. The single-pass scan pattern and presentation (hands-free) form factor suit fixed-mount retail and hospitality counters. The DL-parsing feature adds a software-layer integration capability for systems that ingest structured driver license data.
The Datalogic M3410-010210-00604 offers dual wired connectivity: USB and RS-232. The RS-232 option extends compatibility to legacy POS terminals and industrial systems that do not support USB HID. The vertical presentation form factor is designed for on-counter mounting. No driver license parsing or equivalent software-layer feature is mentioned in the supplied specifications.
Which should you choose: the DS9308-DL00004ZZNA or the M3410-010210-00604?
Our take: The DS9308-DL00004ZZNA is the stronger choice when the deployment requires driver license parsing, a documented 120.1 in/sec scan rate, or validated drop tolerance of 1.5 m. Zebra specifies a concrete throughput figure and a 1.5 m drop rating that Datalogic's specs do not match with equivalent data—two critical gaps for high-volume or counter-abuse environments. The Zebra's warranty is 1 year versus the Datalogic's 3-year factory warranty, a meaningful delta favoring Datalogic for total cost of ownership over a multi-year deployment. The M3410-010210-00604 adds RS-232 connectivity absent from the Zebra, making it the correct pick for sites running legacy serial POS hardware. Choose the Zebra DS9308-DL00004ZZNA for ID-verification-heavy or high-throughput USB-only retail lanes; choose the Datalogic M3410-010210-00604 for mixed USB/RS-232 environments or where a longer warranty term drives procurement decisions.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Zebra DS9308-DL00004ZZNA | Datalogic M3410-010210-00604 |
|---|---|---|
| Product Type | Presentation Scanner | Vertical Presentation Scanner |
| Scan Engine | 2D Area Imager (1D/2D) | 2D Area Imager (1D/2D) |
| Scan Rate | 120.1 in/sec | — |
| Scan Pattern | Single-pass | Wide field of view; omnidirectional |
| Symbologies 1D | Code 128; Code 39; UPC; EAN | Code 128; Code 39; UPC; EAN |
| Symbologies 2D | QR Code; Data Matrix; PDF417 | QR Code; Data Matrix; PDF417 |
| Connectivity | USB (HID / Serial emulation) | USB; RS-232 |
| IP Rating | IP52 | IP52 |
| Drop Rating | 1.5 m (4.9 ft) | — |
| Operating Temp | 0°C to 50°C (32°F to 122°F) | — |
| Storage Temp | -40°C to 70°C (-40°F to 158°F) | — |
| Weight | 318 g (11.2 oz) | ~350 g (1.32 lb) |
| Dimensions | — | 152 x 137 x 94 mm (6.0 x 5.4 x 3.7 in) |
| Input Voltage | 4.5–5.5 VDC (host powered) | — |
| Driver License Parsing | Yes (DL SKU) | — |
| Warranty | 1 year | 3 years |
Frequently Asked Questions
Which should you choose: the DS9308-DL00004ZZNA or the M3410-010210-00604?
The DS9308-DL00004ZZNA is the stronger choice when the deployment requires driver license parsing, a documented 120.1 in/sec scan rate, or validated drop tolerance of 1.5 m. Zebra specifies a concrete throughput figure and a 1.5 m drop rating that Datalogic's specs do not match with equivalent data—two critical gaps for high-volume or counter-abuse environments. The Zebra's warranty is 1 year versus the Datalogic's 3-year factory warranty, a meaningful delta favoring Datalogic for total cost of ownership over a multi-year deployment. The M3410-010210-00604 adds RS-232 connectivity absent from the Zebra, making it the correct pick for sites running legacy serial POS hardware. Choose the Zebra DS9308-DL00004ZZNA for ID-verification-heavy or high-throughput USB-only retail lanes; choose the Datalogic M3410-010210-00604 for mixed USB/RS-232 environments or where a longer warranty term drives procurement decisions.
Is the DS9308-DL00004ZZNA or M3410-010210-00604 better for a liquor store or pharmacy needing driver license scanning?
The Zebra DS9308-DL00004ZZNA. This SKU has DL (Driver License) parsing explicitly enabled, which structures the data from a scanned driver license barcode for age-verification or identity-capture workflows. No equivalent feature is mentioned in the Datalogic M3410-010210-00604 specifications.
Which scanner works with older POS terminals that only have RS-232 serial ports?
The Datalogic M3410-010210-00604. It lists both USB and RS-232 as supported interfaces. The Zebra DS9308-DL00004ZZNA specifications only list wired USB (HID/Serial emulation); RS-232 is not specified for that unit.
Which unit has the longer warranty, and does it matter for a multi-lane retail rollout?
The Datalogic M3410-010210-00604 carries a 3-year factory warranty versus the Zebra DS9308-DL00004ZZNA's 1-year warranty. For a multi-lane rollout where service contract costs and scanner replacement cycles affect TCO, the Datalogic's longer warranty provides coverage for years two and three without an additional service agreement—a meaningful procurement consideration at scale.
