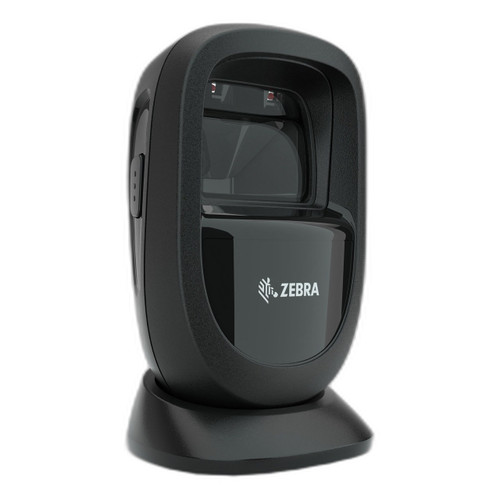

Zebra DS9308-DL00004ZCNA vs Datalogic M3410-010210-00604: Specification Comparison
Both the Zebra DS9308-DL00004ZCNA and the Datalogic Magellan 3410VSi (SKU M3410-010210-00604) are wired, hands-free presentation scanners designed for on-counter retail and POS deployment, each capable of reading 1D and 2D symbologies including QR Code, Data Matrix, and PDF417. This comparison examines the three most decision-relevant dimensions for this product class: scan capability and symbology coverage, physical durability and environmental ratings, and interface flexibility and integration options.
In This Guide
- How do the scan engines and symbology coverage compare between the DS9308-DL00004ZCNA and the M3410-010210-00604?
- Which scanner offers stronger physical durability and environmental protection for demanding retail or warehouse environments?
- How do the two scanners differ in interface options, power, and POS or system integration?
- Which should you choose: the DS9308-DL00004ZCNA or the M3410-010210-00604?
- Side-by-Side Specs
- FAQ
How do the scan engines and symbology coverage compare between the DS9308-DL00004ZCNA and the M3410-010210-00604?
The Zebra DS9308-DL00004ZCNA uses a 1D/2D scan engine operating in a single-pass scan pattern. Its documented symbologies span 1D codes (Code 128, Code 39, UPC, EAN) and 2D codes (QR Code, Data Matrix, PDF417). The single-pass pattern implies a fixed, linear decode path typical of slot-style or fixed-beam imagers.
The Datalogic M3410-010210-00604 specifies a 2D Area Imager engine with a wide field-of-view and omnidirectional scan pattern. It covers the same named symbology families: 1D linear codes including Code 128, Code 39, UPC, and EAN, plus 2D formats QR Code, Data Matrix, and PDF417. The omnidirectional area imager approach is generally more forgiving of barcode orientation and partial damage, which can matter in high-throughput lanes where items are passed quickly. Neither datasheet specifies a minimum print contrast specification or decode rate (scans per second) in the provided specs, so decode speed cannot be quantitatively compared here.
Which scanner offers stronger physical durability and environmental protection for demanding retail or warehouse environments?
Both units carry an IP52 ingress-protection rating, meaning both are rated against solid particle ingress greater than 12.5 mm and protected against vertically dripping water. Neither offers a higher sealing rating based on the provided specifications.
The Zebra DS9308-DL00004ZCNA adds an explicitly documented 1.5 m drop rating, providing a concrete benchmark for impact resilience in environments where the unit may be dislodged from a counter or mounting surface. The Datalogic M3410-010210-00604 does not include a drop rating in the provided specifications, so no equivalent benchmark can be cited for it.
Operating temperature for the Zebra unit is specified at 0°C to 50°C (32°F to 122°F), with storage from -40°C to 70°C. The Datalogic unit does not include operating or storage temperature ranges in the provided specifications, preventing a direct environmental envelope comparison.
How do the two scanners differ in interface options, power, and POS or system integration?
The Zebra DS9308-DL00004ZCNA is specified with wired USB connectivity only. It is host-powered via USB, operating at 4.5 to 5.5 VDC, eliminating the need for a separate power supply in standard USB-connected POS environments. It also outputs data in a DL parsing format, which is relevant for driver-license-reading applications in age-verification or identity-capture workflows at retail or hospitality POS.
The Datalogic M3410-010210-00604 supports dual wired interfaces: USB and RS-232. RS-232 connectivity extends compatibility to legacy POS terminals, kiosk controllers, and embedded systems that do not expose USB host ports. No power input voltage range is specified for the Datalogic unit in the provided specs.
Mount type documentation differs as well: the Zebra unit lists Wall, Recessed, and Rack mounting options, while the Datalogic unit lists Wall mounting only. The Datalogic's documented dimensions (152 x 137 x 94 mm, 0.6 kg) and vertical presentation form factor indicate an on-counter upright orientation optimized for passing items in front of the window.
Which should you choose: the DS9308-DL00004ZCNA or the M3410-010210-00604?
Our take: The DS9308-DL00004ZCNA is the stronger choice when USB-only POS connectivity, driver-license parsing output, and a documented drop rating are the primary requirements. It carries a verified 1.5 m drop rating versus no drop rating on record for the M3410-010210-00604, an explicit 0°C–50°C operating temperature range versus no equivalent Datalogic spec, and a DL parsing output format that is purpose-built for age-verification and identity-capture workflows. Conversely, the M3410-010210-00604 is the stronger choice when RS-232 legacy interface support is required for older POS terminals, when an omnidirectional area imager scan pattern is preferred for high-speed multi-orientation barcode capture, and when a longer 3-year factory warranty versus the Zebra's 1-year warranty is a procurement or TCO consideration. Both units share IP52 sealing and equivalent documented symbology families.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Zebra DS9308-DL00004ZCNA | Datalogic M3410-010210-00604 |
|---|---|---|
| Product Type | Presentation Scanner | Vertical Presentation Scanner |
| Scan Engine | 1D/2D | 2D Area Imager |
| Scan Pattern | Single-pass | Wide field of view; omnidirectional |
| Symbologies 1D | Code 128, Code 39, UPC, EAN | Code 128, Code 39, UPC, EAN |
| Symbologies 2D | QR Code, Data Matrix, PDF417 | QR Code, Data Matrix, PDF417 |
| IP Rating | IP52 | IP52 |
| Drop Rating | 1.5 m | — |
| Operating Temp | 0°C to 50°C (32°F to 122°F) | — |
| Storage Temp | -40°C to 70°C (-40°F to 158°F) | — |
| Connectivity | USB (wired) | USB, RS-232 (wired) |
| Power Input | 4.5–5.5 VDC (host-powered) | — |
| DL Parsing Output | Yes | — |
| Weight | 318 g (11.2 oz) | 600 g (1.3 lb) |
| Dimensions | — | 152 x 137 x 94 mm (6.0 x 5.4 x 3.7 in) |
| Mount Type | Wall, Recessed, Rack | Wall |
| Warranty | 1 year | 3 years |
Frequently Asked Questions
Which should you choose: the DS9308-DL00004ZCNA or the M3410-010210-00604?
The DS9308-DL00004ZCNA is the stronger choice when USB-only POS connectivity, driver-license parsing output, and a documented drop rating are the primary requirements. It carries a verified 1.5 m drop rating versus no drop rating on record for the M3410-010210-00604, an explicit 0°C–50°C operating temperature range versus no equivalent Datalogic spec, and a DL parsing output format that is purpose-built for age-verification and identity-capture workflows. Conversely, the M3410-010210-00604 is the stronger choice when RS-232 legacy interface support is required for older POS terminals, when an omnidirectional area imager scan pattern is preferred for high-speed multi-orientation barcode capture, and when a longer 3-year factory warranty versus the Zebra's 1-year warranty is a procurement or TCO consideration. Both units share IP52 sealing and equivalent documented symbology families.
Is the DS9308-DL00004ZCNA or the M3410-010210-00604 better for a legacy POS terminal that only has RS-232 ports?
The Datalogic M3410-010210-00604 is the only one of the two with a documented RS-232 interface. The Zebra DS9308-DL00004ZCNA is specified for USB only, so it cannot connect directly to an RS-232-only terminal without an adapter not covered in these specs.
Which scanner has the longer warranty, and does it matter for a multi-lane retail deployment?
The Datalogic M3410-010210-00604 carries a 3-year factory warranty versus the Zebra DS9308-DL00004ZCNA's 1-year warranty. For a multi-lane deployment where replacement logistics and downtime costs are a concern, the Datalogic's warranty period is three times longer based on the provided specifications.
Does either scanner support driver-license or ID parsing for age-verification applications?
The Zebra DS9308-DL00004ZCNA explicitly specifies a DL parsing data output format, indicating it is designed to parse driver-license barcode data for POS or inventory systems. The Datalogic M3410-010210-00604's provided specifications do not mention DL parsing or ID-verification output modes, so this capability cannot be confirmed for that unit from available spec data.
