Zebra DS4608 vs Datalogic GBT4500-BK-BTK1DRA: Specification Comparison
The Zebra DS4608-HD00007ZZWW and Datalogic Gryphon I GBT4500-BK-BTK1DRA are both 2D area-imager handheld barcode scanners aimed at retail and light-industrial point-of-sale or inventory environments. The comparison covers decode capability and image resolution, physical build and environmental tolerance, and connectivity plus mobility features — the three axes that most directly drive a purchasing decision between corded/tethered 2D scanners and wireless Bluetooth-capable alternatives at this tier.
In This Guide
- Which scanner offers broader decode capability and higher image resolution?
- How do the two scanners compare on physical durability and operating environment?
- Which scanner is better suited for wireless or multi-interface deployments?
- Which should you choose: the DS4608 or the GBT4500-BK-BTK1DRA?
- Side-by-Side Specs
- FAQ
Which scanner offers broader decode capability and higher image resolution?

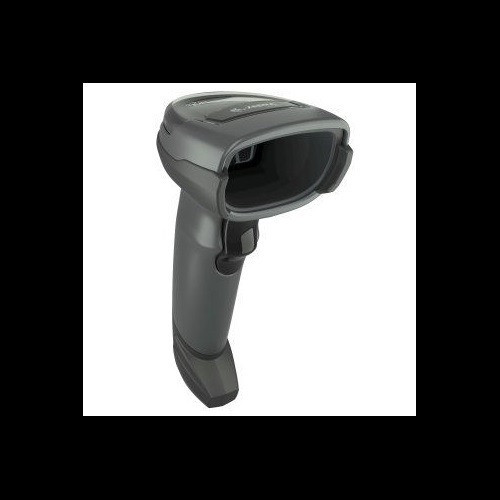

The Zebra DS4608 ships in a High Density (HD) configuration with a 1,280 × 800-pixel CMOS sensor. It specifies a minimum element resolution of 2.0 mil for Code 39 and 4.0 mil for DataMatrix, a skew tolerance of ±60°, pitch tolerance of ±60°, and full 360° roll tolerance, making it suited to dense or small-format codes. Its 1D symbology list explicitly includes Code 11, MSI Plessey, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32, plus OCR-A, OCR-B, MICR, and US Currency — symbologies the Datalogic spec does not enumerate.
The Datalogic GBT4500 is described as a 2D area imager reading 1D, 2D, postal, and composite codes. Its documented symbologies include QR Code, Data Matrix, PDF417, Code 39, UPC, and EAN. No pixel resolution, minimum element size, or angular tolerance figures are provided in the available specifications. Buyers requiring decode of dense or specialty symbologies (GS1 DataBar, OCR, MICR, postal) have confirmed data only for the Zebra unit.
How do the two scanners compare on physical durability and operating environment?
Both units carry an IP52 ingress-protection rating, meaning equivalent resistance to dust contact and light drip water. The Zebra DS4608 is rated for drops to 6.0 ft (1.8 m) onto concrete and 2,000 tumbles in a 0.5 m tumbler. It operates from 0 °C to 50 °C (32 °F to 122 °F) and stores from −40 °C to 70 °C (−40 °F to 158 °F). Ambient light immunity is specified at 0–107,000 lux, and ESD immunity is ±15 kV air / ±8 kV direct and indirect.
The Datalogic GBT4500 spec sheet does not publish a drop rating, tumble rating, operating temperature range, storage temperature range, ambient light range, or ESD immunity figures. On the sealing metric alone both are equal at IP52; on every other durability dimension the Zebra provides verifiable numbers whereas the Datalogic data is absent.
Which scanner is better suited for wireless or multi-interface deployments?
The Datalogic GBT4500-BK-BTK1DRA is a Bluetooth model (Bluetooth 4.0) with a 3,250 mAh rechargeable battery and inductive charging support via a base station, enabling fully cordless operation. Its documented interfaces are USB, RS-232, and Keyboard Wedge. The 'BTK1' designator in the SKU confirms the Bluetooth kit configuration.
The Zebra DS4608, as spec'd here, is a corded scanner. Its listed host interfaces are USB, RS-232, and TGCS (IBM) 46xx over RS485. No Bluetooth radio, battery, or wireless capability is described in the provided specifications. For environments requiring cable-free scanning or mobile cart use, only the Datalogic unit provides that functionality based on the supplied data.
Which should you choose: the DS4608 or the GBT4500-BK-BTK1DRA?
Our take: The DS4608 is the stronger choice when decode breadth, resolution, and documented durability are the primary criteria. Its 1,280 × 800-pixel sensor resolves down to 2.0 mil on Code 39 versus no published resolution figure for the GBT4500, and it covers OCR-A/B, MICR, GS1 DataBar, and US Currency symbologies absent from the Datalogic spec list. On durability, the DS4608 backs its IP52 rating with a 6 ft concrete-drop spec and 2,000-tumble rating; the GBT4500 provides neither figure. However, the GBT4500-BK-BTK1DRA is the only wireless option here — its Bluetooth 4.0 radio, 3,250 mAh battery, and inductive charging base make it the sole viable candidate for untethered or cart-mounted workflows. Choose the DS4608 for fixed-mount or tethered POS lines requiring dense-code or OCR reads; choose the GBT4500 for cordless mobility where decode depth is secondary.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Zebra DS4608 | Datalogic GBT4500-BK-BTK1DRA |
|---|---|---|
| Product Family | DS4608 (High Density) | Gryphon I 4500 |
| Scan Type | 2D Area Imager | 2D Area Imager |
| Image Sensor Resolution | 1,280 × 800 pixels | — |
| Min. Element Resolution (Code 39) | 2.0 mil | — |
| Min. Resolution (DataMatrix) | 4.0 mil | — |
| Skew / Pitch Tolerance | ±60° / ±60° | — |
| Roll Tolerance | 0°–360° | — |
| Host Interfaces | USB, RS-232, TGCS (IBM) 46xx/RS-485 | USB, RS-232, Keyboard Wedge |
| Wireless | None specified | Bluetooth 4.0 |
| Battery | Not applicable (corded) | 3,250 mAh, inductive charging |
| IP Rating | IP52 | IP52 |
| Drop Specification | 6.0 ft (1.8 m) to concrete | — |
| Tumble Specification | 2,000 tumbles / 0.5 m | — |
| Operating Temperature | 0 °C to 50 °C | — |
| Weight | 161.9 g (5.7 oz) | 222 g (0.49 lbs) |
| Warranty | Five Years | 5-Year Limited |
Frequently Asked Questions
Which should you choose: the DS4608 or the GBT4500-BK-BTK1DRA?
The DS4608 is the stronger choice when decode breadth, resolution, and documented durability are the primary criteria. Its 1,280 × 800-pixel sensor resolves down to 2.0 mil on Code 39 versus no published resolution figure for the GBT4500, and it covers OCR-A/B, MICR, GS1 DataBar, and US Currency symbologies absent from the Datalogic spec list. On durability, the DS4608 backs its IP52 rating with a 6 ft concrete-drop spec and 2,000-tumble rating; the GBT4500 provides neither figure. However, the GBT4500-BK-BTK1DRA is the only wireless option here — its Bluetooth 4.0 radio, 3,250 mAh battery, and inductive charging base make it the sole viable candidate for untethered or cart-mounted workflows. Choose the DS4608 for fixed-mount or tethered POS lines requiring dense-code or OCR reads; choose the GBT4500 for cordless mobility where decode depth is secondary.
Is the DS4608 or GBT4500-BK-BTK1DRA better for a warehouse where staff walk the floor away from a fixed terminal?
The GBT4500-BK-BTK1DRA is the only option for untethered floor use. It includes a Bluetooth 4.0 radio, a 3,250 mAh battery, and inductive charging via base station. The DS4608 as specified is a corded scanner with no wireless capability listed.
Which scanner can read specialty codes like OCR, MICR, or GS1 DataBar?
Only the Zebra DS4608 lists those symbologies in its published specifications (OCR-A, OCR-B, MICR, US Currency, GS1 DataBar, and Base 32). The Datalogic GBT4500 spec enumerates QR Code, Data Matrix, PDF417, Code 39, UPC, and EAN — specialty symbologies are not confirmed.
Both scanners are rated IP52 — does that mean they offer the same protection in a dusty retail back-room?
Both carry identical IP52 ratings (limited dust contact protection, drip resistance), so ingress protection is equivalent. However, the Zebra DS4608 additionally publishes a 6 ft concrete-drop rating and a 2,000-tumble specification. The Datalogic GBT4500 provides no published drop or tumble figures, so comparative impact durability cannot be verified from available specs.
