How do the DS3608 and GBT4500 compare on decode capability and optical performance?

The Zebra DS3608 ships in a High Density (HD) variant with a 1,280 x 800 pixel image sensor, a 42° horizontal by 28° vertical field of view, and a hyper-red 660 nm LED illuminator. Specified decode ranges for Code 128 run from 1.3–6.7 in. at 5 mil up to 1.7–60 in. at 40 mil, and Datamatrix from 1.4–8.6 in. at 10 mil. The scanner tolerates ±60° skew, ±60° pitch, and ±360° roll, and requires a minimum print contrast of 15%. Its 1D symbology list includes Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, and Base 32.

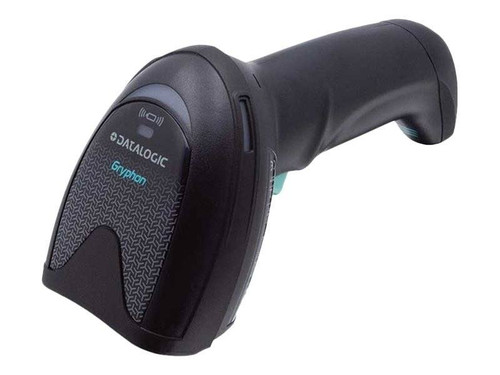

The Datalogic GBT4500 is specified as a 2D area imager reading 1D, 2D, postal, and composite codes, with explicitly listed symbologies including QR Code, Data Matrix, PDF417, Code 39, UPC, and EAN. The spec sheet does not provide image sensor resolution, field-of-view angles, minimum print contrast, decode range distances, or angular tolerance (skew/pitch/roll) figures for the GBT4500. Green Spot good-read feedback is noted for the GBT4500; the DS3608 uses LEDs, a beeper, vibration, and a direct decode indicator. Buyers requiring precisely specified decode distances or dense-barcode optics will find the DS3608's published data more actionable for site-qualification.

Which scanner is better suited to harsh operating environments and physical abuse?

The Zebra DS3608 carries IP65 and IP67 sealing on the scanner body and IP65 on the cradle, meaning it is fully dust-tight and rated for immersion up to 1 m (IP67) as well as sustained water-jet exposure (IP65). It withstands multiple 8.0 ft. (2.4 m) drops to concrete and 5,000 tumbles at 3.3 ft. (1 m). The corded operating temperature range is -30 °C to +50 °C; cordless is -20 °C to +50 °C. Storage extends from -40 °C to +70 °C. ESD protection is rated at ±25 kV air discharge and ±10 kV direct/indirect discharge.

The Datalogic GBT4500 carries an IP52 rating, which provides protection against dust ingress sufficient to prevent harmful deposits and against dripping water at a 15° tilt — substantially less protection than the DS3608's IP65/67. No drop-test height, tumble count, operating temperature range, storage temperature, or ESD specification is provided in the GBT4500 data. The product is described as suited to retail and light industrial environments, which aligns with its IP52 rating. For warehouse, manufacturing, or outdoor applications where liquid exposure, drops from height, and extreme temperatures are likely, the DS3608's published ruggedness metrics are materially superior.

How do the two scanners differ in battery life, power specifications, and wireless connectivity?

The Zebra DS3608 uses a PowerPrecision+ 3,100 mAh Li-Ion rechargeable battery and is rated for 70,000+ scans per full charge. Host-powered input voltage is 4.5–5.5 VDC; external power is 11.4–12.6 VDC. Operating current is 340 mA typical, standby 100 mA typical. Bluetooth is Class 1, Version 4.0 (LE), supporting serial port and HID profiles, with a specified wireless range of up to 300 ft. (100 m) and data rates of 3 Mbit/s for Classic Bluetooth and 1 Mbit/s for Low Energy.

The Datalogic GBT4500 uses a 3,250 mAh battery — 150 mAh larger than the DS3608's pack — but no scan-count-per-charge figure is provided in the specification data. Bluetooth is listed as version 4.0 with a base station and inductive charging noted. No wireless range distance, Bluetooth class, data rate, input voltage range, or operating/standby current figure is specified for the GBT4500. The DS3608's 70,000+ scan rating and 300 ft. range are the only directly comparable quantified values in these two dimensions; the GBT4500 lacks equivalent published metrics to allow a like-for-like power or range comparison.

Which should you choose: the DS3608 or the GBT4500-BK-BTK1DRA?

Our take: The DS3608 is the stronger choice when the deployment environment involves physical shock, liquid exposure, temperature extremes, or high-density barcode reads. Its IP65/IP67 sealing versus the GBT4500's IP52 represents a meaningful gap in water and dust protection; its 8.0 ft. concrete drop spec and 5,000-tumble rating have no published equivalent on the GBT4500. The DS3608 also provides 70,000+ scans per charge and a specified Bluetooth range of 300 ft. (100 m), compared to no published scan count and no range figure for the GBT4500. The GBT4500 carries a marginally larger 3,250 mAh battery versus the DS3608's 3,100 mAh, offers a longer 5-year warranty versus the DS3608's 3-year warranty, and weighs 222 g versus the DS3608's 305 g corded — advantages relevant in light-duty, extended-handling retail settings. Choose the DS3608 for rugged industrial or warehouse use; consider the GBT4500 for retail point-of-sale or light-duty environments where warranty length and ergonomic weight matter more than environmental hardening.

Side-by-Side Comparison

Spec-for-spec, from manufacturer data.
