Sato WT302-403NN-EX1-2 vs Zebra ZT11143-D01000FZ: Specification Comparison
Both the Sato WS4 WT302-403NN-EX1-2 and the Zebra ZT11143-D01000FZ are 300 DPI desktop thermal label printers targeting fixed-station label and shipping operations. The Sato supports both direct thermal and thermal transfer printing modes, while the Zebra is direct thermal only. This comparison evaluates the two on print capability and media handling, connectivity and integration, and physical footprint and environmental suitability—the three axes most relevant to distribution center, fulfillment, and light industrial label printing buyers.
In This Guide
- Which printer offers broader print capability and media handling flexibility?
- How do the two printers differ in connectivity and system integration options?
- Which unit is better suited to the physical and environmental demands of the deployment site?
- Which should you choose: the WT302-403NN-EX1-2 or the ZT11143-D01000FZ?
- Side-by-Side Specs
- FAQ
Which printer offers broader print capability and media handling flexibility?
The Sato WT302-403NN-EX1-2 supports both direct thermal and thermal transfer printing at 300 DPI, with a rated print speed of 6 inches per second and a maximum print width of 4.09 inches. It accommodates media widths from 1 inch to 4.65 inches and roll stock up to 5 inches in outer diameter. Thermal transfer capability allows ribbon-based printing for applications requiring greater label durability or resistance to heat, chemicals, or UV exposure, using ribbons up to 984 feet in length.

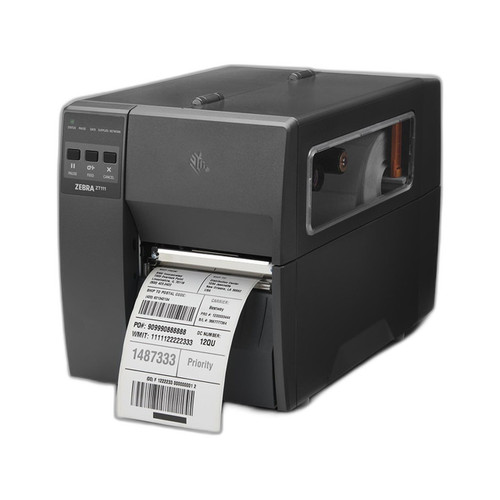

The Zebra ZT11143-D01000FZ is specified as direct thermal only at 300 DPI. No print speed, maximum print width, media width range, or ribbon capacity is provided in the available specifications. Direct thermal output eliminates ribbon consumables but limits label longevity in harsh storage or exposure environments. The Zebra's media type is listed as roll label stock with an integrated tear-off feature. Buyers requiring thermal transfer output cannot be served by the ZT11143-D01000FZ based on available specs.
How do the two printers differ in connectivity and system integration options?
The Sato WT302-403NN-EX1-2 provides Ethernet, Wi-Fi, Bluetooth, and USB connectivity. The inclusion of Wi-Fi allows wireless placement without network cable runs, which can reduce installation complexity in environments where fixed Ethernet drops are limited. Bluetooth adds a secondary wireless option for mobile host pairing. Memory is specified at 16 MB Flash and 32 MB SDRAM, with 16 MB of user storage for on-board label format retention.
The Zebra ZT11143-D01000FZ lists Ethernet, Bluetooth (BTLE), and USB as its connectivity options. The specification also references RS-232 in the product bullet content, suggesting a legacy serial port, though this does not appear in the structured spec fields—buyers should confirm via the datasheet. Wi-Fi is not listed for the Zebra in the provided specifications. No memory figures are provided for the Zebra. For environments already standardized on Zebra's ZPL language or legacy WMS with RS-232 interfaces, the Zebra's integration posture may be advantageous; the Sato's Wi-Fi adds deployment flexibility the Zebra does not list.
Which unit is better suited to the physical and environmental demands of the deployment site?
The Sato WT302-403NN-EX1-2 has documented physical dimensions of 8.69 inches wide by 10.96 inches deep by 7.38 inches tall, weighing 5.46 lbs (2.48 kg). Its operating temperature range is specified as 41°F to 104°F (5°C to 40°C), which covers typical indoor distribution and office environments but excludes cold-chain or unheated warehouse scenarios. Power input is AC 100–240V, 50/60Hz, supporting global voltage ranges.
No physical dimensions, weight, or operating temperature range are provided in the available specifications for the Zebra ZT11143-D01000FZ. Power is noted as AC 110–240V in a US-market configuration. The form factor is described as desktop with integrated tear-off. Without dimensional and environmental data for the Zebra, a direct comparison on footprint or thermal tolerance cannot be made from the provided specs alone. Buyers with space-constrained workstations or non-standard temperature environments should consult the Zebra datasheet before specifying.
Which should you choose: the WT302-403NN-EX1-2 or the ZT11143-D01000FZ?
Our take: The WT302-403NN-EX1-2 is the stronger choice when dual-mode printing, Wi-Fi connectivity, or documented environmental specifications are required. Three concrete spec deltas support this: first, the Sato supports both direct thermal and thermal transfer printing, while the Zebra is direct thermal only—critical for durable labels in chemical, outdoor, or long-shelf-life applications. Second, the Sato adds Wi-Fi to its connectivity stack (Ethernet, Wi-Fi, Bluetooth, USB), whereas the Zebra's provided specs list only Ethernet, Bluetooth (BTLE), and USB, with no Wi-Fi listed. Third, the Sato's operating temperature range (41°F–104°F), weight (5.46 lbs), and footprint (8.69" × 10.96" × 7.38") are fully documented; none of these are available in the Zebra's provided specifications. The ZT11143-D01000FZ may suit buyers already standardized on Zebra's ZPL ecosystem or requiring RS-232 legacy integration, but those claims require datasheet verification.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Sato WT302-403NN-EX1-2 | Zebra ZT11143-D01000FZ |
|---|---|---|
| Brand | Sato | Zebra |
| MPN | WT302-403NN-EX1-2 | ZT11143-D01000FZ |
| Print Technology | Direct Thermal / Thermal Transfer | Direct Thermal Only |
| Resolution | 300 DPI | 300 DPI |
| Print Speed | 6 ips | — |
| Max Print Width | 4.09 inches | — |
| Media Width Range | 1" to 4.65" | — |
| Media Roll Max OD | 5 inches | — |
| Ribbon Support | Yes — up to 984 ft | No |
| Connectivity | Ethernet, Wi-Fi, Bluetooth, USB | Ethernet, Bluetooth (BTLE), USB |
| Wi-Fi | Yes | — |
| Flash Memory | 16 MB | — |
| SDRAM | 32 MB | — |
| User Storage | 16 MB | — |
| Operating Temperature | 41°F to 104°F (5°C to 40°C) | — |
| Power Input | AC 100–240V, 50/60Hz | AC 110–240V (US Configuration) |
| Weight | 5.46 lbs (2.48 kg) | — |
| Dimensions (W×D×H) | 8.69" × 10.96" × 7.38" | — |
| Form Factor | Desktop | Desktop with Integrated Tear-Off |
| Warranty | 1-year | 1-year |
Frequently Asked Questions
Which should you choose: the WT302-403NN-EX1-2 or the ZT11143-D01000FZ?
The WT302-403NN-EX1-2 is the stronger choice when dual-mode printing, Wi-Fi connectivity, or documented environmental specifications are required. Three concrete spec deltas support this: first, the Sato supports both direct thermal and thermal transfer printing, while the Zebra is direct thermal only—critical for durable labels in chemical, outdoor, or long-shelf-life applications. Second, the Sato adds Wi-Fi to its connectivity stack (Ethernet, Wi-Fi, Bluetooth, USB), whereas the Zebra's provided specs list only Ethernet, Bluetooth (BTLE), and USB, with no Wi-Fi listed. Third, the Sato's operating temperature range (41°F–104°F), weight (5.46 lbs), and footprint (8.69" × 10.96" × 7.38") are fully documented; none of these are available in the Zebra's provided specifications. The ZT11143-D01000FZ may suit buyers already standardized on Zebra's ZPL ecosystem or requiring RS-232 legacy integration, but those claims require datasheet verification.
Can either printer handle thermal transfer ribbons for longer-lasting labels?
Yes, but only the Sato WT302-403NN-EX1-2. It explicitly supports thermal transfer mode with ribbons up to 984 feet in length. The Zebra ZT11143-D01000FZ is specified as direct thermal only, meaning it prints without ribbons but cannot produce ribbon-based labels. If label durability in harsh environments is a requirement, the Sato is the only confirmed option between these two.
Which printer is easier to deploy wirelessly on a shop floor or warehouse network?
The Sato WT302-403NN-EX1-2 includes Wi-Fi in its documented connectivity options alongside Ethernet, Bluetooth, and USB, enabling wireless deployment without a dedicated Ethernet drop. The Zebra ZT11143-D01000FZ does not list Wi-Fi in its provided specifications. Based solely on the available specs, the Sato offers greater wireless flexibility for wire-free placement.
Is the Zebra ZT11143-D01000FZ a good fit for an existing Zebra ZPL-based WMS environment?
Possibly. The ZT11143-D01000FZ is a Zebra-branded 300 DPI direct thermal desktop printer, and Zebra devices typically use ZPL (Zebra Programming Language), which integrates natively with many WMS and ERP platforms. However, language compatibility is not stated in the provided specifications. Buyers should confirm ZPL support and any RS-232 serial port presence directly via the Zebra datasheet before specifying for a legacy or ZPL-dependent workflow.
