Pelco SRXP4-3V29-EBT-IR vs Pelco SRXV2-2V13-EBT-IRWL: Specification Comparison

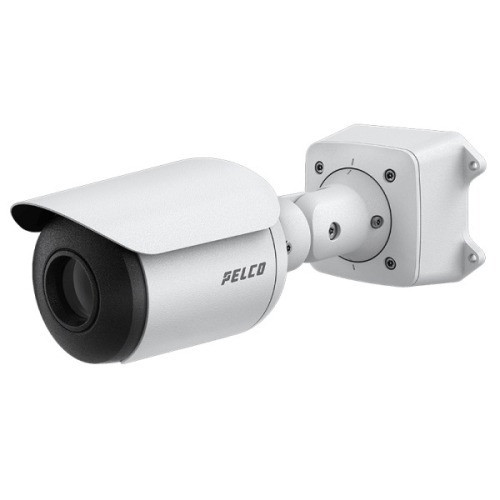

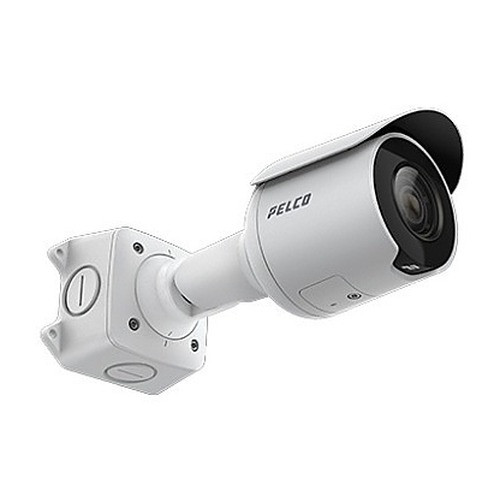

Both the Pelco SRXP4-3V29-EBT-IR (Sarix Pro 4) and the SRXV2-2V13-EBT-IRWL (Sarix Value 2) are outdoor 2MP fixed bullet cameras sharing the same sensor class, PoE Class 3 power, IK09 vandal resistance, and IP66 weatherproofing. A buyer evaluating either is choosing between Pelco's higher-tier Pro 4 platform and the entry-tier Value 2 line for perimeter or area surveillance. The comparison is valid: same resolution, same form factor, same manufacturer, meaningfully different feature sets.
In This Guide
How do the imaging specs compare?
Both cameras use a 1/2.8-inch progressive-scan CMOS sensor at 1920×1080 (2MP). The SRXP4-3V29-EBT-IR delivers a 60 fps maximum frame rate versus 30 fps on the SRXV2-2V13-EBT-IRWL — a meaningful delta for capturing fast motion or running high-frame-rate forensic streams. The Pro 4 also carries a 130 dB SureVision WDR rating versus 120 dB on the Value 2, a 10 dB advantage in scenes with extreme contrast. Both cameras share an F1.4 aperture and reach 0 lux in IR mode; however, the Pro 4's color minimum illumination is rated at 0.01 lux versus 0.02 lux on the Value 2.
The lens offerings differ in range and design. The SRXP4-3V29-EBT-IR carries a 4.4–9.3 mm motorized varifocal lens spanning a 32–109° horizontal field of view. One specification field also lists a 3.4–10.5 mm focal length figure, creating an internal inconsistency in the provided data; buyers should confirm against Pelco's published datasheet. The SRXV2-2V13-EBT-IRWL is specified with a 2.7–13.5 mm varifocal lens with remote zoom, focus, and autofocus control — a wider zoom range on paper. The Value 2 also adds white-light illumination (dual 850 nm IR + white light) as a distinct illumination mode not present on the Pro 4, enabling full-color nighttime identification without ambient light.
What about installation and environment?
Both units are rated IP66 and IK09, carry PoE Class 3 (802.3af) power, and are designated for outdoor deployment with white housing. The SRXV2-2V13-EBT-IRWL specifies an operating temperature range of -40°C to +60°C; no operating temperature range is listed in the provided specifications for the SRXP4-3V29-EBT-IR. The Value 2 also holds NDAA Section 889 compliance as a listed approval; this compliance is not stated in the Pro 4 specifications provided. One source field for the Value 2 lists an IK10 impact rating, while the primary vandal rating field states IK09 — buyers should verify against the Pelco datasheet.
Mounting flexibility differs slightly. The Pro 4 specs list wall, ceiling, and pendant mount types. The Value 2 adds pole and corner mounting to that list. The Pro 4 dimensions are noted as approximately 294 mm × 126 mm × 104 mm (with camera assembly); the Value 2 lists multiple dimension sets (191.4 mm × 84.9 mm for the bullet housing configuration). The Pro 4 is listed at 0.81 kg; the Value 2 bullet configuration is listed at 540 g, making it lighter. The Value 2 also specifies an RJ-45 connector type explicitly; this connector detail is not listed for the Pro 4.
Which fits your VMS and analytics better?
ONVIF compliance is broader on the Pro 4: it supports Profile S, Profile T, Profile G, and Profile M. The Value 2 supports only Profile S and Profile T. Profile G (on-camera recording) and Profile M (metadata and analytics) support on the Pro 4 provides deeper integration with compliant VMS platforms for edge recording workflows and standardized analytics metadata exchange.
The SRXP4-3V29-EBT-IR includes a named Smart Analytics suite — Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, and Tamper Alert — directly in the provided specifications. The SRXV2-2V13-EBT-IRWL lists 'Analytics: Specifications' in the provided data without enumerating supported analytics functions, so edge analytics capabilities of the Value 2 cannot be confirmed from the specs provided. Both cameras support microSD edge storage and HTTPS encryption. Audio microphone support is stated for the Pro 4; no audio specification is listed for the Value 2. The Pro 4 carries 1 GB RAM and 512 MB Flash; the Value 2 carries 512 MB RAM and 256 MB Flash, which may affect buffer depth and on-camera processing capacity.
Which should you choose: the SRXP4-3V29-EBT-IR or the SRXV2-2V13-EBT-IRWL?
Our take: The SRXP4-3V29-EBT-IR is the stronger choice when frame rate, WDR performance, and edge analytics depth are priorities. It delivers 60 fps versus the Value 2's 30 fps — critical for capturing fast-moving subjects or feeding forensic review. Its 130 dB SureVision WDR outperforms the Value 2's 120 dB by 10 dB in high-contrast scenes, and its explicitly enumerated Smart Analytics (Person/Vehicle, Loitering, Beam Crossing, Crowd Detection) require no separate VMS license for those functions. The Pro 4 also covers ONVIF Profile G and Profile M, enabling standardized on-camera recording and metadata integration unavailable on the Value 2. Conversely, the SRXV2-2V13-EBT-IRWL is the more appropriate choice when a wider lens range (2.7–13.5 mm), white-light color nighttime identification, NDAA Section 889 compliance, a verified -40°C cold-weather rating, and lower unit cost are the governing requirements.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Pelco SRXP4-3V29-EBT-IR | Pelco SRXV2-2V13-EBT-IRWL |
|---|---|---|
| Series | Sarix Pro 4 | Sarix Value 2 |
| Resolution | 2MP (1920×1080) | 2MP (1920×1080) |
| Image Sensor | 1/2.8" progressive scan CMOS | 1/2.8" progressive scan CMOS |
| Lens / Focal Length | 4.4–9.3 mm motorized varifocal | 2.7–13.5 mm varifocal |
| Horizontal FOV | 32–109° | — |
| Aperture | F1.4 | F1.4 |
| Min Illumination (Color / IR) | 0.01 lux / 0 lux | 0.02 lux / 0 lux |
| Illumination Type | IR 850nm | IR 850nm + White Light |
| WDR | 130 dB SureVision | 120 dB |
| Max Frame Rate | 60 fps | 30 fps |
| Video Compression | H.265; H.264; Smart Compression | H.265; H.264; Motion JPEG |
| ONVIF Profiles | Profile S, T, G, M | Profile S, T |
| Edge Analytics | Person/Vehicle, Directional, Loitering, Beam Crossing, Crowd, Tamper | Not specified in provided specs |
| IP Rating | IP66 | IP66 |
| IK / Impact Rating | IK09 | IK09 (IK10 listed in one field — verify) |
| Operating Temperature | Not specified in provided specs | -40°C to +60°C |
| Power Input / PoE Class | PoE Class 3 (802.3af) | PoE Class 3 (802.3af) |
| Edge Storage | microSD | microSD |
| Audio | Microphone supported | Not specified in provided specs |
| NDAA Section 889 | Not stated in provided specs | Compliant |
| On-board Memory | 1 GB RAM / 512 MB Flash | 512 MB RAM / 256 MB Flash |
| Mount Types | Wall; Ceiling; Pendant | Wall; Ceiling; Pole; Pendant; Corner |
| Warranty | 5-year | 5-year |
Frequently Asked Questions
Which should you choose: the SRXP4-3V29-EBT-IR or the SRXV2-2V13-EBT-IRWL?
The SRXP4-3V29-EBT-IR is the stronger choice when frame rate, WDR performance, and edge analytics depth are priorities. It delivers 60 fps versus the Value 2's 30 fps — critical for capturing fast-moving subjects or feeding forensic review. Its 130 dB SureVision WDR outperforms the Value 2's 120 dB by 10 dB in high-contrast scenes, and its explicitly enumerated Smart Analytics (Person/Vehicle, Loitering, Beam Crossing, Crowd Detection) require no separate VMS license for those functions. The Pro 4 also covers ONVIF Profile G and Profile M, enabling standardized on-camera recording and metadata integration unavailable on the Value 2. Conversely, the SRXV2-2V13-EBT-IRWL is the more appropriate choice when a wider lens range (2.7–13.5 mm), white-light color nighttime identification, NDAA Section 889 compliance, a verified -40°C cold-weather rating, and lower unit cost are the governing requirements.
Is the SRXP4-3V29-EBT-IR or SRXV2-2V13-EBT-IRWL better for low light?
Both reach 0 lux in IR mode. In color (non-IR) low light, the Pro 4 is rated at 0.01 lux versus 0.02 lux for the Value 2 — a one-stop advantage. However, the Value 2 adds white-light illumination, which enables full-color image capture in complete darkness without relying on ambient light. If color identification at night is required, the Value 2's white-light mode is a capability the Pro 4 does not list in the provided specifications.
Does either camera work with NDAA-compliant deployments?
NDAA Section 889 compliance is explicitly listed in the Value 2 (SRXV2-2V13-EBT-IRWL) specifications. This compliance is not stated in the provided specifications for the Pro 4 (SRXP4-3V29-EBT-IR). Buyers with federal, state, or contract requirements for NDAA Section 889 compliance should verify the Pro 4's status directly with Pelco before specifying it.
Which camera supports more edge analytics without a separate VMS license?
The SRXP4-3V29-EBT-IR (Sarix Pro 4) lists six named on-camera analytics in the provided specifications: Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, and Tamper Alert, along with ONVIF Profile M for metadata streaming. The SRXV2-2V13-EBT-IRWL does not enumerate supported analytics functions in the provided specifications, so a direct capability comparison cannot be made from the available data. Consult Pelco's Value 2 datasheet to confirm what analytics, if any, run at the edge.
