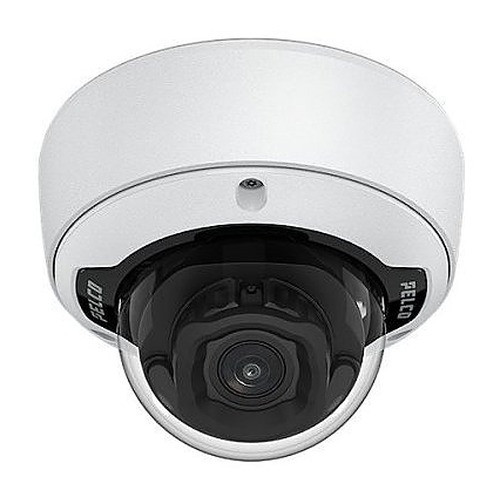

Pelco SRXP4-2V10-IMD-IR vs Pelco SRXV2-2F3-EWD-IR: Specification Comparison
Both the Pelco SRXP4-2V10-IMD-IR and the SRXV2-2F3-EWD-IR are 2MP (1920×1080) fixed IP dome cameras from Pelco's Sarix line, each carrying integrated 850nm IR illumination and IK09 vandal resistance. The Professional 4 and Value 2 Series share the same sensor format and PoE Class 3 power, making them natural cross-shop candidates for installers choosing between an analytics-rich indoor unit and a leaner outdoor-rated alternative.
In This Guide
How do the imaging specs compare?
Both cameras use a 1/2.8-inch progressive-scan CMOS sensor at 1920×1080, and both achieve 0 lux minimum illumination when IR is active. The SRXP4-2V10-IMD-IR pulls ahead in frame rate, delivering up to 60 fps versus 30 fps on the SRXV2-2F3-EWD-IR—a meaningful difference for fast-moving scenes or forensic review. Wide dynamic range is also wider on the Pro 4: 130 dB SureVision compared to 120 dB on the Value 2, giving it a 10 dB advantage in high-contrast entrances or lobbies. Color minimum illumination likewise favors the Pro 4 at 0.01 lux versus 0.02 lux on the Value 2.
The lens options diverge significantly. The SRXP4-2V10-IMD-IR ships with a 4.4–9.3 mm motorized varifocal lens covering a 32–109° horizontal field of view, adjustable remotely without physical repositioning. The SRXV2-2F3-EWD-IR uses a fixed 2.8 mm lens with no stated varifocal range, limiting post-installation angle adjustment. The Pro 4 carries an F1.4 aperture; the Value 2 also specifies F1.4, so aperture is equivalent. Both specify 850nm IR wavelength and an auto day/night ICR.
What about installation and environment?
The environment ratings diverge sharply. The SRXP4-2V10-IMD-IR is rated for indoor use with IP66 ingress protection noted in supplemental data; the SRXV2-2F3-EWD-IR is the outdoor-rated unit but carries only IP42 ingress protection per its listed spec—lower than IP66 and not suitable for direct water spray. Both achieve IK09 impact resistance. Operating temperature tells another story: the Value 2 is specified from -40 °C to +60 °C, while the Pro 4 spec sheet lists -10 °C to +70 °C for storage temperature (operating range not separately called out in the provided specs). Buyers in cold-climate or exposed outdoor environments should verify the Pro 4's operating temperature from Pelco's datasheet before selecting it for outdoor use.
Both cameras are powered via PoE Class 3 (802.3af) with no secondary power input specified. The SRXV2-2F3-EWD-IR connects via an M12 D-coded 4-pin female connector (M12-to-RJ45 adapter included), which is more ruggedized for outdoor conduit runs than a standard RJ45. The SRXP4-2V10-IMD-IR connector type is not specified in the provided data. Mounting options for the Pro 4 include wall, ceiling, and pendant; the Value 2 lists wall, pendant, and rack.
Which fits your VMS and analytics better?
ONVIF compliance is broader on the SRXP4-2V10-IMD-IR: it supports Profile S, Profile T, Profile G, and Profile M. The SRXV2-2F3-EWD-IR supports only Profile S and Profile T. Profile G adds on-camera recording and event retrieval; Profile M adds metadata and analytics interoperability—both absent from the Value 2. For VMS platforms that leverage these profiles, the Pro 4 offers materially deeper integration.
Edge analytics are available only on the SRXP4-2V10-IMD-IR, which includes Smart Analytics covering person and vehicle detection, directional violation, loitering, beam crossing, crowd detection, and tamper alert. The SRXV2-2F3-EWD-IR lists no edge analytics in the provided specifications. Both cameras support microSD on-board storage and HTTPS encryption. Audio input (microphone supported) is noted for the Pro 4; audio capability for the Value 2 is not stated in the provided specs. Compression on the Pro 4 is H.265/H.264/Smart Compression; the Value 2 adds Motion JPEG as a third codec option but does not list Smart Compression.
Which should you choose: the SRXP4-2V10-IMD-IR or the SRXV2-2F3-EWD-IR?
Our take: The SRXP4-2V10-IMD-IR is the stronger choice when analytics, flexible framing, or deep VMS integration are priorities. It delivers 60 fps versus 30 fps on the Value 2, 130 dB WDR versus 120 dB, and a motorized varifocal 4.4–9.3 mm lens versus a fixed 2.8 mm lens—three concrete advantages that matter in busy lobbies, high-contrast entries, and installations where lens angle cannot be physically revisited. It also adds ONVIF Profile G and M and a full Smart Analytics suite absent from the Value 2. The SRXV2-2F3-EWD-IR is the appropriate pick for outdoor deployments where its -40 °C cold-weather rating and M12 ruggedized connector are required, provided the IP42 ingress rating is acceptable for the specific installation environment. Neither model should be selected for outdoor high-pressure wash-down without confirming the applicable IP rating from Pelco's current datasheet.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Pelco SRXP4-2V10-IMD-IR | Pelco SRXV2-2F3-EWD-IR |
|---|---|---|
| Series | Sarix Professional 4 | Sarix Value 2 |
| Resolution | 2MP (1920 × 1080) | 2MP (1920 × 1080) |
| Image Sensor | 1/2.8" Progressive Scan CMOS | 1/2.8" Progressive Scan CMOS |
| Lens / Focal Length | 4.4–9.3 mm Motorized Varifocal | 2.8 mm Fixed |
| HFOV | 32–109° | — |
| Aperture | F1.4 | F1.4 |
| Min Illumination (Color / IR) | 0.01 lux color / 0 lux IR | 0.02 lux color / 0 lux IR |
| IR Wavelength | 850 nm | 850 nm |
| WDR | 130 dB SureVision | 120 dB |
| Max Frame Rate | 60 fps | 30 fps |
| Video Compression | H.265; H.264; Smart Compression | H.265; H.264; Motion JPEG |
| ONVIF Profiles | S, T, G, M | S, T |
| Edge Analytics | Person/Vehicle, Loitering, Beam Crossing, Crowd, Directional, Tamper | — |
| IP Rating | IP66 (supplemental data) | IP42 |
| IK / Impact Rating | IK09 | IK09 |
| Operating Temperature | Not stated in provided specs (-10 °C to +70 °C storage noted) | -40 °C to +60 °C |
| Power / PoE Class | PoE 802.3af / Class 3 | PoE 802.3af / Class 3 |
| Ethernet Connector | — | M12 D-coded 4-pin (M12-to-RJ45 adapter included) |
| On-Board Storage | microSD | microSD |
| Audio | Microphone supported | — |
| HTTPS Encryption | Yes | Yes |
| Environment Rating | Indoor | Outdoor |
| NDAA Section 889 | — | Compliant |
| Memory | 1 GB RAM / 512 MB Flash | 512 MB RAM / 256 MB Flash |
| Weight | 0.81 kg | 409 g |
| Dimensions | Not usable as provided | 111.5 mm × 111 mm × 57.6 mm |
| Warranty | 5-year | 5-year |
Frequently Asked Questions
Which should you choose: the SRXP4-2V10-IMD-IR or the SRXV2-2F3-EWD-IR?
The SRXP4-2V10-IMD-IR is the stronger choice when analytics, flexible framing, or deep VMS integration are priorities. It delivers 60 fps versus 30 fps on the Value 2, 130 dB WDR versus 120 dB, and a motorized varifocal 4.4–9.3 mm lens versus a fixed 2.8 mm lens—three concrete advantages that matter in busy lobbies, high-contrast entries, and installations where lens angle cannot be physically revisited. It also adds ONVIF Profile G and M and a full Smart Analytics suite absent from the Value 2. The SRXV2-2F3-EWD-IR is the appropriate pick for outdoor deployments where its -40 °C cold-weather rating and M12 ruggedized connector are required, provided the IP42 ingress rating is acceptable for the specific installation environment. Neither model should be selected for outdoor high-pressure wash-down without confirming the applicable IP rating from Pelco's current datasheet.
Is the SRXP4-2V10-IMD-IR or SRXV2-2F3-EWD-IR better for low-light performance?
Both reach 0 lux in IR monochrome mode with 850nm illuminators. In color/twilight conditions the SRXP4-2V10-IMD-IR has a slight edge at 0.01 lux color minimum illumination versus 0.02 lux on the SRXV2-2F3-EWD-IR, and its 130 dB WDR (versus 120 dB) better handles mixed artificial and ambient light at entrances.
Can either camera work with analytics-capable VMS platforms without a server-side license?
Only the SRXP4-2V10-IMD-IR includes on-camera Smart Analytics (person/vehicle detection, loitering, beam crossing, crowd detection, directional violation, tamper alert) per the provided specifications. The SRXV2-2F3-EWD-IR lists no edge analytics; any analytics for that model would require a server-side VMS license.
Which camera is rated for outdoor installation?
The SRXV2-2F3-EWD-IR is the outdoor-rated model per its provided specifications, with an operating temperature range of -40 °C to +60 °C and an M12 ruggedized Ethernet connector. Its ingress protection is listed as IP42, which resists solid objects and dripping water but not direct spray. The SRXP4-2V10-IMD-IR is specified as an indoor dome; its IP66 notation appears only in supplemental data, and buyers should confirm its outdoor suitability against Pelco's official datasheet before outdoor deployment.
