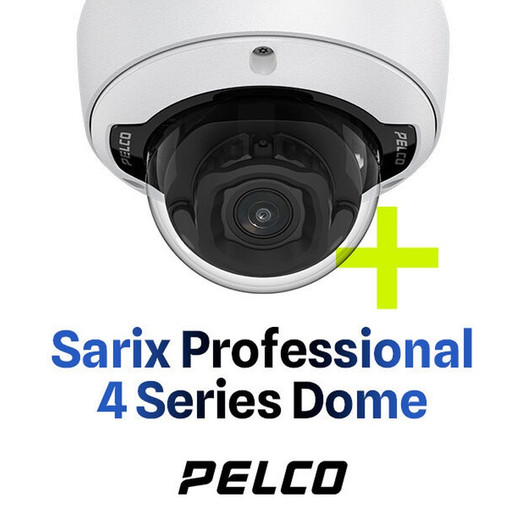

Pelco SRXP4-2V10-IMD-IR 2MP Indoor Dome Camera
The SRXP4-2V10-IMD-IR (often searched as SRXP4 2V10 IMD IR) is a compact 2MP indoor dome from Pelco's Sarix Professional 4 line designed for facilities where flexible coverage angles and infrared night vision eliminate external lighting dependencies. The motorized 4.4–9.3 mm varifocal lens delivers a 32–109 degree horizontal field of view, meaning you can adjust coverage remotely without physically repositioning the camera—a significant advantage in retail, banking, or office environments where access is difficult or interrupts operations.
Key Features
- 2MP 1/2.8-inch CMOS sensor (1920×1080) — delivers sufficient detail for facial recognition and license plate reading in indoor corridors, lobbies, and retail floors at typical 15–30 fps deployment; 60 fps maximum frame rate captures smooth motion during high-activity periods (e.g., checkout lanes, entry/exit monitoring).
- Motorized varifocal lens with remote zoom and focus — eliminates the need for physical camera repositioning. Wide field adjustability (32–109° HFOV) means one camera can cover multiple zones or refocus after installation without mounting crews.
- Integrated IR illumination for 0 lux imaging — reaches 0.01 lux in color and 0.003 lux in monochrome. No external IR projectors needed, simplifying wiring and reducing total system cost in dark storage areas, server rooms, or 24/7 unmanned facilities.
- 130 dB SureVision wide dynamic range (WDR) — handles high-contrast scenes (sunlit lobbies with shadowed corners, backlit doorways) without washing out or darkening detail. Crucial when a single camera must cover both bright and dark zones simultaneously.
- Smart on-camera analytics — person/vehicle detection, directional violation, loitering, beam crossing, crowd detection, and tamper alert reduce alert fatigue and enable rule-based triggers without VMS processing overhead. Particularly valuable in retail loss prevention and access monitoring.
- H.265 video compression alongside H.264 and Smart Compression — H.265 cuts bandwidth and storage consumption by 40–60% compared to H.264 on the same quality settings. For 24/7 multi-camera deployments, this translates directly to smaller NVR disks and reduced network congestion.
- PoE (802.3af Class 3) power — draws under 13W, fitting within standard PoE switch budgets. Single Ethernet cable handles both data and power, simplifying cable runs and reducing installation labor.
- IK09 vandal rating — the dome housing resists intentional bumps and casual tampering in public-facing indoor spaces (retail floors, transit stations), though not rated for outdoor weathering.
- ONVIF Profile S, T, G, M compliance — integrates cleanly with third-party VMS platforms and recorders, reducing vendor lock-in. Profiles S and T cover core streaming; G and M add analytics and mobile support.
- microSD card local storage — supports backup recording or forensic capture if network connectivity drops, though primary archive should rely on an NVR.
- HTTPS encryption and FIPS 140-2 Level 3 TPM — addresses government compliance and data-at-rest security. NDAA Section 889 compliance makes this eligible for federal and state public-sector projects without entity restrictions.
Integration & Compatibility
The SRXP4-2V10-IMD-IR pairs with Pelco VideoXpert VMS and any ONVIF-compliant network video recorder or PoE-enabled switch. Its compact dome form factor fits standard ceiling mounts in drop-tile or hard-ceiling environments. For facility planning, assume a camera placement and lens selection guide to map coverage zones before installation.
When to Choose a Different Model
If you need higher resolution (4MP or 5MP) for wide-area forensic capture, consider a higher-megapixel variant in the Sarix Professional 4 family. If the environment requires full outdoor weathering (roof-mounted, outdoor canopies), select an outdoor-rated dome instead. For fixed single-angle deployments where motorized zoom offers no operational advantage, a fixed-lens 2MP dome will cost less and reduce points of failure.
Frequently Asked Questions
Q: Is the SRXP4-2V10-IMD-IR NDAA Section 889 compliant?
A: Yes. The unit meets NDAA Section 889 compliance requirements, making it eligible for federal and state public-sector procurements without Huawei or ZTE entity restrictions.
Q: What is the IR range on the SRXP4-2V10-IMD-IR?
A: The integrated infrared illumination enables imaging down to 0 lux (complete darkness) in monochrome mode. Indoor coverage is effective throughout typical room-scale distances (corridors, lobbies, retail floors). Outdoor or long-throw IR applications require an external illuminator.
Q: Does the SRXP4-2V10-IMD-IR work with Milestone XProtect?
A: Yes. ONVIF Profile S and T compliance ensures compatibility with Milestone XProtect and other third-party ONVIF-compliant VMS platforms. Integrate as a standard ONVIF device.
Q: What is the warranty on the SRXP4-2V10-IMD-IR?
A: Five-year warranty from Pelco covers defects in materials and workmanship.
Q: Can I wall-mount the SRXP4-2V10-IMD-IR?
A: Yes. The dome is rated for both ceiling and wall mounting. Use appropriate brackets for your mounting surface and ensure the motorized lens has adequate clearance from obstacles.
Q: What compression codecs does the SRXP4-2V10-IMD-IR support?
A: The camera supports H.264, H.265, and Smart Compression. H.265 is recommended for long-term storage and bandwidth-constrained networks, delivering 40–60% reduction in file size versus H.264 at equivalent quality.
The SRXP4-2V10-IMD-IR sits in the sweet spot for small-to-mid indoor deployments where you need flexible focal-length coverage without physically moving hardware. The motorized varifocal lens is the real advantage here—once mounted, you can dial in the framing from the NVR interface, which saves site visits if stakeholders later want to adjust zones. The integrated IR and 0.003 lux monochrome floor are solid for after-hours retail or server rooms without adding external illuminators.
Technical Highlights:
- H.265 codec: On a 24/7 three-to-five camera system, H.265 will reduce your NVR storage footprint by roughly 50% compared to H.264—meaningful if you're targeting 30-day retention on 2MP feeds.
- On-camera analytics (person/vehicle detection, loitering, beam crossing): These run locally on the camera's processor, not on the VMS. Cuts CPU load on the recording server and enables rule-based alerts without streaming event video off-site. Useful for retail loss-prevention workflows.
- 60 fps maximum frame rate: Overkill for typical retail or office hallway monitoring (30 fps is standard), but handy if you're covering fast-moving checkout lanes or high-traffic entry points where motion blur becomes an issue.
- PoE 802.3af (under 13W): Standard budget-friendly power. Fits in any modern PoE switch without power-injection hassles. Just verify your switch has enough total budget if you're running 8+ cameras.
Deployment Considerations:
- The 2MP sensor is a hard cap—you won't pull facial detail from 40+ feet. Deploy these in corridors, lobbies, and retail floors at typical 8–20 foot standoff distances. For perimeter or warehouse scanning, bump up to a 4MP or 5MP variant.
- IK09 rating protects against casual bumps but is not equivalent to outdoor-grade vandal resistance. Indoor ceiling or wall mount only; don't expose to direct sunlight or weather cycling.
- The motorized lens adds mechanical complexity—focus motor and zoom motor are potential failure points. Pelco's five-year warranty covers defects, but if your budget is tight and you can accept a fixed field of view, a simpler fixed-lens 2MP dome will have fewer moving parts and lower mean-time-between-failure.
Deploy the SRXP4-2V10-IMD-IR in retail chains, office building lobbies, or secure storage areas where you need coverage flexibility, tight integration with an ONVIF-compliant VMS, and 24/7 operation without external lighting. The analytics offloading and H.265 efficiency make this a solid choice for cost-conscious multi-location operators who want good forensic detail without oversized storage infrastructure.
