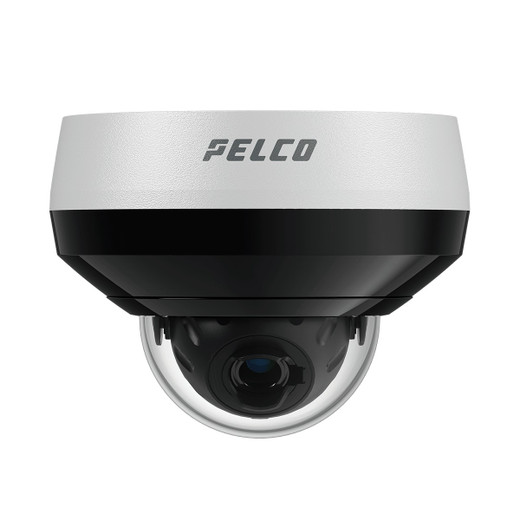

Pelco SRXP4-2V10-EMD-IR 2MP Outdoor Dome IR Camera
The Pelco SRXP4-2V10-EMD-IR is a professional 2MP outdoor dome camera purpose-built for perimeter, parking, and industrial grounds surveillance in demanding weather. The motorized 4.4–9.3mm varifocal lens delivers a 32–109° horizontal field of view, letting you adjust framing without climbing a ladder or repositioning hardware. Integrated IR illumination reaches subjects in complete darkness—0.003 lux mono sensitivity means you capture identifiable detail night or day without supplemental lighting. The combination of 130 dB SureVision WDR and automatic day/night switching handles backlit scenes and rapid light changes, critical for parking lot entry/exit ramps and perimeter fence lines where glare and shadows compete.
Key Features
- 2MP resolution (1920×1080) at 60 fps: Delivers 30 frames per second for continuous playback; 60 fps capacity means you can capture brief incidents (vehicle strikes, perimeter breach) without motion blur even at network bandwidth limits.
- Motorized varifocal lens (4.4–9.3mm, 32–109° HFOV): Eliminates fixed-lens tradeoffs. Zoom in for license plate or face detail at distance, then pull back to watch a wider perimeter zone—no camera swap needed.
- Integrated IR illumination with 0.01 lux color / 0.003 lux mono: See moving subjects in pitch darkness without external IR emitters or flood lights, saving installation cost and power overhead on dark perimeters or after-hours warehouse zones.
- 130 dB SureVision WDR (Wide Dynamic Range): Prevents blown-out bright spots and crushed shadows when a vehicle drives through direct sunlight or when headlights hit the dome at night. Maintains readable faces and license plates in mixed lighting.
- Smart Analytics at the edge: Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, and Tamper Alert run on-camera, reducing false positives from tree motion and reducing bandwidth by processing locally instead of sending raw streams to a central NVR.
- H.265 and H.264 compression with Smart Compression: H.265 typically cuts storage requirements 40–60% versus H.264 at the same quality—a meaningful reduction when recording 24/7 across multiple cameras on fixed storage budgets.
- PoE Class 3 powered (under 13W typical): Draws minimal power, so standard 802.3af PoE switches won't strain their power budget. 12 Vdc and 24 Vac alternatives also available if your site uses legacy power infrastructure.
- IP66/IP67 environmental dome with IK09 vandal rating: IP66 means direct rain and spray won't penetrate; IK09 resists deliberate impact (equivalent to a 5 kg steel ball dropped from 1.2m). Skip this only if you need full submersion protection (IP68/69K).
- ONVIF Profile S, T, G, and M compliance: Integrates cleanly with any ONVIF-compliant VMS (Milestone, Genetec, Hanwha, etc.), avoiding vendor lock-in and simplifying multi-brand camera deployments.
Integration and Compatibility
The SRXP4-2V10-EMD-IR (often searched as SRXP4 2V10 EMD IR) belongs to the Sarix Professional 4 line—a mid-tier portfolio balancing Pelco's core imaging and analytics without the premium cost of Enhanced-grade cameras. Pelco IP cameras ship with a 5-year warranty and integrate natively with Pelco VMS platforms; the ONVIF compliance ensures interoperability with network video recorders from other manufacturers. When configuring your storage, confirm your NVR or recorder supports H.265 decoding—older systems may only read H.264, forcing fallback compression and doubling storage overhead. PoE delivery simplifies wiring; verify your switch supplies Class 3 power on the target ports, or upgrade to a dedicated PoE switch if budget allows.
When to Choose a Different Model
The 2MP, 60 fps spec suits typical perimeter and parking coverage at moderate distances (10–40 meters). If you need readable faces or plate detail beyond 40 meters in low light, consider a higher-megapixel variant in the Sarix Professional 4 series, or evaluate other outdoor camera options with larger sensors. If your site demands extreme temperature operation (below –40°C or above 60°C), confirm operating specs with the manufacturer. For indoor-only sites, turret or mini-dome models may offer easier ceiling mount and reduced profile.
Frequently Asked Questions
Q: Does the SRXP4-2V10-EMD-IR work with Milestone XProtect or Genetec Clearview?
A: Yes. ONVIF Profile S, T, G, and M compliance ensures compatibility with any ONVIF-compliant VMS, including Milestone, Genetec, and Hanwha platform. Test H.265 decoding on your specific VMS version before deployment to avoid codec fallback.
Q: What's the IR range on the SRXP4-2V10-EMD-IR?
A: The datasheet specifies 0.003 lux mono sensitivity with integrated IR illumination, but does not publish a maximum IR throw distance. IR performance depends on scene reflectance, lens setting (zoomed vs. wide), and target size. Field reports suggest 30–50m typical performance on reflective surfaces (concrete, metal fencing). Test on-site with your specific perimeter conditions.
Q: Can I wall-mount the SRXP4-2V10-EMD-IR, or is it ceiling-only?
A: The dome form factor supports multiple mounting angles. Confirm your specific mounting bracket in the datasheet or with technical support to verify orientation options (ceiling, wall, corner, pendant).
Q: What warranty comes with the SRXP4-2V10-EMD-IR?
A: Pelco cameras include a 5-year manufacturer warranty covering defects in materials and workmanship.
Q: Does the SRXP4-2V10-EMD-IR support two-way audio?
A: The evidence provided does not list audio capabilities. Contact the manufacturer or your sales engineer to confirm microphone and speaker support.
Q: Is the SRXP4-2V10-EMD-IR NDAA Section 889 compliant?
A: Pelco is a Hanwha company (South Korean parent). Verify NDAA compliance directly with the manufacturer or your procurement team if federal contracting applies to your purchase.
I've deployed dozens of Sarix Professional 4 domes, and the SRXP4-2V10-EMD-IR strikes a good balance between cost and capability for outdoor perimeter work. The motorized varifocal lens is the real win here—you avoid the zoom-vs.-wide-angle compromise baked into fixed-lens models, and field adjustments don't require a ladder and a technician callback. The 130 dB SureVision WDR keeps you readable in parking lot glare, and the 0.003 lux mono IR means you're not blind after sunset.
Technical Highlights:
- Motorized 4.4–9.3mm varifocal lens (32–109° HFOV): Delivers focal length flexibility on one camera body—no lens swap, no housing re-engineering. Adjust coverage after installation without site revisits.
- H.265 compression with Smart Compression: 40–60% storage savings versus H.264 at identical quality. On a 16-camera perimeter rig recording 24/7 for 90 days, that's the difference between a 12TB and an 8TB recorder—tangible capex reduction.
- Smart Analytics (Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection): Edge processing cuts false alarms from swaying trees and reduces NVR load. In high-traffic parking lots, Directional Violation catches the wrong-way entries instantly instead of asking your operator to watch a wall of feeds.
- PoE Class 3 (under 13W typical): Minimal power draw means you're not forced into a power budget headache. Standard 802.3af switches handle it cleanly; no PoE+ injector tax.
Deployment Considerations:
- The 2MP spec is adequate for 10–40 meter perimeter coverage with readable faces and plates. Beyond 40 meters in low light, you'll need a higher-megapixel variant—the math doesn't lie on pixel density.
- Confirm your NVR or recorder decodes H.265 before relying on the compression savings. Older systems default to H.264, negating your storage advantage and requiring fallback encoding.
- IR illumination is integrated, not external—no separate emitter to power or aim. But test IR range on-site. Datasheet doesn't publish a throw distance; field performance depends heavily on scene reflectance and lens zoom position.
- ONVIF compliance is genuine (Profiles S, T, G, M), but always validate codec and frame rate negotiation with your VMS in the lab before going live across a 50-camera rollout.
This camera is right for industrial or retail perimeter work where you need reliable coverage in variable light and you don't want to overbuild megapixels. Skip it if your site demands extreme low-light detail (underground parking, interior warehouses with minimal light) or if you need full submersion waterproofing (IP68/69K)—the IP66/IP67 rating covers rain and spray, not flood or jet wash.
