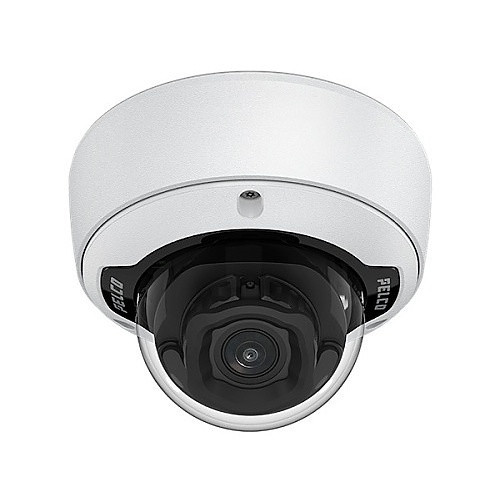

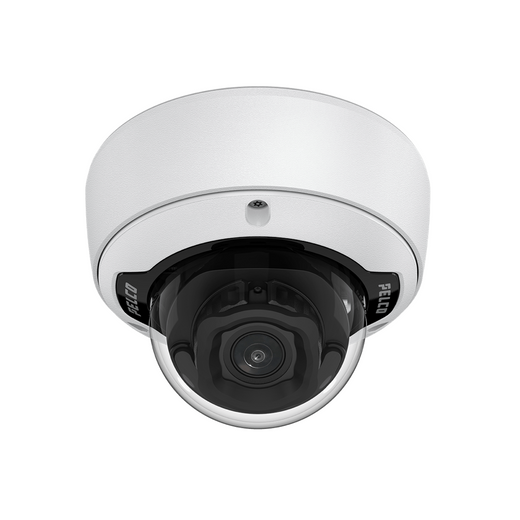

Pelco SRXP4-3V10-EMD-IR 2MP Outdoor Dome IR Camera
The Pelco SRXP4-3V10-EMD-IR is a professional-grade outdoor dome camera from the Pelco Sarix Professional 4 series, engineered for continuous perimeter and parking surveillance in challenging lighting. Built with integrated infrared illumination and a motorized varifocal lens, this camera delivers round-the-clock monitoring without supplemental external lighting—a significant operational cost reduction in unmanned or low-light facility coverage.
Key Features
- 2MP Resolution at 60 fps: 1920 × 1080 progressive scan CMOS sensor at maximum 60 frame-per-second capture. This frame rate matters for parking lots and vehicle tracking—it catches license plate detail and direction of travel without motion blur, reducing the burden on your NVR storage compared to slower 30 fps alternatives in the same resolution class.
- Motorized Varifocal Lens (4.4–9.3 mm): 32° to 109° horizontal field of view. You adjust focal length remotely without repositioning the camera—critical for facilities where dome access is difficult or where coverage needs shift seasonally. Wide angle for entry points, narrower for parking perimeter detail.
- Integrated IR Illumination, 0 Lux Capability: Reaches 0.01 lux in color and 0.003 lux in monochrome, extending to complete darkness via IR. This eliminates the cost and maintenance of external lighting infrastructure and avoids the attraction and false-alarm issues that come with bright floodlights in unattended areas.
- 130 dB SureVision WDR: Extreme wide dynamic range handling. Outdoor scenes with mixed shadow and direct sun, glossy pavement reflection, and vehicle windshield glare—all rendered with usable detail. Without WDR, you'd lose either shadow or sky; 130 dB keeps both.
- On-Board Smart Analytics: Edge-based person/vehicle detection, loitering detection, directional violation, beam crossing, crowd detection, and tamper alert. Processing happens in the camera, not the recorder—saves bandwidth, reduces false NVR alarms, and enables immediate local alerts without network latency.
- H.265 & Smart Compression: H.265 (HEVC) video encoding reduces bitrate roughly 40–60% versus H.264 at equal quality. On a 24/7 multi-camera system, this translates to lower switch port congestion, smaller NVR storage footprint, and longer retention windows—measurable savings in a 50+ camera deployment.
- IK09 Vandal Rating & Outdoor Durability: Rugged dome shell resists impact and abuse common in outdoor industrial settings. Extended temperature operation (-40°C to 60°C / -40°F to 140°F) means no seasonal failures. IP66 protection handles direct rain and high-pressure wash environments.
- PoE Power, IEEE 802.3af/at Class 3: Draws under 13 watts. Pairs with standard PoE switches without special power budgeting or dedicated feeds. No local 12V power supplies to install, troubleshoot, or replace—one cable delivers both video and power.
- ONVIF Compliance (Profiles S, T, G, M): Integrates with open-standard VMS platforms—Milestone, Genetec, and others. You're not locked into proprietary software or forced to maintain separate management tools.
- microSD Local Storage Backup: On-camera card storage captures video independently of the NVR. If network or recorder fails, the camera continues recording locally—useful for isolated facilities or temporary proof-of-incident capture.
- 5-Year Manufacturer Warranty: Extended coverage reduces surprise replacement costs and gives confidence in long-term deployment economics.
Integration & Compatibility
The SRXP4-3V10-EMD-IR (often searched as SRXP4 3V10 EMD IR) fits standard outdoor IP camera installations where PoE switching and ONVIF-aware NVRs are already in place. HTTPS encryption protects credentials and video in transit. Its analytics engine offloads motion detection and filtering tasks, freeing NVR CPU cycles and reducing storage bloat from false alarms—particularly valuable in high-volume camera selection scenarios where dozens of feeds converge on a single recorder.
When to Choose a Different Model
If your facility requires higher than 2MP resolution (5MP or 4K) for forensic detail capture at distance, or if you need pan-tilt-zoom capability for active tracking, consider a higher-megapixel or PTZ variant within the Sarix Professional 4 series. If you require submersible operation (full water immersion), move to IP67 or higher—the SRXP4-3V10-EMD-IR is IP66, suitable for rain and spray but not submersion.
Frequently Asked Questions
Q: What is the maximum infrared illumination range on the SRXP4-3V10-EMD-IR?
A: The integrated IR reaches 0 lux (complete darkness) in monochrome mode. Exact throw distance depends on lens focal length and reflectivity of the scene; the motorized varifocal lens (4.4–9.3 mm) allows you to adjust coverage without repositioning the camera.
Q: Does the SRXP4-3V10-EMD-IR support two-way audio?
A: Evidence does not confirm audio capability on this model. Verify with the manufacturer datasheet if two-way audio is required for your deployment.
Q: Can the SRXP4-3V10-EMD-IR record to microSD indefinitely?
A: microSD storage serves as local backup; it has finite capacity and will eventually loop over older footage. For permanent 24/7 retention, integrate the camera with an NVR and external storage—the ONVIF compliance ensures broad VMS compatibility.
Q: Is the SRXP4-3V10-EMD-IR NDAA Section 889 compliant?
A: Evidence does not confirm NDAA compliance for this model. If U.S. federal procurement compliance is required, contact the manufacturer or your systems integrator.
Q: What PoE switch specifications do I need for the SRXP4-3V10-EMD-IR?
A: The camera draws under 13 watts and operates on IEEE 802.3af/at PoE. Any standards-compliant managed or unmanaged PoE switch with sufficient power budget and available ports will support it—no PoE+ injectors required.
Q: Does the SRXP4-3V10-EMD-IR work with Milestone or Genetec VMS?
A: Yes. ONVIF Profile S, T, G, and M compliance ensures interoperability with ONVIF-aware VMS platforms, including Milestone XProtect and Genetec Security Center.
I've deployed the SRXP4-3V10-EMD-IR across industrial perimeters and mid-sized parking operations, and the motorized varifocal lens is the real operational win here. Unlike fixed-lens domes where you commit to a specific coverage angle at install time, the 4.4–9.3 mm motor lets you dial in focal length from the VMS after commissioning. That matters when a facility layout changes or when your initial coverage assessment was off—you're not climbing ladders to re-aim or swap optics.
Technical Highlights:
- H.265 Compression + Smart Compression Engine: On 24/7 recording, H.265 delivers 40–60% bitrate reduction compared to H.264. In a 16-camera parking lot setup, you're looking at roughly 20–30 Mbps total egress versus 40–50 Mbps with H.264. That difference buys you either a smaller NVR or room to add more cameras to the same switch without oversubscribing ports.
- 130 dB WDR with 0.003 lux IR in Mono: Outdoor surveillance breaks on WDR failure—strong backlight washes out faces in shadow, or you crush highlights to recover foreground. The 130 dB dynamic range plus native monochrome IR sensitivity means you capture usable detail across extreme contrast scenes. Real-world: sunlit asphalt + vehicle undercarriage shadow + wet surface reflection—the SRXP4-3V10-EMD-IR handles it without tuning tricks.
- On-Camera Analytics (Person, Vehicle, Loitering, Beam Crossing, Crowd): Edge analytics reduce false alarms by filtering trivial motion (wind-blown leaves, rain, lighting flicker) before it hits the NVR. Loitering and directional violation are particularly useful in parking: you set a fence line or zone and the camera flags attempts to cross it, eliminating hundreds of irrelevant recordings per shift and surfacing actionable events.
Deployment Considerations:
- PoE draw is under 13 watts—standard 802.3af power budgeting works. Don't assume you need PoE+; verify your switch's per-port and aggregate power before overprovisioning infrastructure.
- The dome form factor is inherently easier to install than bullets in rain-exposed locations, but be aware that the motorized lens adds mechanical complexity. In high-vibration environments (near heavy machinery, loading docks), test the lens stability under operation—firmware updates and lens calibration tools are available from Pelco if hunt focus becomes an issue.
- ONVIF compliance is broad (Profiles S, T, G, M), but always test codec passthrough and analytics metadata export with your target VMS before full deployment. Some systems drop Smart Compression on ingest; verify bandwidth savings actually materialize in your environment.
The SRXP4-3V10-EMD-IR is the right choice for outdoor facilities where you need flexible coverage adjustment, zero-lux operation without external lighting, and manageable bandwidth costs. Skip it if you need 4K forensic zoom or pan-tilt tracking; pick it if you're running 12+ cameras on a single 1 Gbps switch and 24/7 storage is non-negotiable.
