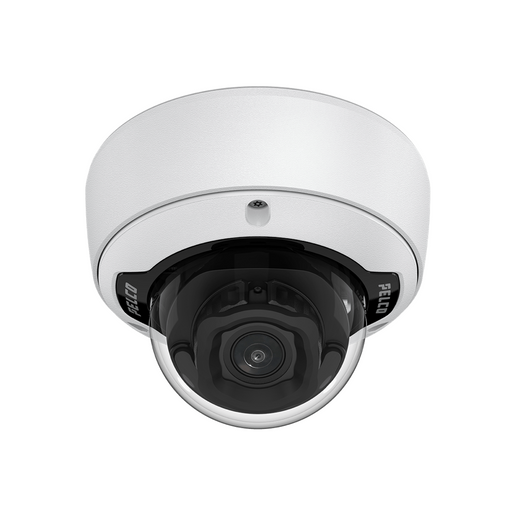

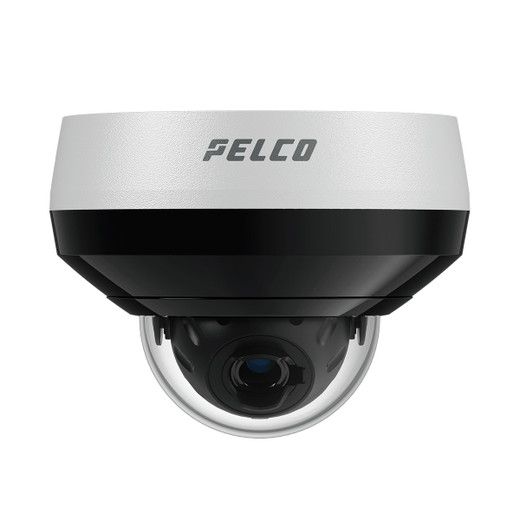

Pelco SRXP4-8V9-EMD-IR Sarix Pro 4 2MP Dome IR

Pelco SRXP4-8V9-EMD-IR Sarix Pro 4 2MP Dome IR Camera

The Pelco SRXP4-8V9-EMD-IR is a professional-grade outdoor IP dome camera from the Sarix Professional 4 series, engineered for continuous surveillance in demanding environments. With a 1/2.8-inch progressive scan CMOS sensor delivering 2MP resolution at 1920×1080, this camera combines flexibility and reliability for medium to large area coverage in retail, commercial, and industrial applications.

Key Features

• 2MP (1920×1080) resolution at up to 60 fps for smooth motion capture
• 4.4–9.3 mm motorized varifocal lens with 32–109° horizontal field of view for remote focus adjustment
• 130 dB SureVision wide dynamic range for high-contrast scenes
• Integrated IR illumination for 0 lux nighttime operation
• Pelco Smart Analytics: Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, Tamper Alert
• H.264 and H.265 video compression with Smart Compression support
• IP66/IP67-rated outdoor dome with IK09 vandal resistance
• PoE Class 3 powered; microSD local storage support
• ONVIF Profile S, T, G, and M compliance
• HTTPS encryption for secure data transmission

Technical Specifications

The camera employs a 1/2.8-inch progressive scan CMOS sensor with F1.4 aperture and achieves 0.01 lux color and 0.003 lux monochrome sensitivity (0 lux with IR). The motorized varifocal lens enables post-installation focus and zoom adjustment without camera repositioning, ideal for applications where precise framing cannot be determined during installation.

On-board Pelco Smart Analytics run independently without requiring a dedicated server, reducing infrastructure costs. H.265 compression significantly reduces bandwidth and storage consumption compared to H.264 while maintaining image quality.

Deployment Applications

The SRXP4-8V9-EMD-IR suits parking structures, building exteriors, shopping centers, industrial facilities, and perimeter monitoring where motorized lens adjustment and integrated night vision are essential. The varifocal capability provides operational flexibility for dynamic scene requirements.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The motorized varifocal lens distinguishes this model from fixed-lens competitors, allowing field technicians to adjust coverage after installation without requiring camera removal. The 130 dB SureVision WDR handles challenging lighting—critical for scenarios mixing direct sunlight with shadowed areas. Smart Analytics execution on-camera eliminates server overhead and reduces latency for real-time alerting.

Confirm your NVR supports H.265 decoding and sustained 2MP streaming at 60 fps before deployment. The IK09 rating provides solid vandal protection in accessible areas; IK10-rated models exist for higher-risk environments.

Warranty: 5-year manufacturer warranty included.

Product Documentation
