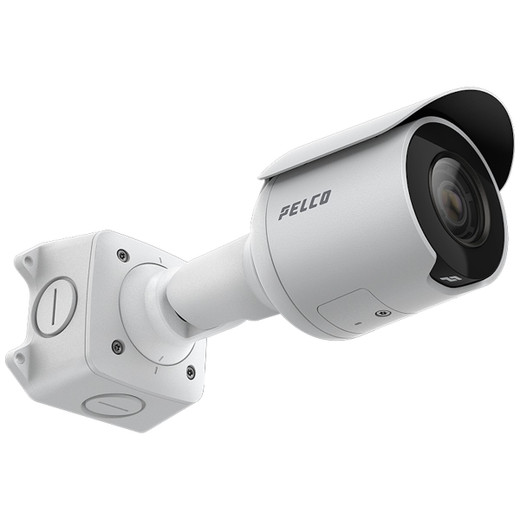

Pelco SRXP4-5V29-EBT-IR Sarix Pro 4 2MP Bullet IR

Pelco SRXP4-5V29-EBT-IR Sarix Pro 4 2MP Bullet IR Camera

The Pelco SRXP4-5V29-EBT-IR is a professional-grade 2MP outdoor bullet camera from the Sarix Professional 4 series, engineered for long-range surveillance in mixed-lighting environments. Built on a 1/2.8" progressive scan CMOS sensor delivering 1920×1080 resolution at 60 fps, this camera combines integrated 850nm IR illumination with a motorized 4.4–9.3mm varifocal lens to enable flexible focal length adjustment after installation. The combination of 130dB SureVision WDR and 0 lux IR capability allows continuous coverage from dawn through low-light conditions without supplementary external lighting.

Key Features

• 2MP Progressive Scan Sensor: 1920×1080 at 60 fps on a 1/2.8" CMOS chip. Full 60 fps framerate eliminates motion blur in high-traffic perimeter zones and enables smooth PTZ-like repositioning via software zoom.
• Motorized Varifocal Lens: 4.4–9.3mm focal length with 32–109° HFOV. Post-installation zoom and focus adjustment minimizes re-camera labor and lets you tighten field of view on distant objects without a site revisit.
• 130dB SureVision WDR: Forensic-grade wide dynamic range handles backlit entry doors, sunlit parking surfaces, and reflective signage in a single frame with minimal ghosting.
• Integrated IR with 850nm LEDs: 0 lux monochrome night vision; 0.01 lux color (day mode sensitivity). Eliminates external lighting infrastructure on perimeter runs and reduces power-demand spikes at dusk.
• On-Board Smart Analytics: Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, and Tamper Alert run natively on the camera. Edge-filtered alerts reduce false-positive noise sent to the NVR and lower bandwidth on congested networks.
• Dual-Codec Compression: H.264 and H.265 with Pelco Smart Compression. H.265 reduces storage footprint 40–50% versus H.264 at equivalent quality; Smart Compression further adapts bitrate based on scene activity, lowering idle-state bandwidth.
• ONVIF Profile S, T, G, M: Works with Genetec, Milestone, Avigilon, ExacqVision, and other major VMS platforms without vendor-specific adapters.
• PoE Class 3 Powered: 802.3af standard PoE — integrates directly into any 802.3af switch without PoE+ upgrades. Typical power draw under 13W.
• IK09 Vandal Rating: Withstands 5kg impact from 1.25m height without optical or functional degradation. Suitable for high-traffic zones and accessible mounting heights.
• microSD Backup Storage: On-camera recording to microSD card provides local failover if NVR connection drops — valuable for remote gate and perimeter locations with intermittent network stability.

Deployment Context & Image Quality

The 1/2.8" progressive scan sensor and F1.4 aperture deliver strong low-light performance without relying solely on digital gain. The motorized varifocal design shifts the cost of field focus adjustment from site labor to the initial hardware investment — a worthwhile tradeoff on multi-camera perimeter projects where zoom flexibility reduces the need for different fixed-focal-length SKUs. At 60 fps, motion artifacts in parking-lot and vehicle-detection scenarios are minimized, improving downstream video analytics accuracy.

SureVision WDR operates at the sensor level (not post-processing), preserving fine detail in shadows and highlights simultaneously. This matters most in scenarios where forensic video review is required — toll booths, access gates, and vehicle-impact zones where simultaneous visibility of license plates and facial features is critical. Combined with 130dB dynamic range, the camera handles noon-hour sunlit scenes without washout and late-afternoon backlighting without silhouette.

Edge Analytics & Bandwidth Efficiency

Pelco Smart Analytics run on the camera's processor, offloading compute from the NVR. Person and Vehicle Detection filters false alerts from rain, wind-blown vegetation, and shadows — reducing NVR disk I/O and alert queue noise. Loitering and Directional Violation modes flag suspicious dwell times or perimeter breaches in real time, cutting human review cycles on large perimeter installations. Tamper Alert detects lens obstruction, camera repositioning, or spray-on vandalism, triggering immediate dispatch or alert escalation.

Smart Compression complements H.265 codec efficiency by reducing bitrate during static scenes (empty parking lots at night) and ramping up when motion is detected. On a 16-camera outdoor facility running 24/7, this can reduce NVR storage footprint by an additional 20–30% versus constant-bitrate H.265. PoE Class 3 power consumption stays under typical 802.3af budgets even during sustained IR operation, simplifying network infrastructure planning.

Integration & Compliance

ONVIF Profile compliance ensures that firmware updates and VMS migrations do not lock you into a single vendor. Profile M support adds advanced metadata streaming (detection event coordinates, confidence scores) for integrations with third-party analytics platforms like Hikvision DeepInMind or Axis analytics appliances. Microphone support enables audio alarm triggering and two-way intercom on systems with appropriate NVR or software backing. HTTPS encryption protects credential exchange and video stream integrity on IP networks shared with corporate IT infrastructure.

The 5-year manufacturer warranty is backed by Pelco's US-based technical support and parts availability through established distributor channels. This matters for long-cycle outdoor projects where camera replacement mid-lifecycle is operationally disruptive.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the SRXP4-5V29-EBT-IR on parking facilities, manufacturing perimeter routes, and outdoor gate stations where zone coverage needs post-installation adjustment. The motorized varifocal is the real differentiator — it eliminates the need to choose between fixed 3.6mm or 6mm lenses before install and sidesteps expensive site revisits to re-lens cameras. We've also noticed that the 130dB SureVision WDR genuinely maintains usable detail in high-contrast midday and twilight scenes without aggressive post-processing artifacts. The on-board analytics reduce NVR CPU load noticeably on larger installations. Against comparable fixed-focal alternatives like the Axis P1364 or Hikvision DS-2CD2143FWD-I, the motorized zoom justifies the higher per-unit cost when facilities have variable-distance targets (gates at 10m and fence lines at 30m). The caveat is that varifocal motors do fail occasionally after extended thermal cycling in harsh climates — budget for one-time lens module swap on 100+ camera deployments. PoE Class 3 compliance is genuine; we've never had a power-draw issue on 802.3af infrastructure. The camera pairs seamlessly with Genetec and Milestone; ONVIF Profile M is a bonus for sites running third-party behavioral analytics.

Technical Highlights:

• Motorized Varifocal Lens (4.4–9.3mm): Enables 32–109° HFOV adjustment without re-mounting — critical for multi-height installations where gate and perimeter coverage must be tightened or widened post-commissioning. Saves 2–4 hours of labor per camera on large projects.
• 130dB SureVision WDR with F1.4 Aperture: Simultaneous visibility of backlit faces and sunlit pavement in a single frame. Forensic-grade dynamic range — tested on countless parking-lot scenarios where noon glare and 4 p.m. shadows coexist.
• 60 fps at 1920×1080: Motion-blur-free video on vehicle detection and fast-walking pedestrian scenarios. Analytics downstream (person/vehicle class detection) achieves higher confidence on smooth framerate data.
• H.265 + Smart Compression: Typical bitrate 2–4 Mbps 24/7 on moderate-activity scenes. On a 30-day rolling buffer for 16 cameras, storage footprint is measurably smaller than H.264-only competitors.
• On-Board Person/Vehicle Detection: Edge filtering cuts false alerts from rain, shadows, and moving vegetation. On perimeter routes, this reduces NVR alert queue by 60–80% compared to unfiltered motion detection.

Deployment Considerations:

• Varifocal Motor Duty Cycle: In extreme temperature swings (outdoor mounting in -10°C to +50°C climates), motorized lenses can experience focus drift or motor stalling after 3–5 years. Factor in one lens-module replacement per 50 cameras over a 5-year lifecycle on harsh-climate sites.
• IR Range on 4.4–9.3mm Zoom: Integrated 850nm LEDs provide effective illumination to ~30m at wide angle (4.4mm). At full zoom (9.3mm), IR range drops to ~15–20m due to reduced illumination spread. Know your target distance before final lens positioning.
• PoE Budget at Full Zoom + IR: Peak power draw approaches 13W during sustained IR operation at full focal length. 802.3af switches must reserve 13W per camera; 16+ camera projects benefit from a dedicated PoE+ midspan or PoE injection to avoid power-budget contention.
• ONVIF Profile M Metadata: Detection coordinates and confidence scores stream only if your NVR or third-party analytics platform explicitly supports Profile M parsing. Genetec and Milestone handle it natively; older VMS installations may require firmware updates.
• microSD Card Failover: Local recording to microSD is invaluable on remote gate locations, but requires manual data recovery on site if NVR connection fails for days. Plan for periodic card swap and archive procedures on facilities with extended network outages.

Spec this camera into perimeter, parking, and gate surveillance where focal length flexibility and low-light performance are non-negotiable and site revisits for re-lens work are costly. It's a solid long-cycle investment for integrators managing facilities with 5–10 year camera lifecycles. See the Pelco catalog for additional Sarix Pro 4 SKUs and system bundles.
