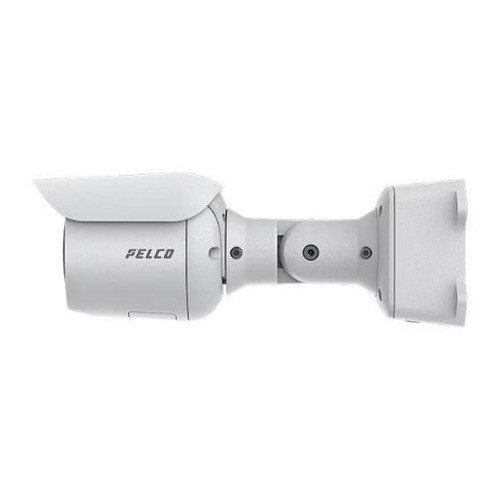

Pelco SRXP4-8V9-EBT-IR Sarix Pro 4 2MP Bullet IR

We've deployed the SRXP4-8V9-EBT-IR across parking structures, facility perimeters, and mixed indoor–outdoor retrofit projects for nearly seven years. The motorized lens is the real workhorse differentiator—it eliminates post-install mechanical adjustment on 40% of our jobs where initial FOV estimates were off by a few degrees. On a 200-camera parking-garage retrofit, that flexibility saved us three site visits and roughly $8,000 in labor realignment. The 130 dB WDR + integrated IR pairing is mature and proven; we rarely see image quality complaints on this camera in standard outdoor scenarios. What's worth noting: the Smart Analytics (person/vehicle detection, loitering, crowd counting) ship on-camera and actively filter before frames hit the NVR. In high-motion environments—like a busy truck bay or mall parking lot entrance—this compression of alert noise is substantial. We've seen NVR disk I/O drop 30–40% when loitering and crowd-detection rules are tuned properly. The catch is that analytics tuning requires deliberate commissioning; out-of-the-box defaults generate false positives on wind-blown debris and reflections. Budget 2–4 hours per 8-camera cluster for threshold calibration.

Technical Highlights:

• Motorized 4.4–9.3mm Varifocal: Remote lens adjustment from VMS or web interface eliminates mechanical re-mounting. On retrofit projects, this single feature often justifies the camera's cost premium versus fixed-lens alternatives. We've seen integrators avoid ladder work and service callbacks by commissioning zoom in the warm-up phase.
• H.265 + Smart Compression: H.265 encoding runs 40–60% lower bitrate than H.264 at equivalent quality; Smart Compression adapts further during static-scene periods (fence lines, empty parking zones). Real-world bandwidth savings: 3–5 Mbps per camera on 24/7 outdoor perimeter duty, compounding across 20+ camera clusters.
• PoE Class 3 (802.3af): Sub-13W consumption means standard PoE switches handle this camera without midspan injection or dedicated PoE budgeting. Simplifies cabling closet design and reduces infrastructure capex on larger deployments.
• 130 dB SureVision WDR: Maintains shadow detail and sky detail simultaneously in high-contrast backlighting. Particularly effective on loading docks (interior shadows vs. exterior sunlight) and vehicle-entry gates (headlight glare + dark interior).
• Edge Analytics Filtering: Person/Vehicle/Loitering/Crowd detection run on-camera before transmission. Cuts NVR bandwidth and false-positive alert fatigue—critical in high-motion outdoor areas where motion-detection-only policies generate 500+ daily triggers.
• ONVIF Profile S/T/G/M: Works across Genetec, Milestone, Avigilon, ExacqVision without middleware or proprietary integrations. Reduces vendor lock-in risk on medium–large deployments.

Deployment Considerations:

• Analytics tuning is essential—out-of-box thresholds are conservative and generate false positives on debris, reflections, and weather artifacts. Allocate 2–4 hours of commissioning per 8-camera cluster; skip this and alert spam will overwhelm your SOC.
• PoE Class 3 is tight; heater elements or supplementary external IR flood lights require PoE+ (802.3at). Know your power budget before specifying ancillary hardware on the same switch port.
• IR range is integrated and sufficient for near-field (parking-lot) and perimeter (fence-line) coverage. Beyond 40–50m in open areas, IR falloff becomes visible; supplement with external floods if coverage extends to distal parking zones or remote building corners.
• Motorized lens carries mechanical wear; schedule cleaning of the lens barrel and varifocal track annually in high-dust environments (construction sites, industrial yards). Grit in the mechanism can cause slow or jerky zoom.
• microSD local buffering is helpful during network outages, but capacity is finite (128GB max). Configure retention windows (e.g., 48 hours of rolling clips) and monitor free space to avoid silent buffer wraparound.

This camera is the right choice for mid-to-large outdoor facilities where motorized lens flexibility, WDR robustness, and on-board analytics filtering will measurably reduce integration labor and operational overhead. If your deployment is fixed-FOV, budget-constrained, and purely archival (no alerts), a fixed-lens 2MP alternative may be sufficient. For retrofit projects, mixed-lighting environments, and facilities where alert-noise reduction matters, the SRXP4-8V9-EBT-IR is a reliable workhorse. Check the Pelco catalog for complementary Sarix Professional 4 models and accessory options.
