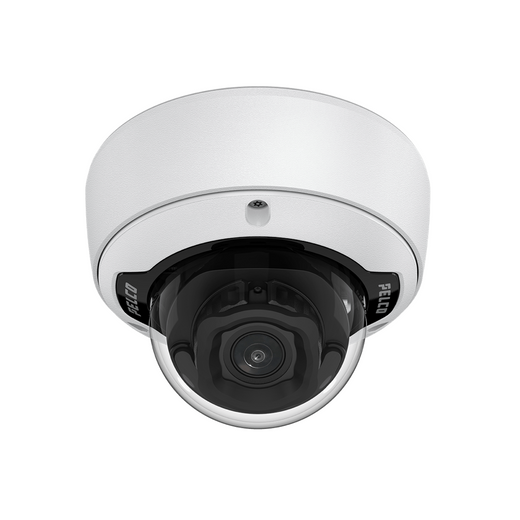

Pelco SRXP4-2V10-EMD Sarix Pro 4 2MP Outdoor Dome Camera
The Pelco SRXP4-2V10-EMD is a purpose-built 2MP outdoor mini-dome for integrators and IT architects managing enterprise surveillance across retail, industrial, transportation, and government sites. Part of the Sarix Professional 4 series, this camera balances field flexibility with straightforward deployment — motorized focus/zoom, edge-based analytics, and PoE power mean fewer site revisits and lower licensing overhead.
Key Features
- 2MP resolution (1920×1080) from 1/2.8" progressive CMOS sensor: Full HD capture preserves facial detail and license plates from moderate distances without the storage/bandwidth demands of 4MP or higher. Realistic for multi-camera deployments on modest bandwidth pipes.
- 4.4–9.3 mm motorized varifocal lens, 32–109° HFOV: Field technicians remotely adjust zoom and focus from the VMS without a truck roll — cuts commissioning time and lets you adapt coverage as site conditions or tenancy changes.
- 60 fps maximum frame rate: Freezes fast-moving subjects (vehicle pass-throughs, running suspects) without judder. Matters for incident review; overkill for stationary perimeter monitoring but included if you need it.
- 130 dB SureVision wide dynamic range: Handles bright doorways, reflective glass, and backlit parking lots without washout. Real-world payoff: license plates readable in mixed sun/shadow without manual exposure tweaking.
- Extreme low-light: 0.01 lux color, 0.003 lux mono: Night vision without dedicated IR — useful in areas with ambient streetlight or when IR washout is a concern (retail interiors with reflective surfaces). Day/night mechanical IR-cut filter and F1.4 aperture are standard.
- Pelco Smart Analytics (edge-based): Person/vehicle detection, loitering, directional crossing, beam crossing, crowd detection, tamper alerts — all processed on-camera. Eliminates server licensing; reduces false alerts by running locally; enables camera-level triggers for alarm relay or NVR events.
- H.264, H.265, Smart Compression codec support: H.265 cuts bitrate roughly 40–50% versus H.264 at equal quality — meaningful on 24/7 recording across 10+ cameras. Smart Compression adds adaptive bitrate for variable scenes, saving storage without losing detail on motion.
- IP66 weather protection and IK09 vandal rating: Direct rain, dust, and wind won't compromise the dome. IK09 means it handles moderate impact (not sledgehammer-proof, but resists thrown objects and careless bumps). Skip this model if you need full submersion (IP67) or heavy-duty industrial environments with direct spray.
- PoE (Class 3, typical 13W): Single Ethernet cable for power and video — no separate 12VDC injectors or power supplies cluttering rack space. Fits within standard 802.3af budgets; won't strain a modest PoE switch serving a handful of cameras.
- ONVIF Profile S, T, G, M compliant: Integrates with third-party VMS platforms (Milestone, Genetec, Axis Camera Station) or Pelco VideoXpert without vendor lock-in. Profile M adds metadata (analytics events) — important if your VMS ingests alarm data from the camera.
- 5-year Pelco warranty: Standard in the Professional series; covers defects in materials and workmanship. Check with your distributor on regional coverage.
Integration & Compatibility
The SRXP4-2V10-EMD ships configured for standard IP camera deployments. Integrates natively with NVRs and VMS platforms supporting ONVIF Profile S (minimum for video streaming and configuration). Edge analytics are available to any ONVIF client; Pelco VideoXpert provides richer alerting and PTZ integration. Government sites benefit from NDAA Section 889 compliance (no restricted components).
For PoE planning: draw ~13W typical at 60 fps, Full HD, with WDR and analytics enabled. This leaves headroom on most enterprise switches. If running dozens of cameras, verify your PoE switch has sufficient per-port and aggregate power budgets.
Mounting: standard M12 or M20 ceiling/wall bracket. Verify door/soffit clearance before ordering — the motorized lens housing adds height compared to fixed-lens domes.
When to Choose a Different Model
If you need infrared illumination (true night-vision in zero-ambient light), Pelco offers an IR-equipped variant in the same series with integrated 850nm LEDs. For indoor-only deployments, the SRXP4-2V10-IMD delivers identical optics and analytics without IP66 ruggedness, at lower cost. For higher resolution (perimeter fencing, vehicle detection at distance), step up to 4MP or 5MP within the Sarix Professional line.
Frequently Asked Questions
Q: Is the SRXP4-2V10-EMD NDAA Section 889 compliant?
A: Yes. The camera contains no Huawei, Hikvision, or Dahua components and meets Section 889 restrictions. Government and federal contractors can deploy without compliance review delays.
Q: Does the SRXP4-2V10-EMD work with Milestone XProtect?
A: Yes, via ONVIF Profile S. Configure the camera's IP address in XProtect as a generic ONVIF device. Edge analytics (person detection, loitering) are available as native events if XProtect is configured to ingest Profile M metadata.
Q: What's the warranty on the SRXP4-2V10-EMD?
A: 5 years from date of purchase, covering defects in materials and workmanship. Regional support and RMA terms vary by distributor — confirm when ordering.
Q: Can I remotely adjust focus and zoom on the SRXP4-2V10-EMD?
A: Yes. The motorized 4.4–9.3 mm lens supports full remote focus and zoom from any ONVIF-compliant VMS or Pelco VideoXpert. No on-site calibration needed after initial installation.
Q: What's the minimum light level for the SRXP4-2V10-EMD?
A: 0.01 lux in full color (typical night-lit parking lot); 0.003 lux in mono (black and white, no color data). In absolute darkness or deep shadows, the mechanical day/night filter switches to mono mode for maximum sensitivity.
Q: Do I need a separate power supply for the SRXP4-2V10-EMD?
A: No. It draws under 13W and runs over standard 802.3af PoE from any enterprise network switch. A single Ethernet cable supplies both power and video.
The SRXP4-2V10-EMD hits a pragmatic middle ground for multi-camera outdoor deployments. The motorized lens (4.4–9.3 mm, 32–109° HFOV) is the real differentiator — it lets you fine-tune framing from the VMS after install, which saves field revisits when coverage requirements shift. At 2MP with a 1/2.8" sensor, you're getting solid facial recognition at 10–15 feet and readable license plates at 20–30 feet, depending on lighting. The 60 fps frame rate is there if you need it for fast-motion scenes, but don't assume it's required unless you're capturing highway traffic or athletic facilities.
Technical Highlights:
- H.265 codec with Smart Compression: Running H.265 on a 2MP feed cuts bitrate roughly 40–50% versus H.264 — on a 24-hour recorder with 10+ cameras, that's meaningful savings in storage and network load. Smart Compression adapts bitrate to scene complexity, further reducing waste on static scenes without sacrificing motion clarity.
- Edge analytics (person/vehicle detection, loitering, beam crossing): Processing happens on the camera itself, not on a server. Real benefit: faster alerting, no licensing fees, and the ability to trigger NVR events or relay outputs directly from the camera. False positives are lower when analytics run locally on the actual video stream.
- 130 dB WDR and 0.01 lux color sensitivity: WDR flattens backlit scenes (glass storefronts, bright doorways against dark hallways). Low-light color at 0.01 lux means you'll preserve color detail in night-lit parking lots without needing IR illumination. Switch to mono at 0.003 lux and it handles near-total darkness with mechanical day/night filtering.
Deployment Considerations:
- Motorized lens requires careful commissioning: The remote focus/zoom flexibility is powerful, but if your VMS doesn't support ONVIF lens commands well (some platforms lag here), you'll be adjusting focus through manufacturer-specific tools. Confirm your VMS integration before relying on field adjustments.
- PoE power is real but borderline: At typical 13W draw, this camera fits in 802.3af. If you're stacking 20+ cameras on a single PoE switch, verify aggregate power budgets — it adds up quickly, especially if other devices on the same switch also demand power.
- IP66 is outdoor-rated, not industrial-grade: Direct rainfall and dust won't kill it, but sustained spray (car wash, heavy misting systems) or full submersion isn't covered. For shipping dock spray systems or boat launches, consider an IP67 model or mount it further back.
Best fit: retail perimeter security, parking structure entry/exit points, multi-tenant commercial facilities where you need remote zoom capability to adjust coverage without callbacks, and government sites requiring NDAA compliance. The analytics processing on-camera makes sense if your NVR is bandwidth-constrained or doesn't support server-side AI licensing.
