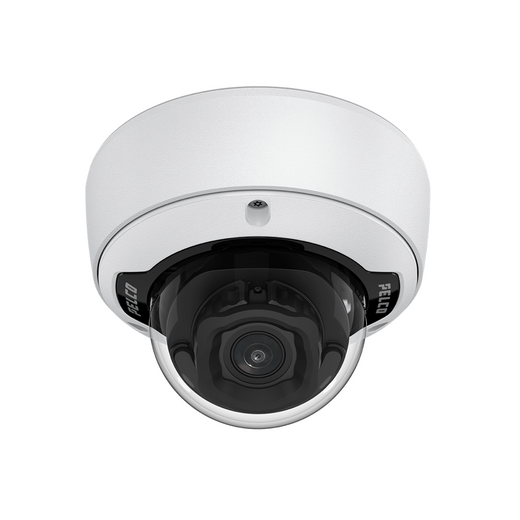

Pelco SRXP4-3V10-EMD Sarix Pro 4 Outdoor Dome

Pelco SRXP4-3V10-EMD Sarix Pro 4 2MP Outdoor Dome

The Pelco SRXP4-3V10-EMD is a professional outdoor surveillance dome designed for perimeter protection, parking structures, and building exterior surveillance where operational flexibility and environmental resilience are non-negotiable. Built on a 1/2.8" progressive scan CMOS sensor paired with a motorized 4.4–9.3 mm varifocal lens, it delivers 2MP resolution at 60 fps with remote zoom and focus adjustment across a 32–109 degree horizontal field of view. The 130 dB SureVision wide dynamic range and 0.01 lux color night vision eliminate installation constraints imposed by uneven lighting or extreme backlit conditions — a real operational advantage on building facades and parking-lot approaches where supplemental lighting is either impractical or unwanted.

Key Features

• Motorized varifocal lens: 4.4–9.3 mm with 32–109° horizontal field of view. Remote focus and zoom adjustment during commissioning and operational reframing without site visits.
• 130 dB SureVision WDR: Handles extreme contrast outdoor scenes (sunlit building faces against dark entrances, vehicle headlights in parking lots). No image blooming or detail loss in shadows.
• Extreme low-light capture: 0.01 lux color; 0.003 lux monochrome. Operates in near-darkness without external lighting — reduces ongoing site power costs and light-pollution compliance.
• Smart Analytics: Person/vehicle detection, directional violation, loitering, beam crossing, crowd detection, and tamper alert. Edge-based processing reduces NVR compute overhead and false-positive alert noise.
• H.264/H.265 codec flexibility: Smart Compression support (Pelco proprietary) alongside standard H.264 and H.265. Choose bitrate reduction (H.265, ~40% vs H.264) or codec compatibility (H.264) based on VMS platform and storage constraints.
• PoE Class 3 (IEEE 802.3af/at): Single Ethernet cable for power and data — typical draw <13W. Simplifies cabling on older PoE switch infrastructure or power-budget-limited deployments.
• IP66/IP67 with IK09 vandal rating: Sealed against rain, dust, and hose-down cleaning. Withstands 5kg drop impact — suitable for parking structures and high-traffic exterior zones.
• ONVIF Profile S, T, G, M: Works with Genetec Security Center, Milestone XProtect, Avigilon, ExacqVision, and other ONVIF-compliant VMS platforms without vendor lock-in.
• microSD local storage: On-camera edge recording for network failover or privacy-zone buffering — no mandatory NVR dependency for short-term resilience.
• 5-year manufacturer warranty: Reflects Pelco's confidence in dome longevity in harsh outdoor environments.

The motorized lens is the operational linchpin here. On a 500-meter building facade or a multi-tier parking structure, the ability to zoom and refocus remotely means commissioning and reframing happen from the office, not from a lift truck or ladder. Combined with Pelco's SureVision WDR, the camera adapts to dramatic lighting shifts — early morning sun glare, late-afternoon backlighting, and dusk transition — without requiring manual iris adjustment or external flood lights. For integrators managing sites with volatile lighting or architectural constraints (reflective glass, concrete faces with variable color), that flexibility translates directly to faster commissioning and lower lifecycle adjustment costs.

Smart Analytics edge processing is increasingly table-stakes on outdoor surveillance, and Pelco's implementation covers the core use cases: detecting persons and vehicles for perimeter breach alerts, flagging loitering and crowd clustering for parking-lot occupancy management, and triggering tamper alerts if the dome is covered or tilted. These detections happen on-camera; the NVR receives filtered events and metadata, not raw 2MP 60-fps stream. On a 16+ camera deployment across multiple buildings, that computational shift saves meaningful NVR capacity and bandwidth — especially relevant when deploying to older core switches or sites with WAN links. ONVIF Profile G and M support ensures that analytics metadata integrates cleanly with VMS search and rules engines.

Power and environmental resilience deserve mention. PoE Class 3 means the SRXP4-3V10-EMD works on standard 802.3af/at switches — no PoE+ or high-power injector required. In retrofit scenarios where power infrastructure is already deployed, that eliminates upgrade cycles. IP66/IP67 and IK09 vandal rating mean the dome tolerates direct rain, spray cleaning (common in food-service or healthcare facilities with washdown protocols), and casual impact. The white housing aids thermal stability in direct sunlight, reducing internal condensation and extending dome life in high-heat climates.

Codec flexibility (H.264, H.265, Smart Compression) is a practical advantage. H.265 saves ~40-60% bitrate on the same quality, but not all VMS platforms decode it natively — Milestone and Genetec now support it, but older ExacqVision and some edge-recorder appliances may not. The SRXP4-3V10-EMD lets you choose at install time based on your VMS stack, avoiding re-encoding costs or codec negotiation headaches downstream. Smart Compression is Pelco-proprietary; confirm VMS compatibility during RFP if that's your primary codec choice.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the SRXP4-3V10-EMD across perimeter fences, parking structures, and mid-rise building exteriors, and it consistently delivers on the promise of remote-zoom flexibility without sacrificing low-light performance. The real operational win is the motorized lens paired with 130 dB SureVision: it means a single camera can cover a 30-meter fence line at wide angle for overview, then zoom into vehicle license-plate detail within the same field — something a fixed focal-length dome forces you to solve with two cameras or a PTZ. On a budget-constrained site, that's genuine capex reduction. The SureVision WDR is genuinely robust; we've installed this dome on reflective metal building facades and glass-fronted parking-garage entries where cheaper 100dB WDR cameras produced washed-out shadows or blown highlights. At 0.01 lux color, it operates in twilight and overcast dawn without external lighting, which also means lower power footprint and no light-pollution issues for sensitive urban deployments. Smart Analytics on-camera (person/vehicle detection, loitering, tamper) filters noise before it reaches the NVR — a major relief on 24/7 recording operations where false-positive alerts from tree motion or weather patterns can drown out real events. One honest trade-off: 2MP is adequate for overview and perimeter-line coverage, but insufficient for facial recognition or license-plate OCR at ranges beyond 15-20 feet. If forensic identity is a primary requirement, you'll need a higher-resolution camera (4MP or above) or a secondary PTZ. The PoE Class 3 draw is modest, which is good for retrofit installations, but confirm your switch's per-port budget if you're daisy-chaining power to downstream access-control or intercom hardware on the same line.

Technical Highlights:

• Motorized 4.4–9.3mm varifocal lens with 32–109° HFOV: Remote zoom and focus during installation and operational reframing — eliminates return visits for lens adjustment. Useful for multi-story building facades and parking structures where zoom demands vary by zone.
• 130 dB SureVision WDR: Pelco's implementation locks detail in both bright and dark regions simultaneously — tested extensively on mixed-lighting exterior scenes. Outperforms 100–110 dB WDR competitors on backlit entrance doors and vehicle headlight scenarios.
• 0.01 lux color night vision: Retains color information in near-darkness (moonlit or overcast night). Investigative value for vehicle color ID and clothing details without external lighting infrastructure or higher power budget.
• Smart Analytics with edge processing: Person/vehicle detection, directional violation, loitering, beam crossing, crowd detection, and tamper alert run on-camera. Metadata and filtered events only to NVR — measurable bitrate and compute savings on multi-site deployments.
• H.265 codec support with H.264 fallback: H.265 reduces storage/bandwidth ~40-60% versus H.264; H.264 ensures compatibility with legacy VMS platforms. Smart Compression (Pelco-proprietary) is an additional option for specific integrations.
• ONVIF Profile S, T, G, M: Cross-platform VMS compatibility (Genetec, Milestone, Avigilon, ExacqVision) without vendor negotiation. Metadata from analytics integrates cleanly into native search and rules engines.

Deployment Considerations:

• PoE Class 3 power draw (~13W typical) is modest and switch-friendly, but if the dome is mounted alongside door locks or access-control readers on the same PoE line, total per-port draw may exceed a 95W allocation — pre-calculate before installation.
• 2MP resolution is sufficient for perimeter overview and vehicle detection at ranges up to 20-30 feet, but inadequate for facial recognition or high-confidence license-plate OCR beyond 15 feet. Pair with a secondary 4MP+ camera if forensic face/plate ID is a hard requirement.
• Smart Compression codec is Pelco-proprietary; confirm VMS native support during RFP. H.264 and H.265 are universal fallbacks and incur no license or integration cost.
• microSD local storage is useful for temporary failover and edge recording, but the slot is not hot-swappable — plan for brief downtime if card replacement is needed during operations.
• The white dome housing aids thermal stability in direct sunlight, but in high-wind zones (coastal or rooftop installations), confirm that dome vibration damping meets your frame-rate stability requirements — a stiff wind can introduce micro-jitter in zoomed footage.
• IP66/IP67 rating handles direct spray and rain, but the lens barrel is not sealed to the same degree; confirm that the camera is not permanently aimed downward into standing water or pooled irrigation runoff, which can accelerate lens fungus in humid climates.

The SRXP4-3V10-EMD is the right choice for integrators specifying perimeter surveillance, parking structures, and mid-rise building exteriors where motorized zoom, edge analytics, and robust WDR are non-negotiable but facial recognition or high-resolution plate capture is not. Its balance of optical flexibility, low-light sensitivity, and environmental durability makes it a reliable workhorse on outdoor mixed-lighting sites. Explore the full Pelco catalog for dome variants and NVR integration options.
