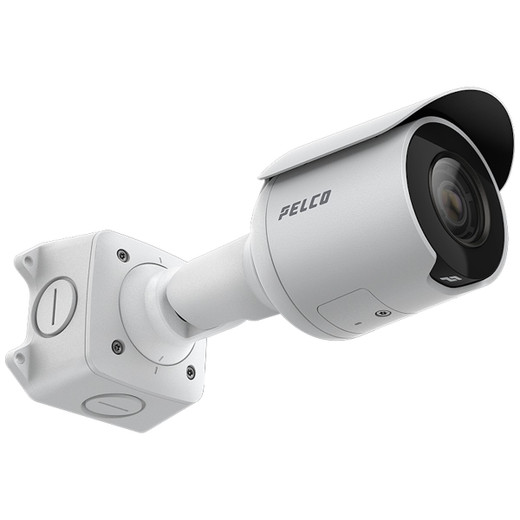

Pelco SRXP4-3V10-EBT-IR Sarix Pro 4 Bullet IR Camera

Pelco SRXP4-3V10-EBT-IR Sarix Pro 4 Bullet IR Camera

The Pelco SRXP4-3V10-EBT-IR is a professional 2MP outdoor bullet camera from the Sarix Professional 4 series, engineered for reliable perimeter surveillance in demanding environments. Built with integrated IR illumination and a motorized varifocal lens, this camera delivers flexible coverage for driveways, parking areas, and building perimeters with exceptional low-light performance.

Key Features

• 2MP progressive scan CMOS sensor (1/2.8") with 1920 x 1080 maximum resolution
• 4.4-9.3 mm motorized varifocal lens with 32-109 degree horizontal field of view
• Integrated IR illumination for true day/night surveillance (0 lux with IR)
• 130 dB SureVision wide dynamic range for high-contrast environments
• Smart Analytics: Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, Tamper Alert
• H.264, H.265, and Smart Compression video encoding options
• PoE Class 3 power; microSD local storage support
• IK09 impact resistance and IP66/IP67 outdoor-rated construction
• ONVIF Profile S, T, G, and M compliance
• HTTPS encryption for secure transmission

Technical Highlights

The 130 dB SureVision wide dynamic range ensures clear imagery in mixed lighting conditions, while exceptional low-light sensitivity (0.01 lux color, 0.003 lux mono, 0 lux with IR) enables reliable night operation without supplemental lighting. The motorized varifocal lens provides on-demand zoom and focus adjustment, eliminating the need for manual recalibration during installation. H.265 Smart Compression reduces bandwidth and storage requirements compared to standard H.264 encoding, making this camera cost-effective for large deployments.

On-board Smart Analytics processes video at the edge, detecting people and vehicles, identifying loitering behavior, monitoring designated crossing lines, and flagging tampering attempts—reducing reliance on centralized VMS resources and enabling faster incident response.

Applications

Ideal for outdoor perimeter protection, parking lot surveillance, driveway monitoring, and building entry points. The rugged IK09-rated construction and outdoor sealing make it suitable for exposure to weather and minor impact.

Integration

Native ONVIF compliance ensures compatibility with standard VMS platforms. Confirm your VMS supports H.265 decoding for optimal compression benefits. Powered via PoE (802.3af/at) or local supply. 5-year warranty included.

Product Documentation

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I spec the SRXP4-3V10-EBT-IR regularly for perimeter and parking lot projects where you need reliable coverage without running separate IR illuminator circuits. The motorized varifocal lens is a time-saver during commissioning—you can dial in your field of view remotely instead of repositioning a ladder three times to get framing right. At 130 dB WDR, it handles backlit loading docks and mixed shadow/sunlight better than older fixed-range cameras, and the on-board analytics let you set up crossing lines or loitering zones without taxing your VMS server.

One thing to confirm up front: if you're running an older VMS or hybrid recorder, verify it decodes H.265 properly. Some legacy systems will force the camera back to H.264, which defeats the bandwidth savings. Also, the 4.4–9.3 mm lens gives you flexibility, but it's not a long-range tool—expect usable facial detail out to about 30–40 feet depending on lighting. For wider lots or distant gates, you'll want to step up focal length or add a second camera.

Key Specifications:
Color: White
