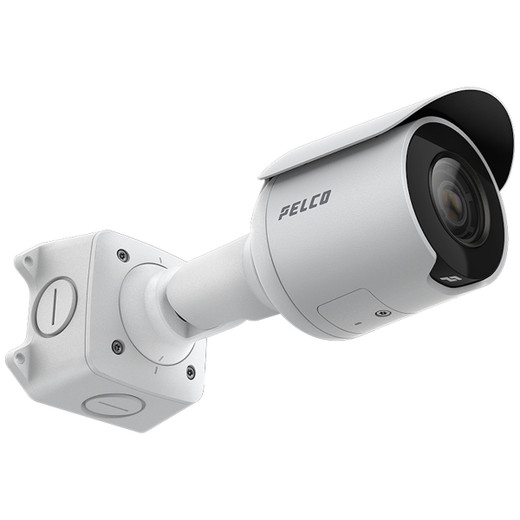

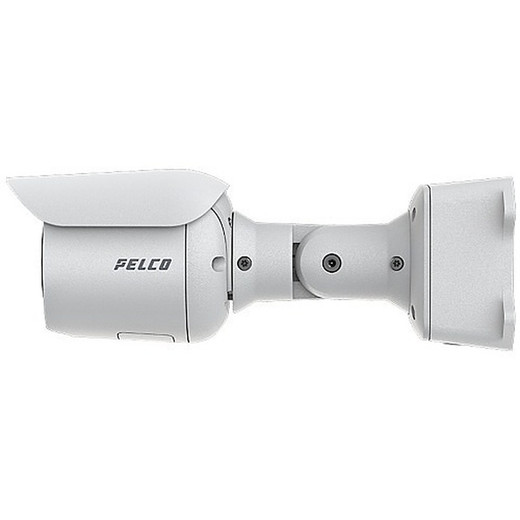

Pelco SRXP4-5V10-EBT-IR Sarix Pro 4 Bullet IR Camera

Pelco SRXP4-5V10-EBT-IR Sarix Pro 4 Bullet IR Camera

The Pelco SRXP4-5V10-EBT-IR is a professional-grade 2MP outdoor bullet camera from the Sarix Professional 4 series, engineered for perimeter protection, parking structures, and transportation corridors. Featuring a motorized varifocal lens and integrated IR illumination, this camera delivers high-performance surveillance with advanced on-board analytics and exceptional low-light capability.

Key Features

• 2MP 1/2.8" progressive scan CMOS sensor with 1920 x 1080 maximum resolution
• Motorized 4.4-9.3 mm varifocal lens with 32–109° horizontal field of view
• Integrated IR illumination for 0 lux nighttime imaging
• 130 dB SureVision Wide Dynamic Range for challenging lighting conditions
• Smart Analytics: Person/Vehicle Detection, Directional Violation, Loitering, Beam Crossing, Crowd Detection, and Tamper Alert
• H.264 and H.265 video compression with Smart Compression
• PoE (Class 3) or 12/24 Vdc powered
• IK09 vandal rating and outdoor durability
• ONVIF Profile S, T, G, and M compliance
• microSD local storage support
• HTTPS encryption for secure transmission
• 5-year warranty

Technical Highlights

The 2MP CMOS sensor captures detail at 60 fps, with exceptional low-light performance rated at 0.01 lux in color mode and 0.003 lux in monochrome. The motorized varifocal lens enables flexible field-of-view adjustment during installation and operation. The 130 dB SureVision WDR ensures clear imaging in high-contrast environments, while integrated IR enables continuous 24/7 monitoring without supplemental lighting.

Multi-codec support for H.264 and H.265 reduces storage and bandwidth consumption. On-camera Smart Analytics process person and vehicle detection, loitering alerts, directional violations, beam crossing, crowd analysis, and tamper detection—minimizing false alarms and reducing server load.

Applications

Ideal for outdoor perimeter security, parking lot monitoring, transportation hubs, and facility access points. The rugged IK09-rated housing withstands impact and weather, while Ethernet PoE connectivity simplifies deployment in remote locations. ONVIF compliance ensures integration with enterprise VMS platforms.

Product Documentation

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I spec the SRXP4-5V10-EBT-IR for clients who need reliable perimeter coverage in variable lighting—think loading docks, parking structures, or gate approaches where you're dealing with headlights, shadows, and overnight darkness. The motorized varifocal lens is practical; you can dial in your field of view remotely instead of sending a tech back up a ladder. The onboard analytics handle person versus vehicle classification reasonably well, which cuts down on nuisance alerts from wind-blown debris or passing animals.

One thing to confirm upfront: verify your VMS supports Pelco's analytics metadata if you want those detections to trigger specific actions or appear in search filters. Some platforms only pull the video stream and ignore the camera's onboard intelligence. Also, the 9.3 mm top end on the lens gives you about 32° horizontal at the wide end—fine for most entry points, but if you're covering a long fence line or need real distance identification, you may need a tighter lens model or a second camera for overlap.

Key Specifications:
Color: White
