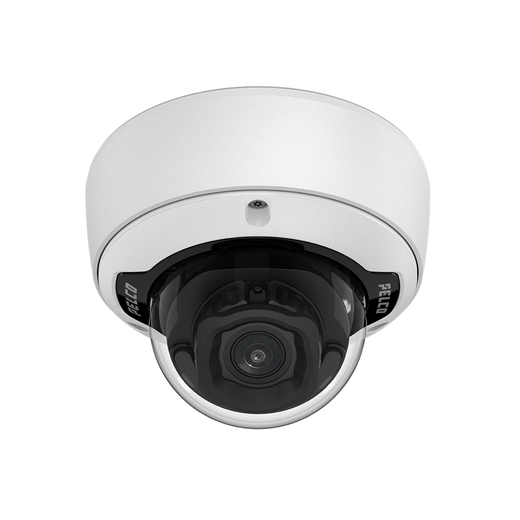

Pelco SRXP4-5V10-EMD 2MP Outdoor Dome Camera
The Pelco SRXP4-5V10-EMD is a professional outdoor surveillance dome purpose-built for perimeter security and wide-area monitoring where you need flexibility in framing without field visits. Built on a 1/2.8" progressive-scan CMOS sensor, this camera delivers 2MP (1920 × 1080) resolution at 60 fps maximum frame rate. The motorized 4.4–9.3 mm varifocal lens provides a 32–109° horizontal field of view, letting you dial in coverage remotely across parking lots, building facades, and access corridors.
Key Features
- 2MP 1/2.8" CMOS sensor, 60 fps max: Delivers 1080p resolution at broadcast frame rates — practical for real-time monitoring and forensic clarity. At 60 fps, motion artifacts are minimal, which matters for tracking fast-moving subjects across open ground.
- Motorized varifocal 4.4–9.3 mm lens (32–109° HFOV): No field visit required to adjust zoom or focus. Remotely frame a specific area — wide perimeter coverage or tighter entrance detail — from your management interface. Reduces installation labor and revisits.
- 130 dB SureVision wide dynamic range: Handles simultaneous bright sunlight and deep shadows in a single frame. Parking lots and building perimeters with mixed lighting no longer require exposure compromise — both the sunny lot and shaded entrance remain visible and usable.
- H.265 and H.264 codecs with Smart Compression: H.265 cuts storage overhead roughly 40–60% versus H.264 depending on scene complexity. On a 24/7 multi-camera system, this translates to tangible NVR cost savings. Fallback to H.264 if your VMS lacks H.265 decoder support.
- Extreme low-light: 0.01 lux color, 0.003 lux mono: Usable color imagery under moonlight and street-lit conditions. Mono mode at 0.003 lux is essentially surveillance-grade night-vision without infrared — useful where IR wash-out or subject privacy requires visible-light restraint.
- Edge-based Smart Analytics: On-camera person and vehicle detection, directional violation, loitering, beam crossing, crowd detection, and tamper alert. Processing happens locally — your NVR or VMS receives only alerts and metadata, not full bandwidth video streams when configured for event-driven recording.
- IP66/IP67 environmental rating and IK09 vandal resistance: IP66 handles direct rain, spray, and blowing dust without degradation. IP67 means brief submersion won't kill it (though this is not a pool camera). IK09 resists impact from thrown objects — important for accessible outdoor mounts where vandalism is a risk.
- PoE Class 3 powered: Single CAT6/CAT6a cable delivers power and data. Typical draw is under the 13W Class 3 limit, so standard 802.3af PoE switches handle it without needing PoE+ injectors. Check your switch power budget if running dozens of units.
- HTTPS encryption and ONVIF Profile S/T/G/M: HTTPS secures the video stream in transit. ONVIF multi-profile compliance ensures compatibility with major VMS platforms — Milestone, Genetec, Hanwha, and others. Confirm your specific VMS version supports H.265 decoding before purchasing if that codec is mandatory for your storage budget.
- microSD local storage support: On-camera SD card backup provides edge failover if network connectivity drops. Useful in locations where NVR replication is impractical.
- 5-year warranty: Typical for professional IP cameras in this class — covers manufacturing defects and normal operational failures, not physical damage or environmental extremes beyond the rated spec.
Integration & Compatibility
The SRXP4-5V10-EMD integrates into any ONVIF-compliant NVR or VMS platform. Confirm H.265 decoder support in your recorder or software before deployment if bandwidth savings are a key requirement. Camera selection guides provide decision frameworks for matching lens ranges and analytics to your site layout. PoE provisioning is straightforward — single cable to a PoE switch port. If running long distances (>300 feet), validate cable gauge and injector capacity to maintain the required 13W at the camera end.
What's in the Box
Exact package contents are not specified in available documentation. Contact the manufacturer or distributor for a complete inclusion list before purchase.
When to Choose a Different Model
The 2MP resolution and 4.4–9.3 mm focal range suit general perimeter and mid-range monitoring. If you need tighter facial recognition or vehicle license-plate capture at distance, consider a higher-megapixel variant in the Sarix Professional 4 line. If your site requires fixed, wide-angle coverage without remote zoom adjustment, a fixed-lens dome variant would reduce cost and complexity.
Frequently Asked Questions
Q: What VMS platforms support the Pelco SRXP4-5V10-EMD?
A: The camera is ONVIF Profile S, T, G, and M compliant, which means it works with any ONVIF-compatible VMS — Milestone XProtect, Genetec Security Center, Hanwha Wisenet, Hikvision, and others. Always confirm your specific VMS version supports H.265 decoding if you plan to use that codec for bandwidth optimization.
Q: Does the SRXP4-5V10-EMD support two-way audio?
A: Documentation does not confirm audio input or output on this model. Verify audio requirements with the manufacturer or your distributor if two-way voice communication is a deployment need.
Q: What is the warranty on the SRXP4-5V10-EMD?
A: Pelco provides a 5-year warranty covering manufacturing defects and operational failures under normal use. Environmental damage or physical impact falls outside warranty scope.
Q: How much PoE power does the SRXP4-5V10-EMD draw?
A: The camera draws under 13W, meeting IEEE 802.3af PoE Class 3 limits. Standard PoE switches deliver sufficient power without injectors, though long cable runs (>300 feet) may require voltage drop validation.
Q: Can the lens be manually adjusted after installation, or is it motorized only?
A: The varifocal lens is motorized, meaning zoom and focus are adjusted remotely via the camera interface or VMS client. No field visit is needed to reframe the scene once the dome is mounted.
Q: Is the SRXP4-5V10-EMD suitable for coastal or salt-spray environments?
A: The IP66/IP67 rating protects against rain and spray, but corrosive salt-air environments may accelerate housing degradation. Extended coastal deployments may require periodic maintenance or protective coatings beyond the standard rating. Consult Pelco's environmental datasheet for specifics.
The SRXP4-5V10-EMD is a solid fit for enterprises managing large outdoor areas where remote zoom adjustment and edge analytics reduce operational overhead. The motorized varifocal lens eliminates revisits — you frame the scene from your desk — and the 130 dB SureVision WDR handles the mixed-lighting headaches that plague parking lots and building perimeters. H.265 codec support is the real bandwidth win here, especially on multi-camera NVR systems where storage economics matter.
Technical Highlights:
- Motorized 4.4–9.3 mm varifocal (32–109° HFOV): Single cable to the dome, then adjust zoom and focus from your VMS client or API. Parking lot coverage can pivot from perimeter-wide to entrance-detail without field labor. That flexibility alone is worth the cost premium over fixed-lens alternatives.
- 130 dB SureVision WDR: Simultaneous bright sunlight and shadow detail in one frame. No exposure compromise, no rolling shutter artifacts from rapid light transitions. Real-world parking lot footage stays forensically useful across the entire dynamic range.
- H.265 + Smart Compression at 2MP/60 fps: Bandwidth overhead drops 40–60% versus H.264 on 24/7 recording. On a 16-camera system recording for 30 days, that's the difference between a 16TB and 8TB NVR — or faster network streaming over constrained WAN links.
- 0.01 lux color, 0.003 lux mono, edge analytics: Usable color under moonlight, switch to mono for further low-light gain. Person/vehicle detection and directional violation logic live on the camera, so your NVR isn't burning cycles on full-resolution video analysis — just alerts and metadata.
Deployment Considerations:
- VMS H.265 decoder support is mandatory: If your Milestone, Genetec, or Axis installation predates 2020 or runs non-standard versions, verify H.265 playback before deploying. H.264 fallback exists but eliminates the storage savings.
- PoE voltage drop on long runs: Under 13W draw is clean on standard PoE, but runs over 300 feet need conductor validation. Use the PoE calculator for your switch and cable gauge — a 1000-foot edge perimeter can exceed voltage limits without proper wire sizing.
- Motorized lens means moving parts: Gears and motors add minor maintenance risk versus fixed-lens models. Design your mount to minimize wind-induced oscillation, which can degrade focus over time.
Deploy this camera at parking structures, building perimeters, and access roads where frame flexibility and edge intelligence reduce central-system load. Skip it if your site is fixed-angle, small-footprint, or budget-constrained — a fixed-lens dome cuts cost and eliminates motor wear.
