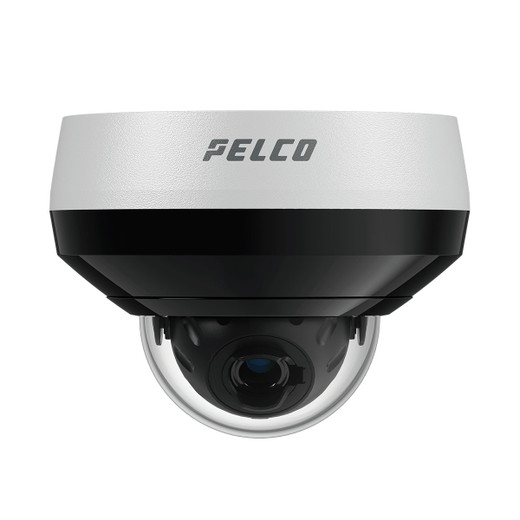

Pelco SRXP4-5V10-IMD-IR 2MP Indoor Dome Camera with Integrated IR
Overview
The Pelco SRXP4-5V10-IMD-IR is a 2MP professional indoor dome camera purpose-built for low-light and zero-light surveillance without supplemental lighting. Part of the Sarix Professional 4 series, this model combines a motorized varifocal lens, integrated infrared illumination, and native edge analytics to reduce NVR processing overhead and shrink storage footprints across 24/7 deployments. If your facility needs reliable after-hours coverage in unlit spaces—warehouses, server rooms, retail stockrooms, or office perimeters—and you want analytics running at the edge rather than taxing your recorder, this is the model to baseline.
Key Features
- 2MP 1920 x 1080 resolution at 60 fps: delivers frame-by-frame clarity for motion-sensitive applications. 60 fps ensures smooth playback and precise forensic analysis if an incident occurs, unlike 30 fps competitors that miss faster events.
- Motorized 4.4–9.3 mm varifocal lens with 32–109 degree horizontal field of view: lets you adjust framing after installation without removing or rotating the dome—a real cost-saver on retrofit jobs where repositioning means ceiling access and downtime.
- Integrated IR illumination for 0 lux operation; 0.01 lux color and 0.003 lux monochrome without IR: means the camera sees in complete darkness without external lights that draw extra power and reveal surveillance activity. The IR range (distance not explicitly specified in evidence) pairs with the variable lens to cover mid-range to far-field zones depending on your focal length choice.
- 130 dB SureVision Wide Dynamic Range (WDR): handles high-contrast scenes—doorways with bright exterior light bleeding in, loading dock ramps with sun and shadow—without washout or crushing. Fewer per-camera manual adjustments and better compliance-ready imagery.
- On-board Smart Analytics—person/vehicle detection, directional violation, loitering, beam crossing, crowd detection, and tamper alert: runs natively on the camera's processor, not your NVR. This cuts NVR CPU load, enables real-time alerts at the edge, and works even if your NVR is rebooting or under load from other cameras.
- H.265, H.264, and Smart Compression codec support: H.265 cuts storage roughly in half compared to H.264 on identical scenes—a significant factor when recording 24/7 across dozens of cameras. Confirm your NVR or VMS supports H.265 decoding before deploying; older platforms may require H.264 fallback.
- ONVIF Profile S, T, G, and M compliant: integrates with any ONVIF-capable VMS—Milestone, Genetec, Blue Iris, or others—without vendor lock-in. Profiles T, G, and M add analytics metadata, access control hooks, and streaming profiles respectively.
- IK09 vandal rating: withstands 20 joules of blunt impact (equivalent to 5 kg dropped 40 cm directly onto the dome)—suitable for high-traffic indoor areas but not the same hardness as outdoor IK10 domes.
- PoE Class 3 (under 13W typical): draws minimal power from standard 802.3af switches—most enterprise PoE switches have 15.4W budget per port, so this camera won't stress your power infrastructure or require a dedicated PoE injector.
- MicroSD card slot for local backup and edge recording: stores video locally if your NVR connection drops, recovering footage once the link restores. Useful for brief WAN outages or network maintenance windows.
- HTTPS encryption and security baseline: protects credentials and video stream in transit; confirm your VMS enforces certificate pinning or mutual TLS if you require defense-in-depth against interception.
Integration & Compatibility
The SRXP4-5V10-IMD-IR (often searched as SRXP4 5V10 IMD IR) integrates seamlessly into IP camera deployments that already standardize on ONVIF-compliant platforms. For network video recorder selection, confirm H.265 decode capability if you plan to use H.265 streams; some budget NVRs still default to H.264-only mode. A PoE power planning guide can help you map your switch capacity if you're deploying more than 8–10 cameras on a single switch.
When to Choose a Different Model
If your space is already well-lit (lobbies with consistent ambient lighting, well-lit offices), the non-IR variant of the same series reduces cost and power draw slightly. If you need higher megapixel count (4MP or 5MP) for fine detail in large open areas, Pelco's Enhanced line or higher-resolution Sarix models offer resolution upgrades at the cost of increased bandwidth and storage. For outdoor-mounted infrared domes, evaluate the weatherproof variants (IP66 or IP67) in the Sarix lineup instead.
Frequently Asked Questions
Q: What is the maximum infrared range on the SRXP4-5V10-IMD-IR?
A: The product documentation provided does not specify an exact IR illumination distance (e.g., meters or feet). The camera supports 0 lux operation with integrated IR, but the effective range depends on lens focal length, reflectivity of the scene, and camera firmware settings. Contact the manufacturer or consult the full datasheet for IR range at specific focal lengths.
Q: Is the SRXP4-5V10-IMD-IR compatible with Milestone XProtect?
A: Yes. The SRXP4-5V10-IMD-IR is ONVIF Profile S, T, G, and M compliant, which means it integrates with any ONVIF-capable VMS including Milestone XProtect. Use ONVIF discovery or manual IP entry to add the camera to your VMS.
Q: Can I use H.265 compression on the SRXP4-5V10-IMD-IR?
A: Yes. The SRXP4-5V10-IMD-IR supports H.265, H.264, and Smart Compression. However, your NVR or VMS must support H.265 decoding. Older systems may require H.264 fallback. Confirm compatibility with your recorder before deploying H.265 streams at scale.
Q: What is the warranty on the SRXP4-5V10-IMD-IR?
A: The SRXP4-5V10-IMD-IR includes a 5-year manufacturer warranty covering defects in materials and workmanship.
Q: Does the SRXP4-5V10-IMD-IR include onboard analytics, or do I need to use an external VMS?
A: The SRXP4-5V10-IMD-IR includes native on-board Smart Analytics—person/vehicle detection, directional violation, loitering, beam crossing, crowd detection, and tamper alert all run directly on the camera. This reduces NVR processing overhead and enables real-time alerts at the edge independent of your VMS.
Q: What PoE standard does the SRXP4-5V10-IMD-IR require?
A: The SRXP4-5V10-IMD-IR is a PoE Class 3 device, drawing less than 13W of power. Standard 802.3af PoE (15.4W per port on most enterprise switches) is sufficient. No PoE+ or PoE++ injector is required.
The Pelco SRXP4-5V10-IMD-IR earns its place in unlit indoor environments where traditional ambient-light cameras fail. The 130 dB SureVision WDR and integrated IR address the core problem: after-hours spaces require either supplemental lighting (power and visibility risk) or a camera designed to see in near-total darkness. This one does, without floodlights.
Technical Highlights:
- Motorized varifocal 4.4–9.3 mm lens with 32–109 degree field of view: gives you framing flexibility post-installation. On retrofit jobs, this saves the cost and downtime of repositioning mounts or adjusting camera angles after cabling is run and approved. Compare to fixed-lens models where zoom is a one-time choice.
- 60 fps at 2MP with H.265 codec support: 60 fps is overkill for most stationary surveillance, but on motion-heavy scenes (warehouse forklifts, loading docks, retail floors), it captures faster events frame-by-frame. H.265 halves your storage footprint vs. H.264 on the same quality—material savings on 24/7 multi-camera recorders.
- On-board analytics (person/vehicle detection, loitering, crossing, tamper alert): removes NVR CPU load and enables real-time edge alerts. If your NVR fails or saturates, edge analytics continue uninterrupted. Alerts fire at the camera level, not dependent on a centralized recorder.
- PoE Class 3, <13W power draw: standard 802.3af PoE ports handle this. No power budget strain on enterprise switches, no PoE+ injection required. Matters when scaling to 20+ cameras on existing infrastructure.
Deployment Considerations:
- H.265 codec support requires matching NVR/VMS decode capability. If your recorder or software is H.264-only, you can fall back to H.264, but you lose compression efficiency. Pre-confirm VMS compatibility before committing.
- IR range not explicitly published in the evidence. Effective IR distance depends on focal length, scene reflectivity, and firmware tuning. At 4.4 mm (wide), IR reach is shorter; at 9.3 mm (zoomed), it extends further. Request range specs from your supplier if mid-to-far-field IR coverage is critical.
- IK09 rating is robust for high-traffic indoor areas but not hardened like outdoor IK10 domes. If the mounting location sees heavy vibration, impact risk, or outdoor spray, escalate to a hardened outdoor variant.
Position the SRXP4-5V10-IMD-IR for warehouse, server room, and retail stockroom deployments where unlit after-hours surveillance, on-board analytics, and low PoE power are non-negotiable. It is not a substitute for outdoor IR domes or higher-resolution 4MP+ cameras in large open facilities where detail at distance drives the decision.
