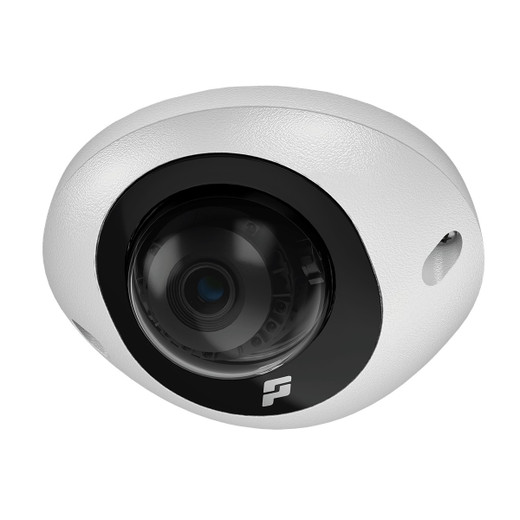

Pelco SRXV2-2F3-EWD-IR 2MP Outdoor Dome IR Camera
The Pelco SRXV2-2F3-EWD-IR is a fixed outdoor dome camera from the Sarix Value 2 Series built for continuous 24/7 surveillance in commercial and industrial environments. This 2MP fixed dome delivers 1920×1080 resolution at 30 fps from a progressive scan CMOS sensor paired with integrated 850 nm infrared illumination, enabling round-the-clock monitoring without switching between color and monochrome modes. The combination of compact form factor, environmental hardening, and bandwidth-efficient H.265 encoding makes it a practical choice for perimeter security, building entries, parking facilities, and warehouse access points where cost and reliability matter more than exotic features.
Key Features
- 2MP resolution at 30 fps: Captures 1920×1080 detail from a 1/2.8" progressive scan CMOS sensor with F1.4 aperture. Sufficient for license plate legibility and facial recognition at typical commercial mounting heights (10–20 ft), without the storage overhead of 4MP or higher.
- 850 nm infrared illumination with 0 lux mono capability: Integrated IR allows operation in complete darkness without requiring external spotlights or auxiliary illuminators. Eliminates the need to maintain separate night-vision hardware on perimeter deployments.
- 120 dB WDR (Wide Dynamic Range): Handles extreme lighting transitions—direct sunlight to deep shadows in the same frame—common at building entrances and loading docks. Prevents blown-out highlights and crushed blacks that would otherwise lose forensic detail in high-contrast scenes.
- H.265 and H.264 compression: H.265 reduces file size by roughly 50% compared to H.264 at equivalent quality, lowering both storage costs and bandwidth consumption. Meaningful advantage when running 24/7 recording across multiple cameras on constrained storage or network budgets.
- IP42 ingress protection and IK09 vandal rating: IP42 means water spray and dust won't penetrate during rain or dusty conditions; IK09 impact resistance (20 J) withstands moderate physical abuse. Skip this model if you need full submersion (IP67) or extreme impact tolerance (IK10).
- PoE Class 3 power delivery: Draws under 13W via standard 802.3af Ethernet. No separate power supply required—single cable run for both power and network simplifies installation and reduces cable clutter at the mounting point.
- ONVIF Profile S and T compliance: Integrates with standard IP cameras management platforms and third-party VMS solutions without custom drivers or bridge software. Profile T adds audio and metadata support for deployments requiring advanced event triggering.
- microSD card support: Local recording backup up to the microSD capacity (not specified in evidence) allows independent video retention if network connectivity drops, reducing reliance on centralized NVR storage.
- HTTPS encryption and secure data transmission: Protects video stream and credentials in transit. Standard requirement for any networked surveillance asset in regulated environments.
- Operating range 0°C to +50°C: Suitable for most temperate and warm climates. Not rated for arctic cold (below −10°C) or extreme heat above 50°C; verify your site conditions before deployment in harsh regions.
- NDAA Section 889 compliance: Meets U.S. federal procurement requirements for government and sensitive sector installations. Eliminates compliance risk for public sector bids and regulated deployments.
Integration & Compatibility
The SRXV2-2F3-EWD-IR (often searched as SRXV2 2F3 EWD IR) pairs with any dome camera management platform supporting ONVIF. Standard PoE switches and injectors supply power without additional provisioning. For large multi-camera deployments, pair with a network video recorder configured for H.265 to maximize storage efficiency. Firmware updates and remote management typically flow through the VMS platform, so ensure your management software is up-to-date before deployment.
Frequently Asked Questions
Q: Is the Pelco SRXV2-2F3-EWD-IR NDAA Section 889 compliant?
A: Yes. The SRXV2-2F3-EWD-IR is NDAA Section 889 compliant, making it eligible for government and regulated sector procurements without additional compliance vetting.
Q: What is the infrared range on the SRXV2-2F3-EWD-IR?
A: The datasheet specifies 850 nm IR with 0 lux monochrome capability, but the exact illumination distance is not provided in the available specifications. Contact the manufacturer directly for specific IR range performance under your mounting height and environmental conditions.
Q: Can the SRXV2-2F3-EWD-IR be mounted on a wall or only on a ceiling?
A: The SRXV2-2F3-EWD-IR is a dome camera with a standard mounting footprint. It supports both ceiling and wall mounting depending on the bracket and environmental angle requirements. Verify specific bracket compatibility with your mounting surface before purchase.
Q: What is the warranty on the SRXV2-2F3-EWD-IR?
A: The Pelco SRXV2-2F3-EWD-IR is backed by a comprehensive 5-year warranty covering defects in materials and workmanship.
Q: Does the SRXV2-2F3-EWD-IR work with Milestone XProtect or other third-party VMS platforms?
A: Yes. ONVIF Profile S and T compliance ensures compatibility with Milestone XProtect and other standards-based VMS solutions. Verify your specific VMS version supports ONVIF Profile T if you require advanced audio or metadata features.
Q: What is the maximum power consumption of the SRXV2-2F3-EWD-IR?
A: The camera draws under 13W via PoE Class 3 (802.3af), so it will not overload a standard PoE switch port rated for 15.4W per port.
The Pelco SRXV2-2F3-EWD-IR hits a practical sweet spot for outdoor 24/7 surveillance: 2MP resolution is sufficient for facial and license plate detail at standard commercial mounting heights (12–18 feet), the integrated 850 nm IR eliminates the cost and complexity of external illuminators, and H.265 compression genuinely reduces storage overhead when you're running dozens of cameras on continuous recording. The IP42 and IK09 ratings provide legitimate outdoor durability without the premium price of higher-rated enclosures.
Technical Highlights:
- H.265 compression reduces storage by ~50%: On a 30-fps 2MP stream, this translates to roughly half the disk space compared to H.264 at equivalent perceived quality. Meaningful savings across a 24/7 multi-camera installation—easy win for storage-constrained budgets.
- 120 dB WDR handles extreme light transitions: Building entries and loading docks with direct sunlight and deep shadows in the same frame are common problem areas. The SRXV2-2F3-EWD-IR's WDR preserves detail in both extremes without requiring manual exposure adjustment or a second high-dynamic-range camera.
- ONVIF Profile S and T ensures VMS portability: If you migrate from one management platform to another, the camera's standards-based implementation means minimal reconfiguration. No vendor lock-in on the camera side, though check your NVR's upgrade path separately.
- 0 lux IR capability eliminates switchover artifacts: True day/night operation means no color-to-monochrome switching delays or the quality dip that happens during low-light transitions. Continuous forensic video quality across the 24-hour cycle.
Deployment Considerations:
- IP42 is water-resistant, not waterproof: Direct rain spray and dust won't enter the housing, but this is not an IP67 submersible unit. If you need full protection against sustained spray (hose-down scenarios, coastal salt-spray environments), specify the higher-rated variant instead.
- IK09 (20 J) is moderate impact protection: Adequate for warehouse and parking areas where incidental contact occurs, but not suitable for high-vandalism sites or locations prone to deliberate strike damage. High-crime perimeters should move to IK10 (40 J) rated domes.
- PoE power budget is tight for IR operation: The camera draws under 13W, which is well within a single 802.3af port (15.4W), but leaves minimal headroom. If you're powering other devices on the same switch segment, calculate your total draw and verify the switch's per-port or aggregate limit before deployment.
- No audio input mentioned in the spec: If two-way audio or event-triggered voice is a requirement, confirm this limitation with your VMS integrator. ONVIF Profile T supports audio metadata, but the SRXV2-2F3-EWD-IR may not include a microphone input.
Position this camera for outdoor perimeters, building entries, warehouse loading docks, and parking facilities where 2MP detail is adequate, 24/7 infrared capability is non-negotiable, and PoE simplicity outweighs the need for external power. Skip it if you need sub-degree pan-tilt capability, multi-megapixel resolution for extreme detail, or full submersion protection in coastal environments.
