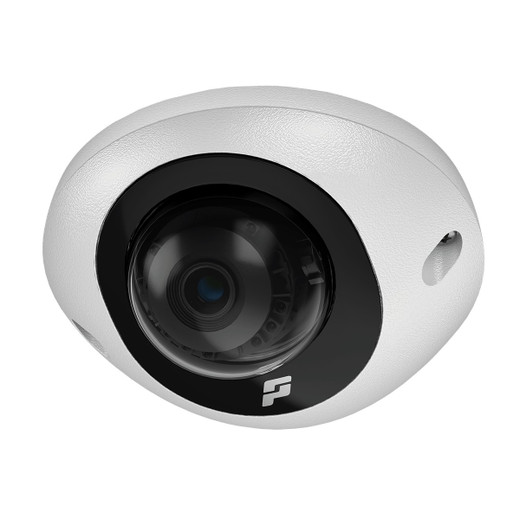

Pelco SRXV2-2F3-EWD-IR RB 2MP Outdoor Dome Camera

Pelco SRXV2-2F3-EWD-IR RB 2MP Outdoor Dome Camera

The Pelco SRXV2-2F3-EWD-IR RB is a reboxed Sarix Value 2 outdoor dome camera delivering reliable 2 MP surveillance in a cost-effective package. This compact dome combines a 1/2.8-inch progressive scan CMOS sensor with integrated 850 nm infrared illumination, enabling 24/7 monitoring from building entries to perimeter zones. With full Pelco support and NDAA Section 889 compliance, it is ideal for integrators and end-users seeking dependable outdoor coverage without premium pricing.

Key Features

• 2 MP resolution at 1920 × 1080 at 30 fps for clear wide-angle coverage
• 120 dB True WDR handles challenging mixed-lighting transitions and backlit scenes
• Integrated 850 nm IR illumination with 0 lux mono night vision capability
• H.265, H.264, and Motion JPEG compression—H.265 reduces bandwidth and storage by ~50% versus H.264
• IP42 ingress protection and IK09 vandal rating for outdoor durability
• PoE Class 3 (802.3af) power delivery over single Ethernet cable
• ONVIF Profile S and T compliance for third-party recorder integration
• microSD card slot for local storage backup
• HTTPS encryption for secure transmission
• Operating range: 0°C to +50°C
• 5-year manufacturer warranty

Technical Specifications

• Image Sensor: 1/2.8-inch progressive scan CMOS
• Lens: 3 mm fixed, F1.4 aperture
• Minimum Illumination: 0.02 lux (color); 0 lux (mono with IR)
• Video Codecs: H.265, H.264, Motion JPEG
• Connectivity: Ethernet (PoE)
• Classification: Reboxed replacement part—functionally identical to new with full OEM support

Applications

The SRXV2-2F3-EWD-IR RB suits perimeter surveillance, building entry monitoring, retail environments, and light industrial sites. Its wide-angle 3 mm lens provides excellent coverage for general-purpose outdoor security. The 120 dB WDR excels at entrances and loading areas where lighting conditions fluctuate. ONVIF compliance integrates seamlessly with Pelco VideoXpert and third-party NVR systems, making it flexible for mixed-vendor deployments.

Karl Wilson

As a reboxed Sarix Value 2, this camera delivers production-grade performance at a lower total cost of ownership. The H.265 codec is a key differentiator for storage-constrained environments, cutting file sizes without quality loss. The 120 dB WDR ensures reliable operation at sunset, sunrise, and variable outdoor lighting—common pain points for dome deployments.

IK09 vandalism protection and IP42 sealing handle weather, debris, and deliberate impact, supporting multi-year service life in harsh conditions. PoE Class 3 compatibility simplifies power infrastructure; most modern PoE switches supply adequate current without additional midspan injectors. ONVIF Profile S/T certification guarantees VMS portability, reducing vendor lock-in risk.

For users requiring varifocal or zoom capability, Pelco's Sarix Pro 4 series provides greater focal length flexibility, but this Sarix Value 2 prioritizes simplicity and cost-effectiveness. The 5-year warranty reflects Pelco's confidence in durability and provides peace of mind for integrators and end-users alike.
