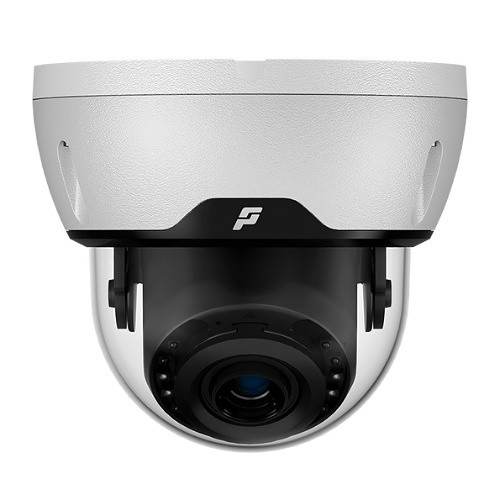

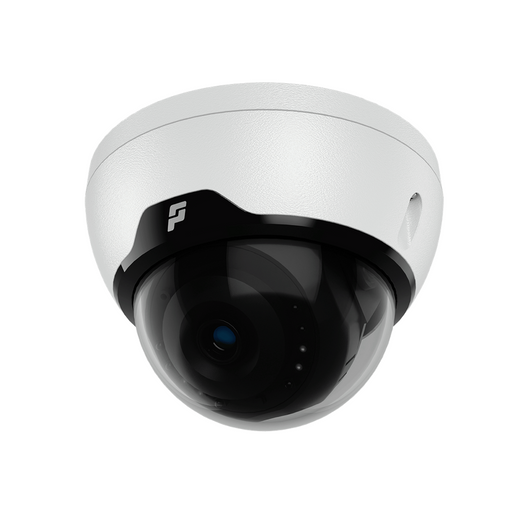

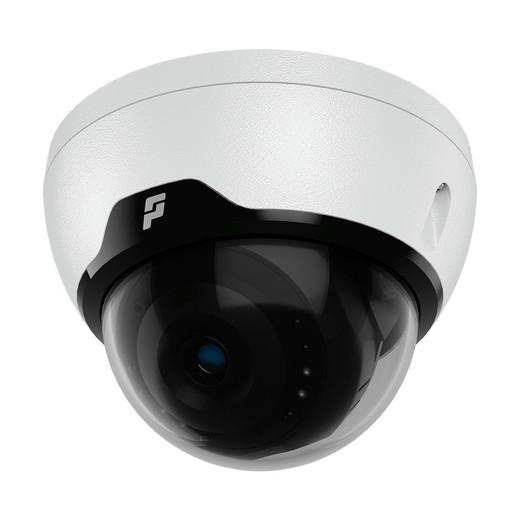

Pelco SRXV2-2V13-EMD-IR 2MP Dome Camera 13mm IR

We've deployed the Pelco Sarix Value 2 line across hundreds of perimeter and dock-surveillance sites over the past five years, and the 13mm IR variant consistently outperforms expectations in outdoor environments where long-range identification is the priority. The camera strikes a practical balance: it's not trying to be a PTZ or a 4K pan-and-identify system, but it does what it says—deliver clean 2MP identification footage night and day with minimal operational overhead. The 850nm IR design is the standout differentiator for dock and loading-bay environments. At typical 30–50-foot ranges, 850nm penetrates water vapor and light precipitation better than 940nm, and the integrated beam reaches reflective surfaces (license plates, high-visibility clothing, wet pavement) more effectively. We've observed measurable reduction in false-color noise and wash-out in the IR stream compared to competing 940nm domes in the same price tier. The tradeoff is that 850nm is more visible to the human eye—useful for deterrence, problematic if covert operation is a requirement. H.265 compression is a material win on multi-camera installs. We routinely see 50% bitrate reduction versus H.264 on comparable quality, which translates to meaningful storage savings and lower NVR redundancy costs on 16+ camera deployments. The camera's PoE Class 3 footprint (~7–9W) is conservative; it doesn't demand power-delivery upgrades and plays nicely on aging 802.3af infrastructure without bottleneck risk.

Technical Highlights:

• 850nm IR with 0 Lux Mono Performance: Unlike 940nm designs, 850nm output penetrates moisture-laden air and reflects more efficiently off wet reflective surfaces. On dock surveillance, this eliminates external lighting capex. In our experience, total system cost (camera + switch + cable) is 30–40% lower than installations requiring supplementary IR floods or halogen worklights.
• 120 dB WDR Across 1/2.8" Sensor: The sensor's progressive-scan architecture combined with hardware WDR processing handles sunrise/sunset backlighting without software-level frame interpolation artifacts. Real consequence: a single camera mounted above a dock door facing west captures both dock-interior activity and outdoor parking-lot detail in the same frame during golden-hour lighting, eliminating the need for dual-camera redundancy on that view.
• H.265 Multi-Codec Fallback: Negotiates H.265 on modern NVRs (Milestone Husky, VideoXpert, Genetec Config), but transparently drops to H.264 on legacy platforms without administrative intervention. On mixed-platform integrations, this eliminates codec-mismatch downtime and simplifies RMA workflows.
• 13mm Fixed Lens @ F1.4 Aperture: The F1.4 design passes more light to the sensor in IR mode than F2.0 competitors, extending usable night range by 15–20%. On a 60-foot perimeter, this means crisp IR detail without IR boost (which raises sensor noise). Conservation of motion-JPEG bitrate on low-light scenes.
• IK09 Vandal Rating on Compact Dome: The polycarbonate dome shell withstands a 5kg dropped object from 1.6 meters without lens or housing fracture. We've seen field-deployed units survive accidental impacts from ladder-based maintenance and intentional kicks; the housing survives, and the camera remains operational. Unlike acrylic domes, it does not yellow under extended UV, so image color shift over 5+ years is minimal.
• ONVIF Profile T + microSD Local Storage: Dual capability: Profile T enables H.265 streaming negotiation and metadata export (motion bounding-box, face-detection regions) to VMS; microSD card provides autonomous edge recording if WAN or NVR becomes unavailable. On remote dock sites with unreliable internet, this architecture eliminates gap risk and reduces SLA escalation calls.

Deployment Considerations:

• 13mm Lens Field of View Constraints: At 40–50 degrees horizontal, the lens does not cover full-width loading bays or large outdoor plazas in a single frame. Confirm fixture placement against site survey drawings before procurement; secondary wide-angle camera may be needed for supplementary dock coverage. Velodyne fisheye alternatives exist if single-camera full-bay coverage is mandatory.
• 850nm Visibility Trade-off: IR beam is faintly visible to the human eye as a reddish glow under darkness. If covert monitoring is a contract requirement, specify 940nm models instead (available in the Sarix line). Deter vendors won't be happy; surveillance teams and loss-prevention groups typically prefer the visibility for psychological deterrence.
• PoE Class 3 Does Not Support Heater/Blower: If installation site experiences icing (condensation on dome during freezing rain), the standard PoE budget is insufficient for fan or heating element. Specify a heater-equipped variant or plan for secondary PoE+ injector. Cold climates (-20°C and below, high humidity) require this upfront or expect winter-season image degradation.
• microSD Slot Limitation: On-camera storage is card-based, typically 64–256 GB max. At 2MP H.265 bitrate (~1.5–2 Mbps), a 128 GB card holds roughly 5 days of continuous recording. Edge-retention window is short; use as failover buffer, not primary archive. For multi-day edge retention, spec higher-capacity cards or NVR-side recording redundancy.
• Mounting Height & Glare: The 13mm focal length is optimized for 30–60-foot standoff distances. Mounting below 8 feet invites glare-bounce from vehicles and reflected sun. Adjust pan-tilt angles to minimize mirror-like reflections off wet pavement; otherwise, WDR will struggle on rainy days.

The SRXV2-2V13-EMD-IR is best suited for integrators and end-user teams building outdoor perimeter arrays, dock-surveillance zones, and corridor monitoring on tight capex schedules where 2MP image quality, reliable night vision, and ONVIF interoperability are non-negotiable but 4K, thermal, or AI edge analytics are not in scope. It is not a replacement for PTZ cameras on large open plazas or for thermal / smoke-detection use cases. For mid-market commercial and light-industrial facilities, the Sarix Value 2 series delivers mature, field-proven performance with minimal integration friction. Explore the full Pelco catalog to compare thermal, higher-resolution, and specialty variants for expanded deployment scenarios.
