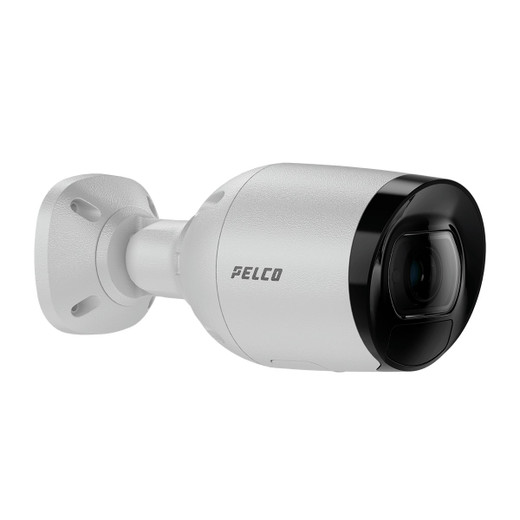

Pelco SRXV2-2V13-EBT-IR 2MP Bullet Camera 13mm IR

Pelco SRXV2-2V13-EBT-IR 2MP Bullet Camera 13mm IR

The Pelco SRXV2-2V13-EBT-IR is a compact 2MP outdoor bullet camera from the Sarix Value 2 series, engineered for professional surveillance deployments requiring identification-grade detail at extended ranges. The fixed 13mm lens narrows the field of view compared to wide-angle variants, concentrating pixel density for clarity along perimeters, driveways, and access corridors where distance recognition is critical.

Key Features

• 2MP resolution at 1920 x 1080 with 30 fps capture
• Fixed 13mm lens for narrow field of view and long-range identification
• Integrated 850nm IR illumination for zero-lux night vision
• H.265/H.264 dual-stream compression with Motion JPEG support
• 120 dB Wide Dynamic Range for mixed lighting conditions
• IP66 weatherproof and IK09 vandal-resistant housing
• PoE Class 3 powered via single Ethernet run
• ONVIF Profile S/T compliant for multi-VMS support
• microSD local storage capability
• HTTPS encryption for secure streaming
• Operating range: -40°C to +60°C

Technical Highlights

The 1/2.8-inch progressive scan CMOS sensor delivers color imagery at 0.02 lux and monochrome operation at 0 lux with IR activation. The 120 dB WDR engine balances bright and dark zones simultaneously, eliminating washout and shadow detail loss in challenging outdoor lighting. Dual H.265/H.264 encoding optimizes bandwidth utilization and storage efficiency across enterprise networks.

Installation & Integration

The bullet form factor accommodates wall or junction box mounting with standard Sarix Value brackets. ONVIF compliance enables integration with Pelco VideoXpert and third-party VMS platforms. NDAA Section 889 compliance supports federal and government procurement. Backed by a 5-year warranty.

Ideal Applications

• Perimeter and fence line monitoring
• Driveway and entrance surveillance
• Narrow corridor and hallway coverage
• Long-range identification requirements
• Commercial and industrial outdoor deployment

Product Documentation

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

I spec the SRXV2-2V13-EBT-IR when clients need reliable identification at distance without the complexity of PTZ systems. That 13mm lens gives you roughly a 24-degree horizontal field—tight enough to resolve faces or license plates at 40–50 feet, which makes it ideal for gate approaches, loading dock lanes, or perimeter sections where you're watching a defined corridor rather than a wide courtyard. The 120 dB WDR handles mixed lighting well, so morning glare on a fence line or headlight wash at night won't blow out your usable image.

One watch-out: this is a fixed lens, so you need to verify your coverage zone during site survey. If you're uncertain about final mounting height or exact target distance, consider the varifocal SRXV2 variant first, then lock your settings. Also confirm your NVR or VMS supports H.265 if you're planning to use it—falling back to H.264 works fine but doubles your bandwidth and storage overhead. The -40°C rating is legitimate; I've deployed these in Dakota winters without heater housings.
