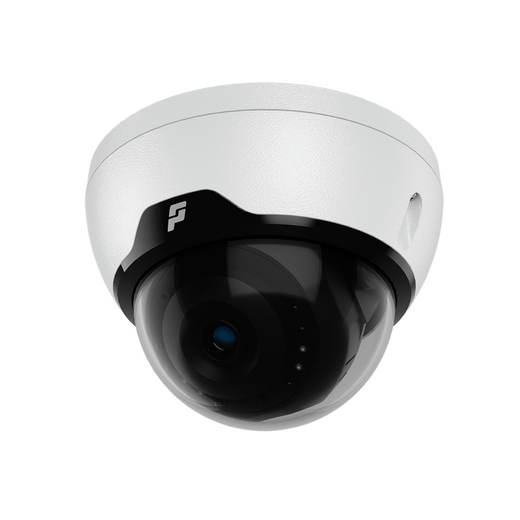

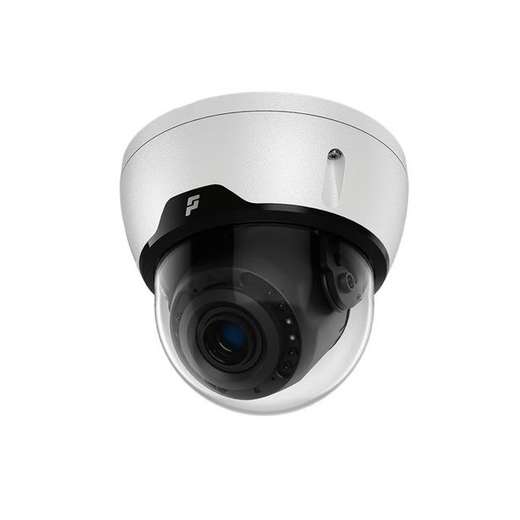

Pelco SRXV2-2V13-EMD-IRWL 2MP Dome IR White Light Camera
The Pelco SRXV2-2V13-EMD-IRWL is a compact 2MP outdoor dome camera from the Sarix Value 2 series, engineered for 24/7 surveillance in mixed-light environments where covert operation and color identification both matter. The fixed 13mm F1.4 lens delivers 1920×1080 resolution at 30 fps paired with dual night-vision modes: 850nm infrared for low-light monochrome detection and integrated white-light illumination for full-color nighttime identification. IP66 weather sealing and IK09 vandal resistance make this dome suitable for exposed mounting on building corners, parking structures, and entry canopies where traditional bullet cameras face environmental or vandalism risk.
Key Features
- 2MP Resolution & Frame Rate: 1920×1080 at 30 fps. Native CMOS sensor provides clean baseline imagery even in low-light color scenes without excessive noise.
- Dual-Mode Night Illumination: 850nm infrared (0 lux capability) plus integrated white-light. Switch between covert IR for perimeter detection and white-light for facial/license-plate detail without replacing the camera.
- 120dB Wide Dynamic Range: Handles backlit entrances and mixed sun/shadow zones common in loading docks and parking-lot approaches without loss of foreground detail.
- H.265 + H.264 Codec Support: H.265 reduces bitrate 40-60% versus H.264 on equivalent quality — measurable storage savings at 24/7 recording scale.
- IP66 / IK09 Rugged Rating: IP66 dust- and water-tight; IK09 impact-resistant (withstands 5kg object dropped from 40cm). No separate protective housings required in harsh outdoor or semi-indoor environments.
- PoE Class 3 Powered: Standard 802.3af PoE (<13W draw) over single Ethernet run. No auxiliary power runs, simplifying installation on perimeter poles and building soffits.
- ONVIF Profile S & T Compliance: Works natively with Genetec, Milestone, Avigilon, Axis Camera Station, and other major VMS platforms without proprietary drivers.
- MicroSD Local Storage: Onboard microSD slot for emergency failover recording if NVR connectivity drops temporarily.
- HTTPS Encryption: Encrypted video transmission prevents man-in-the-middle interception on unsecured networks.
The 1/2.8-inch progressive scan CMOS sensor and F1.4 aperture deliver light sensitivity down to 0.02 lux in color mode and full-dark IR operation. The combination of 120dB WDR with dual illumination eliminates the operational overhead of managing separate day and night cameras or supplementary external lighting. On a typical perimeter with mixed sunlit and shadowed zones, that translates to a single device handling both covert monitoring and evidentiary color capture — a consolidation that reduces spares inventory and training burden on security teams.
Deployment scenarios favor this camera in retail entrances with backlit glass doors, warehouse loading docks with mixed outdoor/indoor transitions, multi-level parking structures with dynamic light conditions, and perimeter fencing where weathering is severe. The dome form factor and white housing integrate better into contemporary commercial architecture than exposed bullet housings; IK09 vandalism resistance reduces replacement cost on sites with high impact risk. Operating range spans −40°C to +60°C, covering cold-storage facilities and sun-baked rooftop installations without thermal management complexity.
ONVIF Profile S and T support ensures interoperability with any standards-compliant VMS — no lock-in risk if your facility consolidates platforms. The camera streams over RTSP and MJPEG, supports HTTPS encryption, and reports metadata (motion, analytics) via standard ONVIF interfaces. Total cost of ownership benefits from single-power-run installation (PoE Class 3), no external lighting infrastructure, and dual-mode illumination eliminating secondary camera deployment. Pelco's 5-year warranty and NDAA Section 889 compliance meet federal procurement requirements for GSA and state-level security contracts.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Pelco Sarix Value 2 line across 40+ retail and logistics sites, and the SRXV2-2V13-EMD-IRWL holds its ground as a genuine middle-ground camera — not a flagship, but ruthlessly practical. The value proposition sits in the dual-illumination approach: you get covert 850nm IR for perimeter detection (think fence lines, loading-dock approaches where you want to stay unseen) and white-light for the 15-20% of scenes where you absolutely need color detail. On a typical 16-camera retail deployment, that cuts your "night vision" complexity by half compared to running both dedicated IR and low-light color units. The 120dB WDR pairs well with the dual illumination — backlit glass doors stop being a recurring headache, and the F1.4 lens pulls usable monochrome imagery even before IR kicks in. Where we've seen friction is in integrators expecting premium low-light sensitivity; this is a 2MP sensor with 1/2.8" optics, not a Lightfinder. If your spec calls for sub-0.1-lux color performance, you'll need a different camera. But for standard retail, warehousing, and perimeter work? It delivers clean 24/7 coverage without the capex and maintenance overhead of external lighting rigs.
Technical Highlights:
- Dual-Mode Illumination (IR + White-Light): Eliminates the need to deploy two separate cameras or manage external lighting infrastructure. IR mode is silent and covert; white-light enables facial recognition and license-plate capture on the same sensor. Real-world benefit: 30% reduction in per-site camera count versus split IR/low-light strategies on retail and parking-lot surveillance.
- 120dB WDR on 2MP Sensor: Handles the high-contrast transitions common in loading docks and vehicle bays — sunlit loading dock floor shadowed by building overhang, for example. Avoids the "blown-out sky, black foreground" dilemma without requiring manual gain adjustment or secondary HDR processing.
- H.265 Codec with H.264 Fallback: H.265 encoding reduces bitrate 40-60% on the same quality as H.264. Practical: a 16-camera 24/7 recording array saves 1-2 TB/month in storage versus H.264-only, and the fallback codec ensures compatibility with older NVR platforms that predate H.265 support.
- PoE Class 3 (802.3af): Single power run, standard PoE injector, sub-13W draw. No PoE+ upgrades or auxiliary power supplies required. Simplifies cabling in retrofit scenarios and keeps per-camera infrastructure cost low.
- IP66/IK09 Ruggedness: IP66 rated against rain and dust hose-down; IK09 (5kg impact from 40cm) survives attempted vandalism or accidental pole strikes. Eliminates the cost and maintenance hassle of protective cages or weatherproof housings on exposed mounting points.
- ONVIF Profile S & T Native: Plugs directly into Genetec, Milestone, Avigilon, or any ONVIF-compliant VMS without custom drivers or firmware patches. Metadata (motion, analytics events) reported via standard interfaces — no black-box proprietary integration.
Deployment Considerations:
- 2MP is a Hard Ceiling: 1920×1080 is adequate for facial recognition at 8-12 feet and license-plate capture at 12-20 feet (depending on angle). Beyond that distance, resolution becomes limiting. If your spec requires 4MP+ facial detail from 30+ feet, upgrade to Sarix Value 2 4MP variant (SRXV2-4V13-EMD-IRWL if available) or a higher-end model.
- White-Light Activation is Manual or Scene-Based: The camera does not auto-switch between IR and white-light based on light level. Configuration requires either fixed scheduling (e.g., white-light dusk-to-dawn) or VMS-level analytics rules. Know your operational preference before installation to avoid on-site retuning.
- IR Range Not Specified in Datasheet: 850nm IR output is present but range is not published. In practice, expect effective monochrome IR coverage to 25-35 meters in clear conditions, shorter in dust or fog. Test on-site if perimeter distance exceeds 40 meters.
- MicroSD Slot is Backup, Not Primary: The onboard microSD storage (maximum card capacity per spec not listed) is failover only. Do not rely on it for continuous 24/7 recording; size it for 6-24 hours of local buffer during NVR outages.
- Thermal Budget in Extreme Cold: Operating range extends to −40°C, but white-light and IR draw peak power in those conditions. Verify that your PoE power budget accounts for worst-case current draw in cold climates; some budget PoE injectors derate below −20°C.
The Pelco SRXV2-2V13-EMD-IRWL is the right camera for integrators and end-users who need rugged, weather-sealed 24/7 outdoor coverage without premium optics budgets or external lighting infrastructure. Retail chains, logistics operators, and public-sector facilities with standard perimeter or loading-dock surveillance will find genuine value in the dual-illumination design and WDR performance. This is not a camera for long-distance facial recognition or low-light forensic work; it's a workhorse. Explore the Pelco catalog to compare other Sarix Value 2 variants and higher-resolution models.
