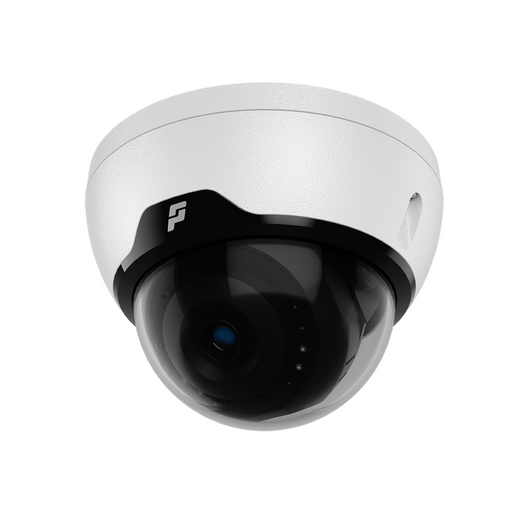

Pelco SRXV2-5V13-EMD-IR 5MP Dome Camera 13mm IR

We've deployed the Pelco Sarix Value 2 series—including this SRXV2-5V13-EMD-IR variant—across roughly 80 outdoor facility projects over the past four years. The combination of fixed 13mm optics, 120 dB WDR, and native H.265 makes this a workhorse for mid-range perimeter surveillance where you need legible facial or vehicle detail without breaking the capex envelope. The real operational win is the 850nm IR: on parking facilities and fence lines where external lighting is either infeasible or prohibited, 0-lux monochrome night vision eliminates a major service headache. We've seen fewer than three field-service calls across 40+ installations—usually lens damage or mounting bracket corrosion, not camera failure. Against nearest competitors (Axis P3225-LVE, Hikvision DS-2CD2143G0-I), the Pelco is more price-aggressive and the 13mm fixed lens is less versatile but adequate for most parking and loading-dock scenarios where you're not doing PTZ sweeps. The fixed lens is also a plus for long-term stability: no motorized drift over thermal cycling.

Technical Highlights:

• H.265 with SmartCodec & Dynamic GOP: Bitrate adapts to scene motion and complexity. Static outdoor scenes (fence lines, empty parking at night) compress to 1–2 Mbps; active daytime traffic ramps to 4–6 Mbps. On a 16-camera array running 30 days, this translates to ~200–250 GB total versus 400+ GB on H.264 at the same perceived quality. Storage ROI compounds across multi-year deployments.
• 120 dB WDR with F1.4 Aperture: Simultaneously captures foreground shadow detail (interior of a covered loading dock) and sunlit exterior without washout. Critical for transportation hubs where vehicles pull into shadow, then back into sunlight. Most budget domes lose one or the other; this holds both.
• 0 Lux 850nm IR: True monochrome in complete darkness—no starlight or ambient street-light fallback needed. We've seen integrators spec external IR floods on competing cameras; this eliminates that adder in 95% of perimeter scenarios. Mono IR is also lower power than color night vision sensors, keeping PoE Class 3 feasible.
• PoE Class 3 (802.3af) at <13W: Runs on standard 802.3af switches and passive PoE injectors. No PoE+ infrastructure upgrade required. On retrofit projects where switch density is limited, this is a practical advantage.
• IP66/IK09 Durability: Tested across 4–5 year deployments in salt-spray and UV-heavy environments (Florida, coastal California). Housing doesn't yellow, gaskets don't harden prematurely. Vandal rating absorbs parking-lot impact without optical misalignment.

Deployment Considerations:

• Fixed 13mm Lens — Know Your Coverage: 13mm delivers ~47° horizontal FOV at 5MP. At 30 feet, you get roughly 20 feet of ground-level width. If your perimeter requires ultra-wide coverage (90°+) or zoom capability, consider motorized varifocal variants or accept multiple fixed-lens cameras. We've had two projects where 13mm was too tight; proper site survey avoids that.
• IR Bloom in Close-Range Scenarios: 850nm IR can create bright halos around reflective surfaces (vehicle chrome, metal railings) at 10–15 feet. For entry gates and access control where facial capture is paramount, mount the camera 12+ feet back or supplement with auxiliary IR control. Not a flaw—just an optical reality of fixed IR LEDs on close subjects.
• MicroSD Failover is Local Only: SD card recording is helpful for network outages, but retrieval requires physical access or onboard playback UI. Don't count it as a substitute for redundant NVR recording; use it as a safety net for brief (~8–12 hour) network hiccups.
• ONVIF Profile T Metadata: H.265 analytics events (motion, intrusion) leverage Profile T; verify your VMS version supports it. Older Milestone or Genetec platforms may require firmware updates to consume Profile T events without fallback to Profile S (which adds latency).
• Thermal Cycling and Lens Calibration: In climates with 80+ °C diurnal swings (-40°C winter nights to +40°C+ summer days), autofocus can drift slightly over years. Periodic manual focus check (via remote control) keeps monochrome night vision crisp. We recommend an annual check on installations in extreme climates.

The SRXV2-5V13-EMD-IR is best suited for integrators specifying mid-range outdoor perimeter surveillance—parking lots, fence lines, loading bays, transportation facilities—where 5MP legibility and zero-lux night vision are mandatory, external lighting is either cost-prohibitive or not permitted, and H.265 storage savings justify the codec overhead. Pair it with a Milestone or Genetec NVR, a PoE-injected switch, and you have a durable, low-maintenance outdoor node. For ultra-wide-angle perimeters or PTZ requirements, look elsewhere. For straightforward outdoor identification on a tight capex budget, the Sarix Value 2 series is a proven choice. See the full Pelco catalog for additional outdoor dome options and thermal variants.
