HID 921PHRNEK0002D vs Kantech KT-SG-MT2: Specification Comparison
Both the HID RPK40 Multiclass SE (921PHRNEK0002D) and the Kantech KT-SG-MT2 Gen 2 are wall-mount multi-technology access control readers designed to consolidate multiple credential types at a single door point. Each accepts both 125 kHz proximity and higher-frequency smart card formats alongside PIN entry, placing them squarely in the same competitive bracket for installers evaluating credential-reader upgrades or new deployments on mixed-technology sites. The comparison covers credential breadth and encryption, form factor and physical environment, and communication protocol support.
In This Guide
- Which reader supports a broader credential set and stronger data security?
- How do the physical form factors and environmental suitability compare?
- Which reader offers more flexible communication and system integration options?
- Which should you choose: the 921PHRNEK0002D or the KT-SG-MT2?
- Side-by-Side Specs
- FAQ
Which reader supports a broader credential set and stronger data security?

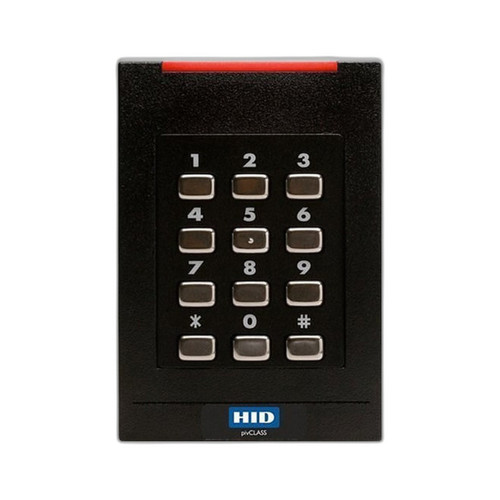

The HID 921PHRNEK0002D reads iCLASS and 125 kHz proximity cards and accepts PIN codes, supporting card-only, PIN-only, or card-plus-PIN multi-factor sequences. No encryption standard is specified in the provided specs for this model.

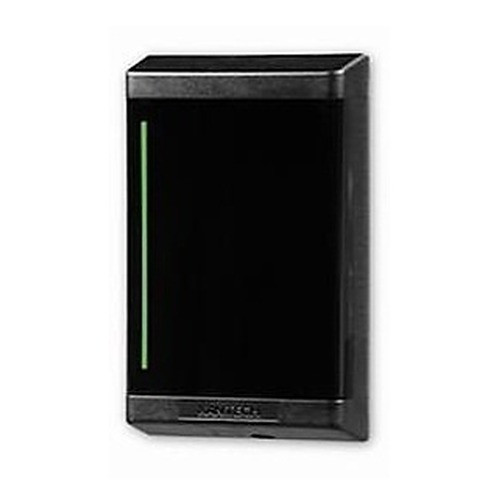

The Kantech KT-SG-MT2 reads a wider published credential stack: DESFire, MIFARE, HID cards, NFC/13.56 MHz, and 125 kHz proximity — explicitly covering both frequency bands and multiple smart-card standards. It also specifies AES-256 encryption, providing a documented cryptographic baseline the 921PHRNEK0002D specs do not supply.
For sites migrating from legacy 125 kHz to DESFire or MIFARE smart cards, the KT-SG-MT2's broader credential list avoids a forced card replacement. For iCLASS-standardized HID ecosystems, the 921PHRNEK0002D covers the installed base without requiring additional credential formats.
How do the physical form factors and environmental suitability compare?
The HID 921PHRNEK0002D specifies a polycarbonate housing rated for outdoor deployment. Its stated dimensions are 85 mm × 122 mm × 28 mm (per the spec listing, interpreted as millimeters given the product class — the raw spec lists 85" × 122" × 28", which appears to be a data-entry error; no corrected value is provided in the spec sheet, so buyers should confirm with HID). It includes a tactile-feedback alphanumeric keypad integrated into the unit.
The Kantech KT-SG-MT2 is a mullion single-gang form factor fitting standard North American and European electrical boxes, with stated dimensions of 115.8 mm × 44.6 mm × 24.7 mm (same caveat applies — raw spec lists these as inches, which is physically inconsistent for a single-gang device; verify with Kantech). Weight is specified at 0.6 lb. Its matte black finish is noted for commercial environments, but no explicit outdoor or IP rating is provided in the supplied specs.
The 921PHRNEK0002D has an explicit outdoor-rated spec, making it the documented choice for exterior doors. The KT-SG-MT2's environmental rating is not stated in the provided data, so outdoor suitability cannot be confirmed from specs alone.
Which reader offers more flexible communication and system integration options?
The HID 921PHRNEK0002D specifies integration with HID Access Control Systems and standard PACS platforms via a single conduit and single power connection. The specific communication protocol (Wiegand, OSDP, RS-485) is not listed in the provided specs.
The Kantech KT-SG-MT2 explicitly lists three communication interfaces: OSDP, Wiegand, and RS-485. OSDP (Open Supervised Device Protocol) supports bidirectional encrypted communication and tamper detection, which Wiegand alone does not provide. Input voltage is specified at 5 VDC. The reader is listed under a 'Controller' product type in the specs, though functionally it operates as a reader; buyers should confirm with Kantech.
For installations requiring OSDP for supervised, encrypted reader communication — increasingly a best-practice and sometimes a compliance requirement — the KT-SG-MT2's documented OSDP support is a concrete differentiator. The 921PHRNEK0002D's protocol support is not specified in the provided data, limiting a direct protocol-level comparison.
Which should you choose: the 921PHRNEK0002D or the KT-SG-MT2?
Our take: The KT-SG-MT2 is the stronger choice when the priority is broad credential interoperability, documented AES-256 encryption, and OSDP-based supervised communication. The KT-SG-MT2 explicitly supports DESFire, MIFARE, HID, NFC/13.56 MHz, and 125 kHz credentials versus the 921PHRNEK0002D's iCLASS and proximity scope; it specifies AES-256 encryption where the 921PHRNEK0002D lists none; and it offers OSDP, Wiegand, and RS-485 interfaces versus no protocol specification for the HID unit. Conversely, the 921PHRNEK0002D is the defensible choice for HID-standardized iCLASS environments where outdoor-rated polycarbonate housing is required — it explicitly carries an outdoor deployment rating, while the KT-SG-MT2 provides no environmental rating in the supplied specs. Platform lock-in is also a factor: the 921PHRNEK0002D targets HID-native PACS, while the KT-SG-MT2 is optimized for Kantech ecosystems. Confirm dimensional specs and environmental ratings with each manufacturer before specifying.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | HID 921PHRNEK0002D | Kantech KT-SG-MT2 |
|---|---|---|
| Product Type | Access Control Reader | Multi-Technology Reader |
| Reader / Form Factor | Compact Wall-Mount with Keypad | Mullion Single-Gang |
| Mounting | Wall-mount | Single Gang, North America / Europe |
| Credential — 125 kHz Proximity | Yes | Yes |
| Credential — iCLASS | Yes | Yes (HID listed) |
| Credential — MIFARE | — | Yes |
| Credential — DESFire | — | Yes |
| Credential — NFC / 13.56 MHz | — | Yes |
| PIN / Keypad | Yes — Alphanumeric, Tactile Feedback | Yes |
| Authentication Modes | Card, PIN, or Card + PIN | — |
| Communication Protocol | — | OSDP, Wiegand, RS-485 |
| Encryption | — | AES-256 |
| Input Voltage | — | 5 VDC |
| Housing Material | Polycarbonate | — |
| Environmental Rating | Outdoor-rated (per spec) | Not specified |
| Warranty | 2-year | Lifetime |
Frequently Asked Questions
Which should you choose: the 921PHRNEK0002D or the KT-SG-MT2?
The KT-SG-MT2 is the stronger choice when the priority is broad credential interoperability, documented AES-256 encryption, and OSDP-based supervised communication. The KT-SG-MT2 explicitly supports DESFire, MIFARE, HID, NFC/13.56 MHz, and 125 kHz credentials versus the 921PHRNEK0002D's iCLASS and proximity scope; it specifies AES-256 encryption where the 921PHRNEK0002D lists none; and it offers OSDP, Wiegand, and RS-485 interfaces versus no protocol specification for the HID unit. Conversely, the 921PHRNEK0002D is the defensible choice for HID-standardized iCLASS environments where outdoor-rated polycarbonate housing is required — it explicitly carries an outdoor deployment rating, while the KT-SG-MT2 provides no environmental rating in the supplied specs. Platform lock-in is also a factor: the 921PHRNEK0002D targets HID-native PACS, while the KT-SG-MT2 is optimized for Kantech ecosystems. Confirm dimensional specs and environmental ratings with each manufacturer before specifying.
Is the 921PHRNEK0002D or KT-SG-MT2 better for outdoor installations?
Based on the provided specs, the HID 921PHRNEK0002D is the documented outdoor-rated option, with a polycarbonate housing explicitly listed for outdoor deployment. The Kantech KT-SG-MT2 has no IP or outdoor rating stated in the supplied specifications, so outdoor suitability cannot be confirmed from the available data. Verify with Kantech before specifying the KT-SG-MT2 for exterior locations.
Which reader supports more credential types for a mixed-card-technology site?
The Kantech KT-SG-MT2 covers a broader published credential set: DESFire, MIFARE, HID cards, NFC/13.56 MHz smart card, and 125 kHz proximity. The HID 921PHRNEK0002D lists iCLASS and 125 kHz proximity plus PIN. If the site runs or plans to run DESFire or MIFARE cards, the KT-SG-MT2 is the spec-supported choice. For iCLASS-only or proximity-to-iCLASS migrations within HID infrastructure, the 921PHRNEK0002D covers the requirement.
Does either reader support OSDP for encrypted, supervised communication?
Yes — the Kantech KT-SG-MT2 explicitly lists OSDP alongside Wiegand and RS-485 in its communication specs. OSDP provides bidirectional, supervised, and encrypted reader-to-controller communication. The HID 921PHRNEK0002D's communication protocol is not specified in the provided specs, so OSDP support for that model cannot be confirmed from available data. Contact HID to verify protocol support before selecting it for OSDP-mandated deployments.
