Hanwha XNB-6001 vs i-PRO U11300-V2: Specification Comparison
Both the Hanwha XNB-6001 and the i-PRO WV-U11300-V2 are 2MP (1920×1080) wired IP box cameras targeting indoor fixed-scene surveillance. The XNB-6001 is a covert mini box designed for discreet mounting with interchangeable fixed lenses, while the WV-U11300-V2 is a compact box camera with a built-in 2.5x motorized varifocal lens. This comparison covers imaging capability, installation fit, and VMS/analytics integration based solely on published specifications.
In This Guide
How do the imaging specs compare?
Both cameras deliver 1920×1080 at 30fps and claim 120dB Wide Dynamic Range — the XNB-6001 via Wisenet WDR/SSDR and the WV-U11300-V2 via i-PRO Super Dynamic (level adjustable 0–31). The XNB-6001 does not publish a minimum illumination figure in the provided specifications. The WV-U11300-V2 specifies 0.1 lx color / 0.04 lx B&W at standard sensitivity and 0.006 lx color / 0.0025 lx B&W in enhanced mode, giving buyers a concrete low-light benchmark absent from the Hanwha data. The WV-U11300-V2 also publishes sensor size (approx. 1/2.8-type CMOS); no sensor size is stated for the XNB-6001.

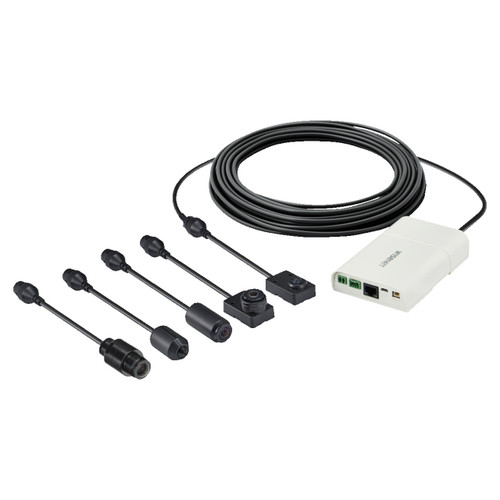

Lens approach differs significantly. The XNB-6001 ships without a lens and requires one of five optional fixed modules (SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680, SLA-T4680V); focal lengths and fields of view for those modules are not included in the provided spec sheet. The WV-U11300-V2 includes an integrated motorized varifocal lens covering 2.9–7.3 mm with 2.5x optical zoom, 43–100° horizontal field of view, and published DORI distances (Detect: 32.2 m wide / 97.5 m tele). The WV-U11300-V2 also states 2.5x–3.8x extra zoom at 1280×720. The XNB-6001 supports the SSNR V digital noise reduction engine and Digital Image Stabilization; the WV-U11300-V2 offers adjustable DNR (0–255) and Adaptive Black Stretch (0–255) but does not list digital image stabilization in the provided specifications.
What about installation and environment?
The XNB-6001 carries an IP66 weather-resistance rating, making it suitable for protected outdoor or dusty indoor environments. The WV-U11300-V2 is rated for indoor use only with no IP ingress rating listed in the provided specifications. Operating temperature ranges are similar but not identical: XNB-6001 operates from -10°C to +55°C; WV-U11300-V2 from -10°C to +50°C. Neither unit lists an IK impact rating in the provided specifications.
Both cameras are powered by PoE IEEE 802.3af. The XNB-6001 draws up to 6.5W (PoE Class 3) and also accepts 12VDC as an alternative power source. The WV-U11300-V2 draws 4.3W (PoE Class 2) and lists no DC alternative. The WV-U11300-V2 is considerably more compact (59×49×116 mm, ~165 g) than the XNB-6001 (131.1×28×86 mm, ~245 g). The XNB-6001 includes CVBS analog video output and a Micro USB port for installation preview; no equivalent installation output is listed for the WV-U11300-V2. Both provide an RJ-45 10/100 Ethernet port.
Which fits your VMS and analytics better?
Both cameras support ONVIF Profiles S, G, and T, ensuring broad VMS compatibility. The XNB-6001 additionally supports Hanwha's SUNAPI (HTTP API) and Wisenet Open Platform for third-party app integration. The WV-U11300-V2 supports MQTT, SFTP, and SRTP in its IPv4 protocol stack; the XNB-6001 supports SRTP but does not list MQTT or SFTP in the provided specifications. Simultaneous user limits differ: XNB-6001 supports up to 20 unicast users across up to 10 streaming profiles; WV-U11300-V2 supports up to 14 simultaneous users. The XNB-6001 also supports IPv6 natively alongside IPv4; IPv6 support for the WV-U11300-V2 is listed separately in the spec.
The XNB-6001 offers a significantly broader on-camera analytics suite per the provided specifications: defocus detection, fog detection, face detection, digital auto tracking, appear/disappear, enter/exit, loitering, tampering, virtual line, and directional detection, plus 8 polygonal motion zones and 32 privacy mask zones. The WV-U11300-V2 lists VMD (4 areas), Scene Change Detection (1 area), and audio detection; up to 8 privacy zones (VIQS supported). The XNB-6001 includes a hardware alarm I/O (1 input / 1 output); no alarm I/O terminals are listed for the WV-U11300-V2 in the provided specifications. Both cameras support on-board microSD/SDHC/SDXC storage — the XNB-6001 up to 256GB, the WV-U11300-V2 up to 512GB microSDXC. Audio is supported on both: the XNB-6001 provides selectable mic/line in and line out; the WV-U11300-V2 supports mic input, audio output, half and full duplex modes with AAC-LC, G.711, and G.726 compression. The WV-U11300-V2 holds UL, c-UL, CE, and IEC62368-1 safety certifications; no equivalent safety certifications are listed for the XNB-6001 in the provided specifications.
Which should you choose: the XNB-6001 or the U11300-V2?
Our take: The XNB-6001 is the stronger choice when covert deployment, broader edge analytics, alarm I/O, and outdoor-rated flexibility are priorities. Its IP66 rating and dual PoE/12VDC power options suit harsher or mixed indoor/outdoor installs where the WV-U11300-V2's indoor-only, no-IP-rating design cannot be used. The XNB-6001's analytics suite — including face detection, loitering, enter/exit, and virtual line — substantially exceeds the WV-U11300-V2's VMD/SCD/audio detection trio without requiring a separate analytics license per the published specs. Conversely, the WV-U11300-V2 is the better fit when scene flexibility and low-light performance are the deciding factors: its 2.5x motorized varifocal lens (2.9–7.3 mm, 43–100° FOV) eliminates the cost of a separate Hanwha lens module, and its published 0.006 lx color minimum illumination gives integrators a concrete sensitivity figure the XNB-6001 spec sheet does not provide. The WV-U11300-V2's 5-year warranty versus the XNB-6001's 3-year warranty and its 512GB edge storage ceiling versus 256GB also favor the i-PRO unit in long-retention, warranty-sensitive deployments.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Hanwha XNB-6001 | i-PRO U11300-V2 |
|---|---|---|
| Resolution | 1920×1080 (2MP) | 1920×1080 (2MP) |
| Image Sensor | — | Approx. 1/2.8-type CMOS |
| Lens / Focal Length | No lens included; optional SLA-series fixed modules | Integrated motorized varifocal 2.9–7.3 mm (2.5x optical zoom) |
| Horizontal Field of View | — | 43°–100° |
| Min. Illumination | — | 0.006 lx (Color) / 0.0025 lx (B&W) |
| Wide Dynamic Range | 120 dB (WDR / SSDR) | Max. 120 dB (Super Dynamic On, Level 31) |
| Max Frame Rate | 60fps | 30fps |
| Video Compression | H.265, H.264 (Main/Baseline/High), MJPEG | H.265, H.264, MJPEG |
| IP / Ingress Rating | IP66 | — |
| Operating Temperature | -10°C to +55°C | -10°C to +50°C |
| Power Input / PoE Class | PoE 802.3af (Class 3, max 6.5W); 12VDC (max 6W) | PoE 802.3af (Class 2, 4.3W) |
| Edge Storage | microSD/SDHC/SDXC up to 256GB | microSD up to 2GB / SDHC up to 32GB / microSDXC up to 512GB |
| Alarm I/O | 1 input / 1 output | — |
| Audio | Mic/line in (selectable); line out | Mic input / audio output; half & full duplex; AAC-LC, G.711, G.726 |
| ONVIF Profiles | S, G, T | S, G, T |
| Edge Analytics | Face detection, loitering, enter/exit, virtual line, directional, appear/disappear, tampering, fog, defocus, digital auto tracking | VMD (4 areas), Scene Change Detection (1 area), Audio Detection |
| Dimensions (W×H×D) | 131.1×28×86 mm | 59×49×116 mm |
| Weight | 245 g (0.54 lb) | ~165 g (0.36 lb) |
| Warranty | 3 years | 5 years |
Frequently Asked Questions
Which should you choose: the XNB-6001 or the U11300-V2?
The XNB-6001 is the stronger choice when covert deployment, broader edge analytics, alarm I/O, and outdoor-rated flexibility are priorities. Its IP66 rating and dual PoE/12VDC power options suit harsher or mixed indoor/outdoor installs where the WV-U11300-V2's indoor-only, no-IP-rating design cannot be used. The XNB-6001's analytics suite — including face detection, loitering, enter/exit, and virtual line — substantially exceeds the WV-U11300-V2's VMD/SCD/audio detection trio without requiring a separate analytics license per the published specs. Conversely, the WV-U11300-V2 is the better fit when scene flexibility and low-light performance are the deciding factors: its 2.5x motorized varifocal lens (2.9–7.3 mm, 43–100° FOV) eliminates the cost of a separate Hanwha lens module, and its published 0.006 lx color minimum illumination gives integrators a concrete sensitivity figure the XNB-6001 spec sheet does not provide. The WV-U11300-V2's 5-year warranty versus the XNB-6001's 3-year warranty and its 512GB edge storage ceiling versus 256GB also favor the i-PRO unit in long-retention, warranty-sensitive deployments.
Is the XNB-6001 or WV-U11300-V2 better for low-light performance?
Based on the provided specifications, only the WV-U11300-V2 publishes a minimum illumination figure: 0.006 lx (color) and 0.0025 lx (B&W) in enhanced mode. No minimum illumination value is listed for the XNB-6001, so a direct numerical comparison cannot be made. Buyers requiring a verified low-light specification should request the XNB-6001 datasheet or contact Hanwha directly before selecting based on this criterion.
Do I need to buy a separate lens for either camera?
Yes — the XNB-6001 ships without a lens and requires one of five optional SLA-series fixed-focal modules (SLA-T1080F, SLA-T2480, SLA-T2480V, SLA-T4680, SLA-T4680V); focal lengths and pricing for those modules are not included in the provided spec sheet and must be sourced separately. The WV-U11300-V2 includes an integrated motorized varifocal lens (2.9–7.3 mm, 2.5x optical zoom) in the box, with no additional lens purchase required.
Which camera supports more on-board edge storage?
The WV-U11300-V2 supports microSDXC cards up to 512GB. The XNB-6001 supports Micro SD/SDHC/SDXC up to 256GB. Both use the standard microSD form factor, so card sourcing is straightforward for either unit; the WV-U11300-V2 offers twice the maximum local retention capacity per the published specifications.
