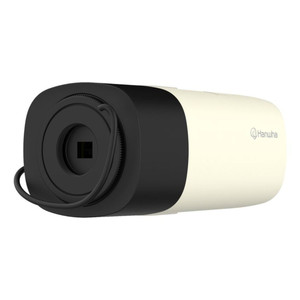

Hanwha XNB-6001 2MP Day/Night WDR Covert Mini Box Camera

Hanwha XNB-6001 2MP Day/Night WDR Covert Mini Box IP Camera

The Hanwha XNB-6001 is a discreet 2MP mini box camera engineered for organizations requiring unobtrusive, high-performance surveillance. Its compact 131.1 x 28 x 86mm form factor and covert design make it ideal for sensitive environments—financial institutions, retail spaces, and confidential meeting rooms—where visible security equipment may be inappropriate. Despite its minimal footprint, the XNB-6001 delivers full 1920x1080 resolution with advanced imaging capabilities that refuse to compromise on clarity or intelligence.

Key Features

• 2MP Full HD Resolution – 1920x1080 native output with multiple resolution options down to 320x240 for bandwidth optimization
• Wide Dynamic Range (WDR) – 120dB capability handles extreme lighting contrasts, balancing details in both bright and dark areas simultaneously
• 24/7 Day/Night Operation – Automatic electrical switching with advanced low-light performance and digital noise reduction (SSNRv)
• Intelligent Video Analytics – Defocus detection, motion detection (8-point polygonal zones), face detection, directional detection, loitering, tampering, virtual line crossing, and more
• PoE Powered – IEEE 802.3af Class 3 (max 6.5W), simplifying installation with single Ethernet cable
• Multiple Video Compression – H.265, H.264 (Main/Baseline/High), and MJPEG with Smart Codec (WiseStreamII) for adaptive bitrate control
• Local & Cloud Storage – Micro SD/SDHC/SDXC support up to 256GB with event-triggered FTP and NAS recording
• IP66 Rated – Weatherproof design suitable for both indoor and outdoor installations

Technical Highlights

The XNB-6001 streams at up to 60fps (H.265/H.264) or 30fps (MJPEG) with support for 10 concurrent profiles and 20 unicast users. Its 1024MB RAM and 256MB Flash enable smooth operation under demanding conditions. Advanced image processing includes electronic shutter speed control (2–1/12,000 sec), digital image stabilization, defog, lens distortion correction (LDC), and 32-point privacy masking with color and mosaic options. The camera supports flexible white balance modes (ATW, AWC, manual, indoor/outdoor presets) and multiple gain control levels.

Security is enterprise-grade: HTTPS/SSL encryption, digest authentication, IP filtering, 802.1X (EAP-TLS/EAP-LEAP), and comprehensive audit logging. The camera is ONVIF Profile S/G/T compliant and integrates via SUNAPI and Wisenet open platform APIs. Audio I/O (selectable mic/line in with 2.5VDC phantom power; line out at 1Vrms) and one alarm input/output port support event correlation and external device control.

Applications

Ideal for covert monitoring in retail loss prevention, bank teller areas, executive offices, VIP lounges, and restricted-access zones. The compact form factor permits concealment in suspended ceilings or tight spaces where traditional domes or turrets are impractical. Multi-language interface (English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, and others) supports global deployments.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNB-6001 bridges the gap between stealth and capability. Its 120dB WDR engine consistently delivers balanced exposure in mixed-lighting retail and banking environments where windows, spotlights, and shadow zones coexist. H.265 encoding reduces bandwidth by 50% compared to H.264 at equivalent quality—critical for bandwidth-constrained remote sites.

The embedded analytics suite (motion, face, directional, tampering, loitering, line-crossing) enables rule-based alerting without external VMS overhead, reducing server load in large deployments. IP66 weatherproofing paired with -10 to +55°C operating range supports covered outdoor installations (eaves, awnings, mild climates). For organizations balancing privacy concerns with security requirements, the covert mini-box form factor combined with privacy-masking tools (32 zones, color/mosaic options) provides compliant surveillance that respects personal space while protecting assets.
