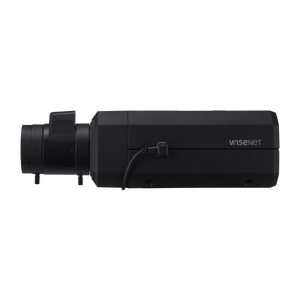

Hanwha XNB-6000 2MP Day/Night WDR PoE Box Camera

Hanwha XNB-6000 2MP Day/Night WDR PoE Box Camera

The Hanwha XNB-6000 is a fixed-position 2MP box camera built for stationary surveillance in retail, manufacturing, office, and outdoor perimeter deployments. It runs on standard PoE power (802.3af), ships with H.265 and H.264 codec support, and delivers clear imagery across bright and dim lighting conditions via a 150dB Wide Dynamic Range (WDR) engine. The IP66 weatherproof rating means rain and dust are not a concern; indoor mounting is equally straightforward.

Key Features

• 2MP CMOS with 150dB WDR: Captures fine detail (2048 × 1536 resolution) even in mixed-light scenes—critical in retail spaces with large windows or manufacturing floors with spotlights. BLC, HLC, and SSDR backlight compensation modes handle edge cases where WDR alone isn't enough.
• Day/Night with Auto ICR and 0.001 Lux Sensitivity: Infrared Cut filter automatically engages at dusk; in full darkness, the 1/2.8" CMOS sensor drops to black-and-white mode at 0.001 Lux minimum illumination. Delivers usable monochrome frames from near-darkness without an external illuminator, reducing total system cost.
• H.265 Compression—Meaningful Bandwidth Savings: H.265 halves storage and bandwidth requirements versus H.264 at equivalent quality. On 24/7 recording across multiple XNB-6000 units, this translates to lower NVR storage spend and reduced network traffic during peak event review periods.
• IEEE 802.3af PoE (7.5W max): Single RJ-45 cable delivers both power and data. Low power draw means it won't overload standard switches; no separate 12V or 24V power supplies to route and manage. Alternative 12VDC or 24VAC inputs available if PoE isn't viable on-site.
• IP66 Weatherproof Enclosure: Solid dust and rain resistance for outdoor eaves, covered loading docks, and semi-exposed mounting. Not rated for full submersion or heavy spray washdown (that requires IP67 or higher).
• C and CS Mount Lens Flexibility: Accommodates optional 2.8–9mm varifocal lenses with either DC auto iris or P iris control. Allows on-site lens swapping to optimize field of view without camera replacement.
• Dual microSD/SDHC/SDXC Slots (up to 512GB): Local event-triggered recording on edge cards reduces reliance on centralized NVR storage. Useful for temporary archive, backup of critical incidents, or offline sites with unreliable network uplinks.
• Comprehensive Analytics Suite: Motion detection, directional detection, virtual line crossing, defocus alerts, and tampering alerts run on-board. Reduces false positives from scene noise and enables simple rule-based triggers without a dedicated analytics appliance.
• ONVIF Profile S/G/T Support: Integrates into any ONVIF-compliant VMS—Milestone, Genetec, exacqVision, or others—without vendor lock-in. Also supports RTSP, HTTPS/SSL, IPv4/IPv6, DDNS, and NTP for flexible network deployment.
• 802.1X EAP-TLS/LEAP Security: Enterprise authentication for highly regulated environments (healthcare, finance, critical infrastructure). User access logs provide audit trails for compliance reporting.
• Audio I/O with G.711/G.726 Compression: Selectable microphone, line-level, or built-in audio input. Compressed audio streams alongside video without adding bandwidth overhead.

Integration and Compatibility

The XNB-6000 supports RS-485/422 serial control protocols compatible with Pelco-D, Pelco-P, Bosch, and Honeywell PTZ command sets—useful if you need to integrate with legacy video matrix or multiplex systems during migration. Dual Ethernet connectivity and standard web-based configuration interface (HTTPS login with digest authentication and IP filtering) integrate smoothly into centralized management workflows. Edge storage via microSD allows isolated temporary recording when network conditions degrade.

What's in the Box

Evidence of packaging contents is not available. Verify exact accessories with the distributor or manufacturer before ordering if mounting brackets, cables, or installation hardware are required for your deployment.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNB-6000 is a solid choice for fixed-position surveillance where field of view doesn't change and detailed image capture is non-negotiable. Its 150dB WDR capability is genuinely useful—I've seen retail deployments where storefront glare or warehouse skylighting would otherwise wash out faces or asset details. The H.265 codec alone pays for itself on large camera counts; recalculate your storage timeline and you'll see the difference in months, not years.

Technical Highlights:

• 150dB WDR with multi-mode backlight handling: Stands up to high-contrast retail and outdoor scenes without overshooting on exposure correction. The BLC and HLC modes handle edge cases (bright fluorescent overhead with shadowed foreground) that flat WDR sometimes misses.
• 0.001 Lux minimum illumination in B/W mode: You won't need IR lighting in most low-light indoor scenarios—a real budget win compared to IR-dependent alternatives. Monochrome footage is cleaner at threshold light levels anyway.
• H.265 at up to 60 fps for video output: Smooth motion on fast-moving subjects (conveyor lines, foot traffic) while keeping file sizes manageable. MJPEG fallback at 30 fps ensures compatibility with older VMS platforms.

Deployment Considerations:

• The XNB-6000 is a fixed camera—no pan, tilt, or zoom. Lens choice and mount position lock in your field of view. Plan coverage carefully; varifocal lens options (2.8–9mm available) provide some flexibility on-site.
• PoE power is sufficient (7.5W max), but confirm your PoE switch has headroom if you're daisy-chaining multiple cameras on the same circuit. A 65W or 95W PoE injector can comfortably handle 8–12 XNB-6000 units.
• IP66 is rain and dust resistant, but not submersion-rated. If you need full washdown or poolside mounting, specify IP67 or higher from another family.

The XNB-6000 excels in retail loss-prevention deployments, office building entry points, and outdoor perimeter monitoring where you need clean daytime imagery and reliable low-light fallback without the cost and complexity of pan-tilt mechanics or sophisticated IR arrays. Fixed positioning actually simplifies installation and reduces alignment drift over time—a real operational advantage in high-volume camera rollouts.

Frequently Asked Questions

Q: Can the XNB-6000 be used indoors and outdoors?

A: Yes. The IP66 weatherproof rating allows outdoor eaves, covered porches, and weather-exposed mounting. Indoor installations (offices, retail interiors) are equally straightforward since there's no environmental stress on the enclosure.

Q: What's the minimum light level the XNB-6000 needs to produce usable footage?

A: In color mode during daytime, normal scene illumination applies. At dusk and into darkness, the auto ICR switches to black-and-white mode and achieves 0.001 Lux sensitivity—roughly the light level of a star-lit night. In most indoor low-light scenarios (parking garages, stairwells), no external IR lighting is needed.

Q: Does the XNB-6000 work with my VMS platform?

A: If your VMS supports ONVIF Profile S, G, or T, the XNB-6000 integrates directly. Milestone, Genetec, exacqVision, and most mainstream platforms are compatible. Confirm your VMS software version meets the ONVIF standard; older systems may require firmware updates.

Q: How much bandwidth does H.265 encoding save compared to H.264?

A: H.265 typically reduces bandwidth 40–60% at equivalent quality, depending on scene complexity and motion. A static retail floor scene compresses more aggressively than a busy street with moving vehicles. Test with your specific VMS to confirm actual savings in your environment.

Q: Can I record locally to an SD card if the network goes down?

A: Yes. The dual microSD/SDHC/SDXC card slots support up to 512GB each and can be configured for event-triggered or continuous recording. This provides temporary local archive and backup during network outages or as a failsafe for high-value incidents.

Q: What lens options are available for the XNB-6000?

A: Optional C and CS mount lenses are supported, including varifocal 2.8–9mm options with DC auto iris or P iris control. Fixed focal lengths are also compatible. Consult the lens compatibility list or contact the manufacturer if you have a specific lens in mind.
