Hanwha C9022RV vs Pelco IMF82-1I: Specification Comparison

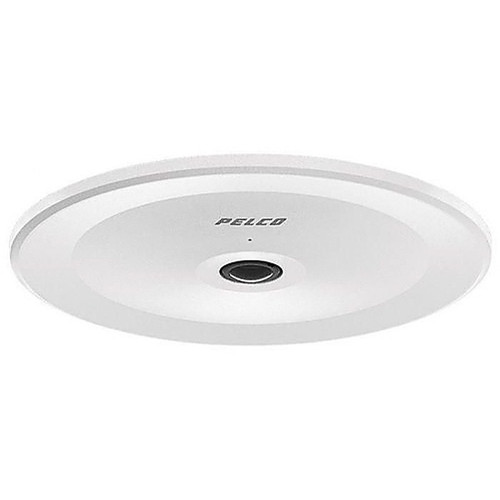

Both the Hanwha PNM-C9022RV and the Pelco IMF82-1I Sarix Fisheye 3 are 8-megapixel, fixed-lens IP cameras designed to cover large areas with a single unit, reducing the number of cameras and licenses required for open-plan spaces. The Hanwha uses four discrete 2MP sensors stitched into a 209° panoramic dome; the Pelco uses a single fisheye lens to deliver a 360° hemispherical view. Buyers choosing between them are typically weighing panoramic detail and outdoor capability against true 360° coverage in a controlled indoor environment.
In This Guide
How do the imaging specs compare?
The Hanwha PNM-C9022RV outputs a stitched resolution of up to 5120×1568 pixels across its four 1/2.8" CMOS sensors, each fitted with a 2.8 mm f/2.0 fixed lens, yielding a 209° horizontal field of view at up to 20 fps. It includes WiseIR illuminators rated to 20 m (65.6 ft) and specifies minimum illumination of 0.1 lux in color and 0 lux with IR active. Wide dynamic range is specified at 120 dB. The Pelco IMF82-1I captures a single 3264×2448 (8MP) image through a 2.7 mm f/2.5 fisheye lens covering 180°/360° depending on dewarping mode, at 12.5 fps at full resolution. Minimum illumination is listed at 0.10 lux; no IR illuminator is present. WDR is stated as supported but the Pelco spec sheet notes it is limited to up to 83 dB when active, versus the Hanwha's rated 120 dB.
In low-light environments the Hanwha holds a clear advantage: its Auto ICR day/night switch combined with active IR lets it record at 0 lux, while the Pelco IMF82-1I has no integrated IR and depends entirely on ambient light. The Hanwha's four-sensor architecture also provides a higher aggregate pixel budget for its 209° arc, whereas the Pelco's single-sensor fisheye delivers true 360° hemispherical coverage at the cost of the characteristic radial distortion that requires dewarping. Frame rate favors the Hanwha at 20 fps versus 12.5 fps for the Pelco at full resolution.
What about installation and environment?
The Hanwha PNM-C9022RV is rated IP66 and IK10, carries a NEMA 250 Type 4X designation, and is specified for an operating temperature range of -40°C to +55°C (-40°F to +131°F), making it suitable for outdoor installation in harsh climates. It weighs 2,900 g and measures Ø253×170 mm. Power is via PoE+ (IEEE 802.3at, Class 4) or 12 VDC, with a stated maximum draw of 24.5 W. Conduit entry accepts 3/4" (M25) fittings, and a hanging mount accessory (SBP-276HMW) is listed.
The Pelco IMF82-1I is rated IP52 and IK10, with an operating temperature of -10°C to +60°C. The IP52 rating (protected against limited dust ingress and dripping water) is an indoor rating only; the spec sheet designates the camera's environment rating as Indoor. It measures 6"×6"×2.4" and is powered via PoE+ (802.3at, Class 3). Power class 3 implies a lower maximum draw ceiling than the Hanwha's Class 4. Buyers requiring outdoor or wash-down-area installation should note that the IMF82-1I's IP52 rating is not suited for those conditions.
Which fits your VMS and analytics better?
The Hanwha PNM-C9022RV supports ONVIF Profile S, G, T, and M, plus Hanwha's proprietary SUNAPI and Wisenet SDK. Its AI analytics engine—running on a dedicated AI chipset—supports person and vehicle classification, virtual line crossing with direction detection, virtual area loitering/intrusion/enter/exit, and defocus detection. BestShot is supported. Motion detection offers up to 8 polygonal zones with 8 points each. Audio is bidirectional: a selectable mic/line input (2.5 VDC supply, 2 kΩ impedance) and a line output (max 1 Vrms). Edge storage supports dual Micro SD/SDHC/SDXC slots up to 512 GB each (1 TB total). The camera includes 2 configurable alarm I/O ports and supports SRTP, 802.1X (EAP-TLS/LEAP/PEAP), and device certificates from Hanwha's Root CA.
The Pelco IMF82-1I supports ONVIF Profile S, T, and G. Its Pelco Smart Analytics suite offers 8 on-camera behavior detections, including object detection, loitering, and line crossing; specific classification detail (person vs. vehicle) is not stated in the provided specifications. Audio microphone support is noted but audio output and line-in specs are not provided. MicroSD edge storage is listed but capacity limits are not specified in the provided data. Compression is stated as H.264 in the primary spec block, though additional fields reference H.265 and H.264—H.265 support is not confirmed in the primary specification. The camera includes ONVIF Profile G for edge recording. Security certifications listed include UL, cUL, CE, RoHS, RCM, EAC, UKCA, KC, BIS, and NOM.
Which should you choose: the C9022RV or the IMF82-1I?
Our take: The PNM-C9022RV is the stronger choice when outdoor coverage, low-light performance, and deep AI analytics are required; the IMF82-1I is the appropriate choice for indoor 360° ceiling coverage on a Pelco VMS ecosystem. Key spec deltas: the Hanwha achieves 0 lux minimum illumination via integrated WiseIR at 20 m versus no IR on the Pelco; the Hanwha's WDR is rated at 120 dB versus up to 83 dB for the Pelco; and the Hanwha supports four ONVIF profiles (S/G/T/M) with confirmed H.265, dual SD slots up to 1 TB, and 2 alarm I/O ports, while the Pelco lists three profiles (S/T/G) and does not confirm H.265 in its primary spec. The Pelco's 360° hemispherical fisheye coverage and 5-year warranty (versus Hanwha's 3-year) are meaningful differentiators for indoor deployments. Specifiers on a Pelco VMS with indoor-only sites should evaluate the IMF82-1I; those requiring outdoor rating or IR performance should select the PNM-C9022RV.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Hanwha C9022RV | Pelco IMF82-1I |
|---|---|---|
| Camera Type | Multi-sensor panoramic dome | Fisheye dome |
| Max Resolution | 5120×1568 (stitched, 4 sensors) | 3264×2448 (single sensor) |
| Image Sensor | 1/2.8" CMOS ×4 | Not specified |
| Lens / Focal Length | 2.8 mm fixed ×4, f/2.0 | 2.7 mm fisheye, f/2.5 |
| Field of View | 209° H / 60° V | 360° (fisheye) / 180° (hemispherical) |
| Max Frame Rate | 20 fps | 12.5 fps (full resolution) |
| Min. Illumination | 0.1 lux color / 0 lux IR | 0.10 lux |
| IR Illumination | WiseIR 20 m (65.6 ft) | None |
| Wide Dynamic Range | 120 dB | Up to 83 dB |
| Video Compression | H.265 / H.264 / MJPEG | H.264 (H.265 not confirmed in primary spec) |
| IP Rating | IP66 | IP52 |
| IK / Impact Rating | IK10 | IK10 |
| Operating Temperature | -40°C to +55°C | -10°C to +60°C |
| Power / PoE Class | PoE+ IEEE 802.3at, Class 4 / 12 VDC; 24.5 W max | PoE+ 802.3at, Class 3 |
| ONVIF Profiles | S / G / T / M | S / T / G |
| Edge Storage | Dual Micro SD up to 1 TB (512 GB ×2) | MicroSD (capacity not specified) |
| Audio | Mic/line in + line out (bidirectional) | Microphone supported (output not specified) |
| Alarm I/O | 2 configurable I/O ports | Not specified |
| Outdoor Rated | Yes (IP66, NEMA 4X) | No (IP52, Indoor) |
| Warranty | 3 years | 5 years |
Frequently Asked Questions
Which should you choose: the C9022RV or the IMF82-1I?
The PNM-C9022RV is the stronger choice when outdoor coverage, low-light performance, and deep AI analytics are required; the IMF82-1I is the appropriate choice for indoor 360° ceiling coverage on a Pelco VMS ecosystem. Key spec deltas: the Hanwha achieves 0 lux minimum illumination via integrated WiseIR at 20 m versus no IR on the Pelco; the Hanwha's WDR is rated at 120 dB versus up to 83 dB for the Pelco; and the Hanwha supports four ONVIF profiles (S/G/T/M) with confirmed H.265, dual SD slots up to 1 TB, and 2 alarm I/O ports, while the Pelco lists three profiles (S/T/G) and does not confirm H.265 in its primary spec. The Pelco's 360° hemispherical fisheye coverage and 5-year warranty (versus Hanwha's 3-year) are meaningful differentiators for indoor deployments. Specifiers on a Pelco VMS with indoor-only sites should evaluate the IMF82-1I; those requiring outdoor rating or IR performance should select the PNM-C9022RV.
Is the PNM-C9022RV or the IMF82-1I better for low-light and nighttime coverage?
The PNM-C9022RV is significantly better for low light. It includes WiseIR illuminators rated to 20 m (65.6 ft) and achieves 0 lux minimum illumination with IR active. The IMF82-1I has no integrated IR illuminator and a minimum illumination of 0.10 lux, so it depends entirely on ambient or supplemental lighting. If the scene has no external lighting at night, the IMF82-1I will not produce a usable image.
Can I use the IMF82-1I outdoors?
No. The IMF82-1I carries an IP52 rating, which covers limited dust ingress and dripping water only, and is designated as an Indoor camera with an operating temperature floor of -10°C. The PNM-C9022RV is rated IP66, IK10, NEMA 250 Type 4X, and operates down to -40°C, making it the appropriate choice for outdoor or harsh-environment installations.
Which camera gives true 360° coverage — the panoramic dome or the fisheye?
The Pelco IMF82-1I provides true 360° hemispherical coverage via its fisheye lens in ceiling-mount mode, though the image requires dewarping and frame rate drops to 12.5 fps at full resolution. The Hanwha PNM-C9022RV covers 209° horizontally (not a full 360°) using four stitched sensors, but delivers up to 20 fps and includes IR illumination. If seamless 360° overhead coverage in an indoor environment is the priority, the IMF82-1I is the appropriate product; if wide-area outdoor coverage with IR and higher frame rate matters more, the PNM-C9022RV is the better fit.
