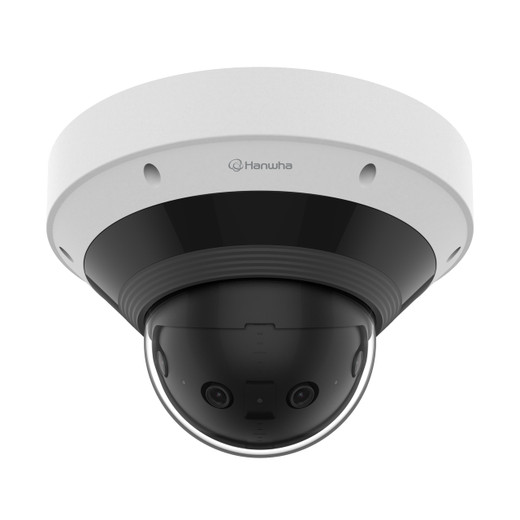

Hanwha PNM-C9022RV 8MP 4K Panoramic IR Dome IP Camera

Hanwha PNM-C9022RV 8MP 4K Panoramic IR Outdoor Dome Camera

The Hanwha PNM-C9022RV is a four-sensor panoramic dome camera designed for wide-area outdoor surveillance where a single fixed viewpoint must cover large zones without blind spots. By stitching four separate 2MP (1/2.8" CMOS) sensors into an 8MP composite image with a 209° horizontal field of view, this camera eliminates the need for multiple fixed units across parking lots, building perimeters, or open landscapes. The 60° vertical coverage ensures you capture activity from ground level to mid-height structures in a single stream.

Key Features

• 209° Panoramic Stitching: Four 2.8mm fixed lenses combined into one image reduce installation points and simplify cabling. Fewer cameras means fewer power injectors and less network overhead—a real cost factor when deploying across a large property. You trade lens flexibility for coverage density.
• 8MP (4K) Resolution: The stitched output delivers 4K clarity, meaning zoomed crops retain usable detail for license plate or face ID workflows. At 20 fps max (60Hz/50Hz selectable), real-time playback is fluid enough for live monitoring, though not optimized for fast-moving traffic analysis.
• H.265 Compression Support: H.265 (HEVC) cuts storage bandwidth roughly in half versus H.264 under typical outdoor lighting. On 24/7 recording, that translates to either halving your storage footprint or doubling retention time on the same hardware. H.264 and MJPEG are also supported if your VMS or NVR lacks H.265 decode capability.
• WiseIR with 65.6-Foot (20m) Range: Built-in IR illumination with Hanwha's WiseIR technology ensures clear monochrome imaging in complete darkness. At 65.6 feet, the range covers most parking lots and small perimeter zones, though dense foliage or reflective surfaces can degrade effective range. If you need illumination beyond ~25 meters, consider supplemental external IR or accept lower contrast at distance.
• AI Object Detection (Person & Vehicle): On-device AI runs object classification, virtual line (crossing/direction detection), and virtual area (loitering/intrusion) analytics without requiring a separate analytics server. This reduces false alarms from weather, waving branches, or shadows and offloads processing from your NVR or VMS. Standard motion detection, tampering detection, and audio analysis are also available.
• IP66 / IK10 Environmental Rating: IP66 means pressurized water jets (like hose spray) won't damage the camera, and dust ingress is prevented—essential for coastal or industrial settings. IK10 resists 20 joule impacts (equivalent to 5kg dropped from 40cm), covering accidental tool strikes or minor vandalism, but won't survive intentional impact. Hard-coated dome bubble adds additional protection.
• PoE Power (802.3af Compliant): Draws under 13W, so standard 802.3af 15.4W PoE is sufficient; no need for PoE+ (High Power). This matters on older switches or long cable runs where every watt of headroom counts. Pair with a standard gigabit PoE injector or managed PoE switch.
• Edge Storage & Connectivity: Two microSD slots (up to 512GB each, 1TB total) provide local failover recording if the network drops. Hanwha's USB connector simplifies initial setup, and optional Wi-Fi adapter support offers flexibility (though wired Gigabit Ethernet is the recommended primary link for 24/7 reliability). Standard RJ-45 shielded connector.

Integration & Compatibility

The PNM-C9022RV supports standard IP camera protocols: ONVIF (confirmable via vendor documentation), H.265/H.264/MJPEG compression, and Ethernet 10/100/1000BASE-T. Integrates with major NVR and VMS platforms via RTSP or proprietary Hanwha protocols. Verify your recording system's H.265 codec support before committing; many legacy NVRs require H.264 fallback. Refer to your VMS documentation for exact codec and frame-rate compatibility.

For deployment planning, consult a outdoor IP cameras buying guide to understand coverage overlap, mounting height, and PoE infrastructure requirements. This model's power envelope is moderate, but the four-sensor design demands careful placement to avoid edge distortion in tight spaces.

When to Choose a Different Model

If you need higher frame rates (30+ fps), narrower coverage (sub-180° FOV), or significantly longer IR range (>25m in harsh conditions), evaluate other Hanwha surveillance cameras in the fixed-dome or PTZ family. If your deployment requires submersion or salt-spray immersion, IP66 alone may not suffice—escalate to IP67/68-rated variants. For indoor-only panoramic coverage, consider lower-cost compact panoramic domes without outdoor weatherproofing.

Frequently Asked Questions

Q: What is the maximum storage capacity with the PNM-C9022RV's microSD slots?

A: Two microSD/SDHC/SDXC slots support up to 512GB per slot, totaling 1TB of edge storage for local backup or failover recording.

Q: Does the PNM-C9022RV support ONVIF?

A: Yes, the camera supports ONVIF protocols for integration with third-party NVR and VMS platforms. Verify your recording system's compatibility with H.265 and panoramic stitched streams.

Q: Can I use the PNM-C9022RV in direct rain or coastal environments?

A: IP66 rating handles direct spray and submersion-free rain. For coastal salt-spray or high-pressure wash-down environments, confirm with your installer that the shielded connector and housing coatings meet your corrosion exposure level.

Q: What is the PoE power requirement for the PNM-C9022RV?

A: The camera draws under 13W, making it compatible with standard 802.3af PoE (15.4W). No PoE+ or external power supply is required.

Q: How does H.265 compression affect storage and bandwidth?

A: H.265 typically reduces bandwidth and storage usage by 40–60% compared to H.264 at the same quality level. This is significant on 24/7 multi-camera systems. Ensure your NVR or VMS supports H.265 decoding; if not, fall back to H.264.

Q: Is the IR illumination adequate for a 100-meter perimeter?

A: The 65.6-foot (20m) WiseIR range is optimal for parking lots and standard building perimeters. Beyond 25 meters, contrast and detail degrade noticeably. For longer distances, plan supplemental external IR or accept monochrome detail loss at distance.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PNM-C9022RV is a solid fit for large-footprint outdoor sites where you need to cover 180–200° with a single camera and can live with fixed lenses. The 209° panoramic stitch across four 2MP sensors eliminates the topology headache of multi-camera arrays, and the on-device AI (person/vehicle detection, line-crossing, area intrusion) runs locally, keeping your recording bandwidth and NVR CPU load predictable. The real-world strength is simplicity: one PoE feed, one network stream, one mount point instead of three or four separate domes.

Technical Highlights:

• Four-Sensor 2.8mm Stitching: 2.8mm fixed focal length on each 1/2.8" CMOS means no zoom or refocus capability, but distortion-free panoramic geometry and minimal edge artifacts if properly mounted and calibrated. Stitching quality depends heavily on alignment during installation—avoid tilted mounts.
• H.265 with Fallback Support: H.265 reduces storage by 40–60% versus H.264; however, not every NVR decodes H.265 natively. Build your deployment plan with H.264 as the fail-safe and H.265 as the optimization layer once you confirm codec support in your VMS.
• WiseIR 20m / 65.6ft Range: Adequate for most parking lots and small perimeters, but not a substitute for external lighting in very dark industrial sites. IR range drops significantly if the dome gets dusty or fogged—budget for periodic cleaning.

Deployment Considerations:

• Panoramic stitching requires careful installation: mounting angle, height, and rotation all affect image alignment. If the dome is tilted more than a few degrees, seams become visible or overlap occurs. Hire an installer experienced with panoramic systems.
• Four simultaneous H.265 streams over PoE will consume roughly 4–8 Mbps aggregate at 20 fps depending on scene complexity. On congested networks, prioritize this camera's traffic via QoS; a sudden drop in frame rate or resolution can break your AI detection pipeline.
• Edge storage (microSD, 1TB max) is useful for temporary failover, but don't plan long-term retention there. SD cards degrade under continuous 24/7 write cycles; rotate stock or use them as short-term buffer only (24–48 hours).

Ideal for parking lot perimeters, building facades, or warehouse yards where fixed coverage is non-negotiable and PTZ flexibility is not a priority. Avoid tight corridors or spaces <5 meters wide, where the wide field of view produces compressed, hard-to-read detail.
