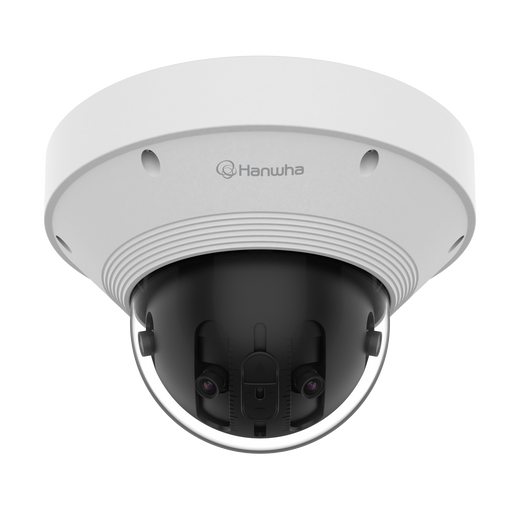

Hanwha PNM-9022V 8MP Panoramic Network IP Camera

Hanwha PNM-9022V 8MP Panoramic Network IP Camera

The Hanwha PNM-9022V delivers exceptional wide-area surveillance coverage with its dual-mode panoramic design, capturing either 209° or 180° fields of view in a single frame. With native 8MP resolution and advanced image stitching across four 1/2.8" CMOS sensors, this camera provides comprehensive situational awareness for large spaces without blind spots or multiple camera installations.

Key Features

• 8MP panoramic imaging with 209° or 180° field of view
• Quad CMOS sensor array (1/2.8" x 4) with precision stitching
• Up to 4608x1800 resolution at 30fps
• H.265/H.264 and MJPEG compression with WiseStream II codec optimization
• Extreme WDR (120dB) with BLC, HLC, and SSDR for challenging lighting
• Low-light performance: 0.1 Lux color, 0.01 Lux B/W (F1.6)
• Advanced video analytics: motion detection, virtual line crossing, tampering alerts, appear/disappear, enter/exit events, and audio detection
• Heatmap business intelligence for crowd pattern analysis
• Pan/tilt capability (0-355° pan, 0-60° tilt)
• IP66 and IK10 rated for outdoor durability
• PoE+ powered with optional 12VDC support
• Dual microSD/SDHC/SDXC slots (up to 1TB total)
• Selectable audio input/output with multiple codec support
• ONVIF Profile S/G/T and Wisenet open platform compatibility
• 802.1X authentication and HTTPS/SSL security

Technical Highlights

The PNM-9022V integrates multiple compression standards to balance bandwidth efficiency with image quality. WiseStream II smart codec technology enables manual region-of-interest encoding across five designated areas, reducing bitrate without sacrificing detail in critical zones. The camera supports up to 20 unicast or multicast streaming sessions simultaneously, making it ideal for distributed monitoring across enterprise networks.

Video analytics run natively on the device, detecting defocus, motion, directional crossing events, and audio anomalies without external processing overhead. Eight motion detection zones with polygon configuration and 32 privacy masking areas provide flexible deployment in sensitive environments. Electronic shutter speeds from 2 to 1/12,000 seconds accommodate varying light conditions, while auto white balance and day/night ICR switching maintain consistent image quality around the clock.

The camera's extreme WDR capability (120dB) combined with defog support handles complex scenes with simultaneous bright and dark areas—essential for parking structures, building entries, and mixed indoor-outdoor installations. Built-in mic, line-level audio input, and selectable audio compression enable two-way communication or audio verification capabilities.

Applications

Ideal for large-scale deployments including parking facilities, warehouse perimeters, airport terminals, shopping centers, transit stations, and campus environments. The panoramic format eliminates coverage gaps while reducing infrastructure and maintenance costs associated with traditional multi-camera setups. Extreme rating certifications (IP66, IK10, NEMA 4X) ensure reliable operation in industrial and outdoor weather conditions.

Marty Allison

The PNM-9022V represents a significant advancement in single-camera wide-area coverage. The quad-sensor architecture with real-time image stitching delivers seamless panoramic output without the synchronization challenges of external stitching. At 8MP effective resolution across panoramic formats, the camera provides sufficient pixel density for forensic detail while maintaining 30fps performance—critical for detecting rapid movements or vehicle activity across expansive areas.

WiseStream II codec management proves especially valuable in bandwidth-constrained deployments, preserving motion in monitored zones while compressing static background. The heatmap analytics function transforms raw video into actionable business intelligence for retail layout optimization or crowd management. Dual microSD recording with event-triggered upload to FTP/email ensures footage retention even during extended network outages, important for regulatory compliance and incident investigation.

PoE+ power delivery simplifies installation on existing network infrastructure, though dual-power support (PoE+ and 12VDC) provides flexibility for facilities with legacy power systems.
