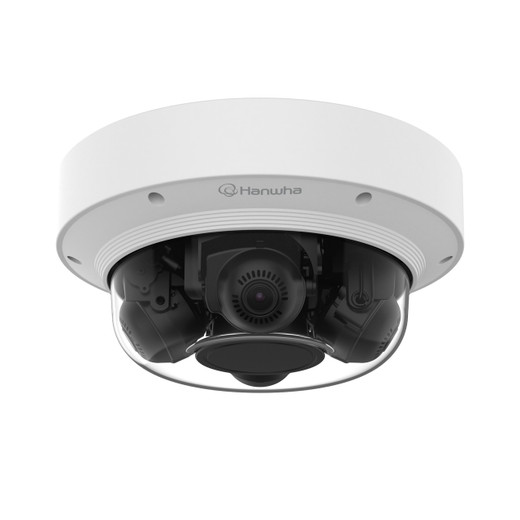

Hanwha PNM-9084QZ1 8MP 2MP x 4 Multi-Sensor, Multi-Directional PTRZ IP Camera

Hanwha PNM-9084QZ1 8MP Multi-Sensor PTZ IP Camera

The Hanwha PNM-9084QZ1 is a sophisticated multi-sensor IP camera that combines four independent 2MP sensors into a single unified system, delivering 8MP aggregate resolution while operating on one IP address. This innovative design enables simultaneous multi-directional monitoring without network overhead, making it an ideal solution for wide-area surveillance where comprehensive coverage is critical.

Key Features

• 8MP total resolution (2MP × 4 independent sensors) at up to 60fps H.265/H.264
• Motorized varifocal lens 3.0–6mm with 2x zoom (107° to 56.3° horizontal FOV)
• Full pan (0–360°), tilt (0–73°), rotation (0–90°), and zoom control via remote adjustment
• 120dB WDR with advanced backlight compensation (BLC, HLC, SSDR)
• Ultra-low minimum illumination: 0.04lux color / 0.004lux B&W
• IP66, IK10, NEMA 4X rated for harsh outdoor environments
• Four independent microSD/SDHC/SDXC slots (up to 256GB each) for edge storage
• HPoE power via IEEE 802.3bt with included injector
• IP66 and IK10 vandal-resistant dome design

Advanced Analytics & Detection

Embedded analytics include motion detection with 8-point polygonal zones, directional detection, loitering, tampering detection, fog detection, defocus detection, face detection, virtual line crossing, appear/disappear, and enter/exit events. Audio detection is also supported via selectable microphone or line-level input.

Video Compression & Streaming

The camera supports triple codec technology (H.265, H.264, MJPEG) with WiseStream II intelligent compression to optimize bandwidth. Up to 10 simultaneous streaming profiles support both unicast (20 users) and multicast delivery. Manual 5-area smart codec regions and target bitrate level control ensure efficient resource utilization.

Optical Performance

With a minimum object distance of 0.5m and adaptive white balance (ATW, AWC, manual, indoor, outdoor modes), the camera delivers sharp imagery in diverse lighting conditions. Lens distortion correction (LDC), digital image stabilization, and advanced noise reduction (SSNRⅤ) ensure consistent video quality. Electronic shutter speeds range from 2 to 1/12,000 seconds with anti-flicker support.

Integration & Security

ONVIF Profile S/T compliance, SUNAPI HTTP API support, and Wisenet open platform integration enable seamless deployment in multi-vendor environments. Security features include HTTPS/SSL encryption, digest and login authentication, IP address filtering, 802.1X EAP-TLS/EAP-LEAP support, and comprehensive user access logging.

Installation & Environmental Resilience

The compact aluminum dome (Ø251 × 116.5mm, 3kg) mounts via standard 3/4" conduit and gangbox with the optional SBP-276HMW hanging mount. Operating temperature range of −40°C to +55°C and <90% RH, combined with IP66 sealing, ensures reliability in extreme climates. Maximum power consumption of 33W (typical 20W) allows efficient operation over PoE++.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The PNM-9084QZ1 represents a next-generation approach to multi-directional surveillance by consolidating four independent 2MP streams into a single network address. Unlike traditional PTZ cameras that pan mechanically across a fixed area, this multi-sensor design eliminates moving parts in the optical path, reducing wear while enabling simultaneous observation across multiple angles. The motorized varifocal lens (3–6mm, 2x zoom) with full PTRZ control provides flexible focal length adjustment alongside directional positioning, supporting detection ranges from 28.4m (wide) to 71.8m (tele) at 25 PPM.

The 120dB WDR specification and 0.04lux minimum illumination excel in high-contrast backlit and low-light scenarios common in perimeter security. WiseStream II compression and H.265 codec support deliver significant bandwidth savings—critical for high-frame-rate multi-sensor deployments. Four independent microSD slots provide 1TB aggregate edge storage capacity, enabling continuous recording without network infrastructure.

For enterprise integrations, ONVIF compliance and Wisenet API support ensure vendor flexibility. The IP66/IK10/NEMA4X certification suite qualifies it for coastal, industrial, and extreme-weather installations. Ideal for parking structures, industrial yards, transportation hubs, and large outdoor perimeters where single-location, wide-angle, multi-directional coverage is required.
