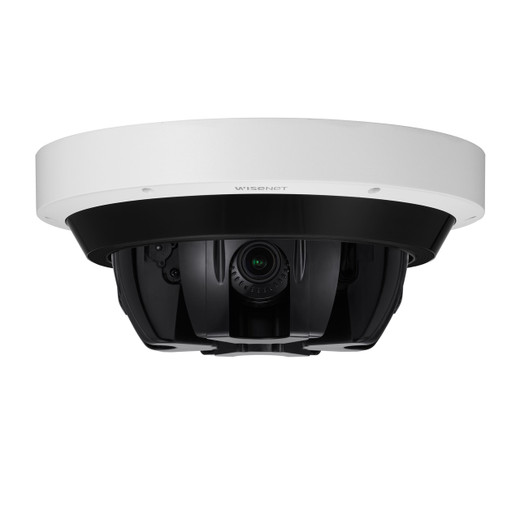

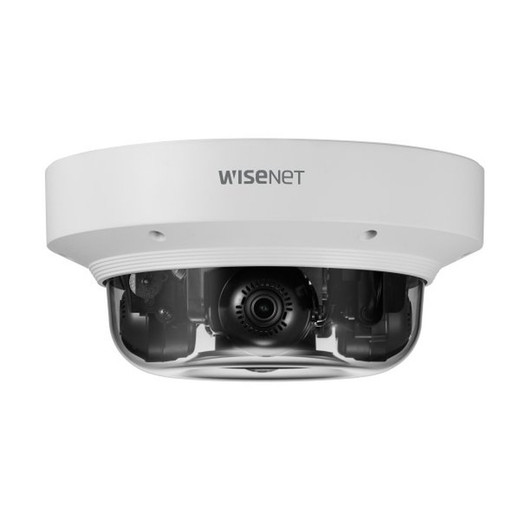

Hanwha PNM-9084QZ1 B2 Multi-Sensor Dome Camera

Hanwha PNM-9084QZ1 B2 Multi-Sensor Dome Camera

The Hanwha PNM-9084QZ1 B2 is a Wisenet P series multi-sensor network dome camera engineered for demanding outdoor surveillance applications. This B-stock unit combines four independent 2MP sensors to deliver simultaneous multi-directional monitoring from a single compact dome. With 60fps capture, motorized pan/tilt/rotate/zoom (PTRZ) control, and advanced imaging intelligence, the PNM-9084QZ1 B2 is ideal for integrators and IT managers requiring flexible, weatherproof coverage without mechanical speed limitations.

Key Features

• Multi-Sensor Architecture: Four 2MP sensors provide comprehensive 360° situational awareness with simultaneous multi-directional monitoring from one dome unit
• Motorized Varifocal Zoom: 3.0–6.0mm motorized varifocal lens with 2x optical zoom and 107° to 56.3° field-of-view range for flexible focal length adjustment after installation
• Full PTRZ Remote Control: Pan, tilt, rotate, and zoom adjustments via network interface allow optimized field-of-view configuration without physical intervention
• Advanced WDR Processing: 120dB wide dynamic range ensures clear imaging in high-contrast scenes combining bright sunlight and deep shadows—critical for exterior deployments
• Intelligent Analytics: Defog detection, hallway view, HLC (Highlights Compensation), and defocus detection enhance image quality and operational efficiency
• Rugged Durability: IP66 weatherproof rating and IK10 impact resistance withstand severe weather, vandalism, and harsh environmental conditions
• Bi-Directional Audio: Integrated two-way audio enables communication and incident response from remote locations
• Extended Temperature Range: Operating temperature from -40°C to +55°C ensures reliable performance in extreme climates

Technical Specifications

• Resolution & Frame Rate: 2MP per sensor at 60fps for smooth, real-time monitoring
• Video Compression: H.265 codec reduces bandwidth and storage requirements without sacrificing image quality
• Power & Connectivity: HPoE (High Power over Ethernet) with included injector; PoE++ compatible for simplified installation
• Storage: Four microSD card slots support local backup and continuous recording
• VMS Integration: ONVIF Profile S/T/G compatible for seamless integration with third-party management platforms

Applications

Ideal for outdoor perimeter monitoring, traffic management, parking facilities, campuses, industrial sites, and mixed-lighting environments where multi-directional coverage and advanced image processing are essential.

Karl Wilson

The PNM-9084QZ1 B2 addresses a critical gap in multi-directional surveillance: delivering simultaneous coverage from four independent sensors without the latency or mechanical wear of traditional pan/tilt units. The 2x motorized zoom (3.0–6.0mm) provides flexibility for both wide-area monitoring and targeted detail capture. H.265 compression is essential for large multi-sensor deployments, reducing bandwidth strain on modest network infrastructure.

The 120dB WDR and defog detection make this unit particularly valuable for coastal, industrial, or foggy environments where image clarity directly impacts identification capability. HPoE with included injector simplifies power delivery in locations where standard PoE is insufficient. Four microSD slots enable distributed edge storage, reducing reliance on centralized NVR infrastructure.

ONVIF Profile S/T/G compatibility ensures vendor lock-in risk is minimized, though Hanwha's proprietary analytics (HLC, defocus detection) are only fully leveraged within Wisenet VMS ecosystems. The IK10 rating and -40°C to +55°C operating range position this camera in genuinely harsh-environment categories—not typical retrofit applications. For integrators managing sprawling outdoor campuses or industrial perimeters, the multi-sensor architecture delivers superior situational awareness at a more efficient cost-per-coverage-point than multiple single-sensor domes.
