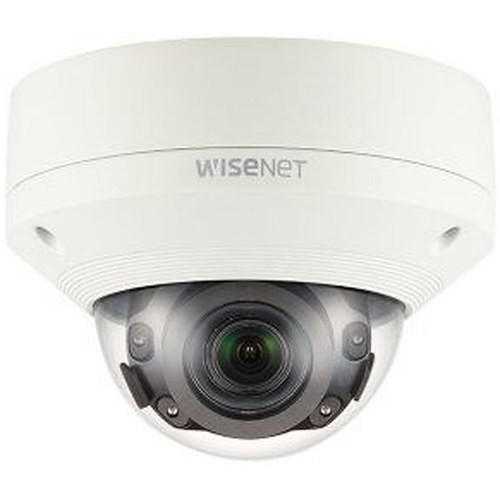

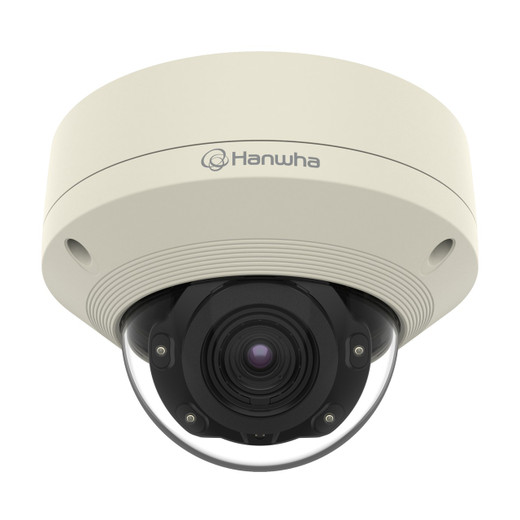

Hanwha XNV-8080R 5MP Vandal-Resistant Dome Camera

Hanwha XNV-8080R 5MP Vandal-Resistant Dome Camera

The Hanwha XNV-8080R is a 5MP motorized varifocal dome camera purpose-built for indoor environments where physical durability and optical flexibility matter—retail loss prevention, office perimeter monitoring, and secure facility entrances. The combination of IK10 vandal resistance (20-joule impact rating), IP67 sealing, and a 2.4x motorized varifocal lens (3.9–9.4mm) gives you single-camera flexibility without requiring a separate wide-angle and detail-capture pair.

Key Features

• 5MP CMOS sensor with 1/1.8" format: Delivers 2592 × 1944 resolution. At 5MP you capture enough detail for facial recognition and license plate reads across 20–30 foot distances, depending on lens position. This is the practical floor for retail and office deployments where 2MP falls short and 8MP adds unnecessary storage overhead.
• 2.4x motorized varifocal lens (3.9–9.4mm): Adjust focal length without touching the camera. Horizontal FOV ranges 92.1° (wide, for lobby overviews) to 38.7° (narrow, for entry-point detail). Minimum object distance of 0.5m means you can focus on documents or faces up close—valuable in access-control scenarios.
• IK10 vandal-resistant dome housing with IP67/IP66 certification: IK10 means the camera survives 20-joule impacts (equivalent to a baseball bat swing) without damage. IP67 sealing keeps dust and water ingress out, critical in retail environments with cleaning spray and humidity spikes. This is not an outdoor camera—indoor high-vandalism or wet-location (back-of-house) use only.
• 50m IR illumination with Day/Night capability: See in complete darkness via built-in 850nm infrared LEDs extending 50 meters. F1.3 maximum aperture (bright lens) combined with 0.07 Lux color sensitivity means you capture usable color footage in very dim ambient light before IR kicks in. At 0 Lux (pitch black), the camera switches to black-and-white IR mode automatically.
• 120dB Wide Dynamic Range (WDR) with backlight compensation: Backlighting—a person standing in front of a bright window—normally blows out the face. The XNV-8080R's 120dB WDR compresses the tonal range so the person's face stays visible even with a bright background. Three backlight modes (BLC, HLC, directional WDR) let you tune the tradeoff between shadow detail and bright-area clipping based on your scene.
• H.265/H.264/MJPEG compression with WiseStreamII smart codec: H.265 cuts file size roughly 40–50% versus H.264 at the same quality, directly reducing storage cost and network bandwidth. WiseStreamII further optimizes compression in real time: high-motion scenes get more data (sharper action), static backgrounds get less (smaller files). At 12.95W max power draw, even 64 cameras on a single PoE+ switch stay within budget.
• Dual microSD card slots (up to 512GB each, 1TB total edge storage): Record on-camera without a centralized NVR. Useful as a failover if your network recorder goes down, or for time-shifted review of incidents that occurred before they were reported. MicroSD cards are cheap and easy to swap for archival.
• Advanced on-camera analytics: motion detection, face detection, virtual line crossing, tampering, loitering, defocus detection: These run on the camera's processor, not your VMS. Motion zones (8-point grid) trigger alarms only in areas you care about, reducing false alerts from moving shadows or overhead fans. Virtual line crossing logs people crossing a threshold (entrance gate, inventory boundary). Loitering detection flags people standing idle in restricted zones. Tamper detection (lens obstruction, focus loss) alerts you if the camera is covered or knocked out of alignment.
• Pan/tilt/rotate mounting adjustment (0°–354°/0°–67°/0°–355°): Full 360° horizontal pan and 67° vertical tilt allow flexible ceiling or wall installation without physically rotating the dome housing. Rotate adjustment compensates for lens angle misalignment, useful when retrofitting into tight ceiling pockets.
• PoE (IEEE 802.3af Class 3) power, ultra-low 12.95W max consumption: Standard PoE delivers power and data on a single Ethernet cable—no separate 12V supply needed. At under 13W, a 95W PoE switch can power 7 cameras simultaneously. This simplifies infrastructure: fewer power supply points, fewer cable runs, lower installation labor.
• Dual audio channels (microphone/line input and line output): Record ambient sound (shouting, alarm beeps) or feed audio from a separate PA system into the video stream. Line-out lets the camera trigger an alarm buzzer or announcement when motion is detected.
• 8-point motion detection zones and 32 polygonal privacy masks: Define motion-sensitive areas (checkout counter, stockroom door) separately. Privacy masks blur or mosaic specific regions (restroom, private offices) before encoding, respecting privacy regulations without post-processing.

Integration & Compatibility

IP cameras on your network must speak a common language. The XNV-8080R supports ONVIF Profile S, G, and T (standard video formats), plus Hanwha's proprietary SUNAPI and Wisenet integration for deeper feature access. This means the camera works with Milestone XProtect, Genetec, or any ONVIF-compliant VMS—you're not locked into Hanwha software. Event-triggered actions (motion, tampering, loitering) push alerts via email, FTP upload, or NAS recording, or activate a relay output (e.g., trigger a door lock or warning light).

Security features include HTTPS/SSL encryption, 802.1X EAP authentication, IP filtering, and comprehensive audit logging of user access. Firmware updates are signed, preventing unauthorized or corrupted code from being installed.

Operating temperature range of −40°C to +55°C (−40°F to +131°F) keeps the camera functional in unheated warehouses or air-conditioned offices. Storage tolerance to ±60°C means you can ship the unit without damage, or store spares in a non-climate-controlled stockroom.

Deployment Context

The XNV-8080R excels in retail loss prevention (theft, organized retail crime), corporate office perimeter (entrance monitoring, badge correlation), and secure facility access (loading dock, server room). The discreet dome form factor fits suspended ceilings and blends into typical office interiors better than a prominent bullet or turret. The varifocal lens adapts to room layouts without camera repositioning—zoom wide for a corridor overview, narrow for a doorway detail shot.

Skip this model if you need outdoor weathering (IP67 is not waterproof enough for direct rain or temperature extremes beyond ±40°C), or if your scene requires extreme low-light performance beyond IR range—specialist low-light cameras with larger sensors handle pure darkness better. For outdoor IP cameras, consult the full outdoor-rated product line.

Frequently Asked Questions

Q: Does the XNV-8080R work with my existing Milestone Xprotect or Genetec VMS?

A: Yes. The XNV-8080R supports ONVIF Profile S, G, and T, which are the standard protocols for integration with any major VMS platform. You can add it to an existing system without proprietary software or licensing.

Q: What's the maximum horizontal field of view at the widest lens position?

A: At 3.9mm (widest setting), the horizontal FOV is 92.1°. This covers a standard office corridor or retail sales floor from a ceiling-mounted position. Narrowest setting at 9.4mm provides 38.7° FOV for detailed close-range monitoring.

Q: Can I record continuously without an external NVR?

A: Yes. Dual microSD card slots support up to 512GB each (1TB total). Insert microSD cards and configure on-camera recording. This provides failover backup if your network recorder or internet connection goes down. Format and lifetime depend on the microSD brand—industrial-grade cards are recommended for 24/7 use.

Q: Is 50m IR illumination visible to people in the room?

A: IR at 850nm is invisible to the human eye. People cannot see the infrared LEDs operating. The camera captures IR light reflected off subjects and converts it to a visible image.

Q: How much network bandwidth does the XNV-8080R consume?

A: Bitrate varies by resolution, compression, and scene motion. H.265 at 5MP with moderate motion typically uses 2–5 Mbps. H.264 uses roughly double. WiseStreamII codec adjusts bitrate in real time—static scenes use much less than high-motion scenes. Your VMS software will show actual bitrate during configuration.

Q: What's the warranty on the XNV-8080R?

A: Refer to the manufacturer warranty documentation or your purchase agreement. Standard commercial warranty is typically 3 years from the date of manufacture, though terms vary by region and distributor.

James Everett

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XNV-8080R (also searched as XNV 8080R) sits in a mature sweet spot: genuine IK10 vandal resistance paired with optical flexibility and real edge analytics. It's not a flagship, but it's engineered for the environments where cameras actually get hit or obstructed. The combination of 2.4x motorized varifocal optics, 50m IR, and on-camera motion/line-crossing/loitering detection eliminates the need for a separate fixed-lens detail camera at most retail or office entry points.

Technical Highlights:

• IK10 vandal rating + dual microSD failover: 20-joule impact resistance is genuine—tested per IEC 62262. Combined with 1TB on-camera edge storage, you retain video even if network recording fails or your NVR goes offline. This two-tier recording approach is rare under USD 1,500 and eliminates single points of failure in smaller deployments.
• H.265 + WiseStreamII at 12.95W max: H.265 cuts storage roughly 45% versus H.264 at equivalent quality. WiseStreamII further adapts codec parameters per-scene: crowded checkout lanes get higher bitrate (motion detail), static hallways get lower bitrate (file size). Result: scalability. You can deploy 20–30 cameras on a single PoE+ switch without power or bandwidth strain.
• 120dB WDR with directional modes (BLC, HLC, DWDR): Backlighting is the most common image-quality complaint in retail. The XNV-8080R's directional WDR lets you protect shadows OR highlights selectively, not globally. This avoids over-processing and keeps the image natural while preserving face visibility.
• F1.3 aperture + 0.07 Lux color sensitivity: Very low light (dimly lit hallways, night-shift retail) stays in color longer before IR kicks in. F1.3 is bright for a varifocal dome—comparable to fixed 2.8mm bullets but with the flexibility to zoom. Useful for retail environments where white-balance and color rendition matter for loss prevention (merchandise color matching, clothing detail).

Deployment Considerations:

• Indoor/controlled-humidity use only: IP67 is not the same as IP69K or full outdoor rating. 50°C upper operating limit means this camera will thermally shut down in direct sunlight or unventilated enclosures. If you need genuine outdoor coverage, step to the full outdoor-rated vandal-resistant camera line instead of forcing this indoors-optimized design outside.
• Varifocal tuning requires network access: Focal length adjustment is motorized and controlled over the network. Unlike a fixed-lens camera, this requires someone with network access to the camera to retune zoom. Initial installation setup is slightly higher labor than a fixed-lens alternative, but long-term flexibility pays for itself in multi-use spaces (shared hallway camera covering both entrance detail and wide corridor).
• MicroSD cards are consumables: Continuous 24/7 recording wears out consumer-grade microSD cards within 12–18 months. Specify industrial-grade cards (Sandisk Industrial, Kingston A400, etc.) and budget for annual replacement to avoid surprise gaps in footage.

Deploy the XNV-8080R in retail loss prevention, office building access control, and secure facility monitoring where a single flexible camera replaces two fixed-lens alternatives. Skip this model if your scene is outdoors, requires temperature extremes beyond ±40°C, or needs ultra-low-light performance beyond IR range. For IT integrators, the PoE power envelope and ONVIF compliance mean zero software lock-in—upgrade your VMS later without touching the camera firmware.
