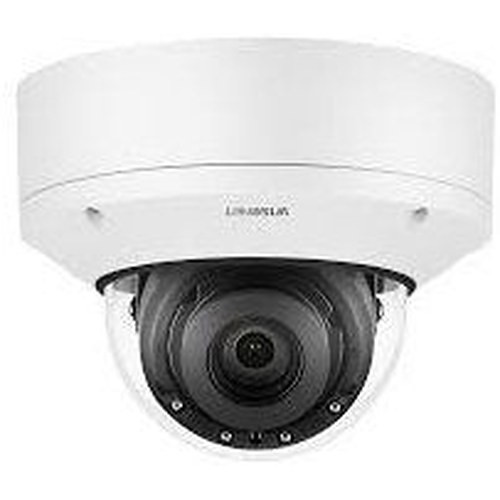

Hanwha XND-8081RV 5MP Vandal-Resistant Dome Camera

Hanwha XND-8081RV 5MP Vandal-Resistant Dome Camera

The Hanwha XND-8081RV is a professional 5MP indoor dome surveillance camera built for environments where physical durability and image clarity matter equally. Rated IK10 for vandal resistance and IP52 for dust and moisture, this camera handles the mechanical stresses of public spaces—retail floors, office lobbies, educational hallways—without sacrificing optical performance. The compact dome form factor fits seamlessly into ceiling layouts while the motorized varifocal lens (3.9–9.4mm, 2.4× zoom) lets you adjust field of view post-installation without opening the housing again.

Key Features

• 5-megapixel sensor (2560×1920 native resolution): Captures enough detail to identify faces and read signage across typical retail or office floor spaces, particularly valuable for loss prevention and incident investigation without requiring 8MP or higher.
• Motorized varifocal lens 3.9–9.4mm with 2.4× zoom: Shifts field of view from 92.1° (wide overview) to 38.7° (detailed monitoring) without redeploying the camera. Saves installation labor and rework when coverage requirements shift.
• 120dB Wide Dynamic Range (WDR): Handles scenes with both bright windows and dark interior corners—common in retail and office settings—delivering usable footage across the entire frame instead of blown-out highlights or crushed shadows.
• 50-meter infrared (IR) illumination with 0.07 Lux color sensitivity: Monitors effectively in low-light conditions (parking structures, after-hours office spaces, dimly lit hallways) while maintaining color detail rather than forcing grayscale.
• H.265 compression with WiseStream II smart codec: Reduces bitrate 40–60% compared to standard H.264 while preserving detail in regions of interest—meaningful on 24/7 deployments across multiple cameras where storage and bandwidth matter.
• IK10 vandal resistance and IP52 environmental rating: Withstands direct physical contact and minor impacts without breaking; IP52 means dust and light spray won't degrade the optics or trigger premature failures.
• PoE powered (IEEE 802.3af Class 3, under 13W): Runs on standard PoE without exhausting your switch's power budget—no separate 12V supplies needed, simplifying wiring and reducing failure points.
• Dual microSD card slots (up to 512GB each, 1TB total): Provides local edge storage with redundancy—if one card fails, the other continues recording. Eliminates single-point-of-failure risk for critical indoor surveillance.
• Intelligent video analytics: On-camera face detection, people counting, heatmap generation, and digital auto-tracking reduce server load and enable real-time alerts without shipping raw video to a centralized system.
• Temperature range -25°C to +60°C (-13°F to 140°F): Handles climate-controlled indoor spaces reliably; also suitable for unheated warehouses or loading docks where temperature swings are common.
• ONVIF Profile S/G/T and Wisenet open platform compatible: Integrates into NVRs and VMS systems without vendor lock-in; works with third-party management platforms and camera stations.
• Dual audio streams (microphone and line-in, G.711/G.726 compression): Enables two-way communication and situational awareness—valuable for retail floor management, reception areas, or emergency response coordination.

Integration & Compatibility

The XND-8081RV operates across Hanwha IP cameras and third-party ONVIF-compliant systems. It supports up to 20 simultaneous unicast and multicast streaming profiles, so multiple control rooms or mobile clients can monitor the same feed without degrading frame rates. Built-in motion detection, tamper detection, and defocus detection trigger alerts directly on the camera without relying on backend processing.

Security enforcement includes HTTPS/SSL encryption, IP filtering, 802.1X network authentication, and detailed access logging—essential for organizations managing multiple facilities and enforcing consistent security posture.

When to Choose a Different Model

If you need outdoor surveillance or full submersion capability, step to an outdoor IP camera variant with IP66/IP67 ratings. For scenes requiring 8MP or higher resolution (large open warehouse floors, distance identification at 100+ feet), consider a higher-megapixel variant in the Hanwha surveillance line. If you need pan-tilt-zoom capability or coverage of a wider area from a single camera, a PTZ model may reduce total installation count.

Deployment Context

The XND-8081RV is purpose-built for controlled indoor environments—retail loss prevention, office security, educational facilities, hospitality venues—where vandal resistance is insurance against tampering rather than a primary design constraint. Ceiling-mounted dome form factor and restrained aesthetics make it suitable for customer-facing spaces without drawing attention.

Frequently Asked Questions

Q: What's the native resolution and bitrate of the XND-8081RV?

A: Native resolution is 2560×1920 (5MP). Bitrate varies with compression codec and scene complexity. H.265 with WiseStream II typically delivers 1.5–4 Mbps for typical indoor scenes; H.264 consumes roughly double that. Actual bitrate depends on frame rate, motion, and analytics region configuration.

Q: Can the XND-8081RV be mounted on a wall instead of ceiling?

A: Yes. The compact dome housing supports both ceiling and wall mounting via standard bracket installation. Wall mounting changes the field of view angle and may require angle adjustment of the lens after physical installation.

Q: Does the XND-8081RV support edge storage and continuous recording?

A: Yes. Dual microSD card slots support up to 512GB per card (1TB total). The camera records continuously to the cards independently of network connectivity, making it suitable for low-bandwidth or intermittent network environments.

Q: What PoE switch requirements apply to the XND-8081RV?

A: The camera draws under 13W via IEEE 802.3af PoE Class 3. Any standard PoE switch with 802.3af support and sufficient per-port power budget will supply the XND-8081RV. No PoE+ switch is required, so you can deploy across budget-friendly managed switches.

Q: Is the XND-8081RV NDAA or TAA compliant?

A: Evidence does not confirm NDAA Section 889 or TAA compliance. If this certification is required, contact the manufacturer directly or consult your procurement compliance officer before specifying this model.

Q: What's the difference between the XND-8081RV and higher-resolution alternatives in the Hanwha line?

A: The XND-8081RV delivers 5MP suitable for typical retail and office indoor coverage. If your deployment requires wider-area overview (200+ feet) or forensic facial recognition detail, a higher-resolution variant may be justified, though bitrate, storage, and processing load will increase accordingly.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-8081RV balances practical indoor surveillance requirements with genuine durability. The IK10 vandal-resistant rating isn't marketing hyperbole—it's a structural certification that the housing will absorb direct impact without opening, cracking, or exposing the optics. For retail environments with public floor traffic and loading docks with occasional bumps, this matters more than raw resolution specs.

Technical Highlights:

• 120dB WDR: Handles simultaneous bright windows and dark interior zones without compromise. In retail settings with high-bay lighting and storefront daylight, this prevents the choice between blown-out exterior views and crushed interior detail.
• H.265 with WiseStream II: Achieves 40–60% bitrate reduction while protecting regions of interest (faces, tills, entry points). On a 16-camera retail site running 24/7, this translates to storage savings of 2–3 TB per week without sacrificing forensic clarity where it counts.
• Dual microSD redundancy (1TB total): Local edge storage eliminates dependency on network or NVR availability. If your central recorder goes offline, the camera continues logging to the cards. Retrieval is physical but reliable.
• Motorized varifocal lens: Post-installation field-of-view adjustment saves rework costs. Many integrators overlook this until a store manager requests coverage of a newly remodeled section—the 3.9–9.4mm range covers most retail recesses without requiring a swap.

Deployment Considerations:

• IP52 is adequate for indoor climate-controlled spaces but not outdoors. If coverage extends to loading docks or covered entries with direct rainfall, step to IP66-rated variants.
• The 0.07 Lux color sensitivity in IR mode is strong for parking structures and after-hours office monitoring, but true zero-light (0 Lux) operation depends entirely on IR illumination—50m range is sufficient for typical ceiling heights but verify actual distance for your mounting height and scene depth.

The XND-8081RV is a solid fit for retail loss prevention, office access points, and educational hallways where durability, color fidelity, and analytics-driven alerting matter more than raw resolution. The edge storage redundancy and compact form factor reduce overall deployment risk.
