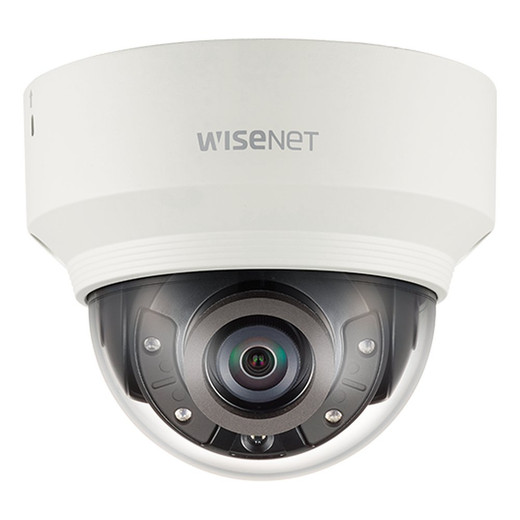

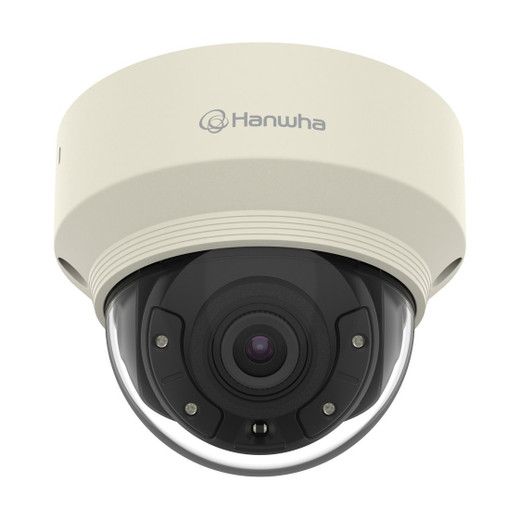

Hanwha XND-8020R 5MP Vandal-Resistant Dome Camera

Hanwha XND-8020R 5MP Vandal-Resistant Dome IP Camera

The Hanwha XND-8020R is a professional-grade 5MP indoor dome camera engineered for high-security environments where durability and image clarity are paramount. Built with an IK08 vandal-resistant rating and IP66 weatherproof construction, this camera withstands physical tampering and harsh indoor conditions while delivering exceptional surveillance performance across retail, corporate, educational, and institutional settings.

Key Features

• 5MP Resolution – 1/1.8" 6MP CMOS sensor captures fine detail for forensic analysis and incident investigation
• Day/Night Capability – IR illumination with 30m viewable range and automatic ICR switching for 24/7 monitoring
• 120dB Wide Dynamic Range (WDR) – Balances exposure in mixed lighting, eliminating wash-out and shadow loss
• Vandal-Resistant Design – IK08-rated dome construction protects against impact and tampering in high-traffic areas
• Advanced Analytics – Motion detection, loitering, directional detection, face detection, defocus detection, and audio classification
• Intelligent Video Encoding – H.265/H.264/MJPEG support with WiseStream II smart codec reduces bandwidth and storage costs
• Pan/Tilt/Rotate Capability – Full 354° pan, 67° tilt, and 355° rotation for flexible coverage
• Multiple Streaming Profiles – Up to 10 simultaneous streams supporting unicast and multicast delivery
• Dual Storage Options – MicroSD/SDHC/SDXC slots (512GB capacity) and NAS support for flexible edge recording
• PoE Powered – IEEE 802.3af Class 3 (9W max) simplifies deployment and reduces infrastructure costs

Technical Highlights

The XND-8020R operates at up to 30fps in H.265/H.264 or MJPEG, with adjustable electronic shutter speeds (2–1/12,000 sec) and gain control for precise imaging in variable light. Its 3.7mm fixed focal lens provides a 97.5° horizontal field of view with 0.16 Lux color sensitivity and IR-assisted low-light performance. Built-in stabilization via gyro sensor, optical defog filtering, and lens distortion correction (LDC) ensure stable, clean video even in challenging environments. Privacy masking supports 32 polygonal zones with multiple color options and mosaic effects. The camera integrates business intelligence tools including people counting, queue management, and heatmaps for operational insights.

Enterprise Security & Integration

ONVIF Profile S/G compliance ensures seamless NVR/VMS integration with leading platforms. Security features include HTTPS/SSL encryption, IP filtering, 802.1X authentication (EAP-TLS/LEAP), and comprehensive user access logging. Alarm triggers respond to analytics events, network disconnects, and external inputs via dedicated I/O ports. Event-based actions include FTP/email uploads, email notifications, and NAS/SD card recording.

Applications

• Retail stores and shopping centers – monitor POS areas, entrances, and inventory zones
• Corporate offices – secure lobbies, conference rooms, and restricted access areas
• Educational institutions – monitor classrooms, hallways, and common areas
• Healthcare facilities – patient areas and restricted zones requiring discreet surveillance
• Transportation hubs – indoor parking, ticketing areas, and concourses

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

The XND-8020R balances professional surveillance requirements with practical indoor deployment constraints. Its IK08 rating and compact 110mm diameter dome design make it ideal for environments where vandalism risk is moderate to high—common in educational and retail settings. The 120dB WDR and aggressive low-light performance (0.16 Lux color, 0 Lux IR) eliminate blind spots caused by window glare or mixed indoor/outdoor lighting, a frequent challenge in lobbies and storefronts.

WiseStream II intelligent codec management is particularly valuable for cost-sensitive deployments; it automatically reduces bitrate in static areas while maintaining clarity where motion occurs, directly lowering storage and bandwidth expenses without manual tuning. The dual microSD slots enable 24/7 edge recording without NAS dependency, critical for sites with limited network infrastructure.

Rotation capability (pan/tilt/rotate) is uncommon in fixed dome designs and provides flexible mounting options—useful when ceiling geometry or cable routing limitations constrain placement. The 30m IR range covers most indoor spaces, though 0.4m minimum focus distance may limit very-close detail capture (e.g., document readers).

Drawback: The fixed 3.7mm focal length offers no zoom flexibility, requiring multiple cameras for variable coverage distances. For applications needing both wide and detailed views, pairing this camera with a varifocal model may be necessary. The PoE power budget (9W max) is tight; verify PoE injector capacity if using long cable runs or high-power accessories.

Product Documentation
