CipherLab A2560SCBS0001 vs Socket Mobile CX4065-3128: Specification Comparison
Both the CipherLab A2560SCBS0001 and the Socket Mobile CX4065-3128 (SocketScan S720) are cordless, handheld, Bluetooth 1D barcode scanners targeting mobile retail, warehouse, and field-data-capture applications. The CipherLab unit is a dedicated 1D linear imager with an IP65 environmental rating and a high scan rate. The Socket Mobile unit pairs a 2000 mAh battery and a bundled charging stand with a broader symbology set that extends into select 2D codes. This comparison evaluates the three dimensions most relevant to buyers choosing between them: scan capability and symbology coverage, environmental and physical ruggedness, and battery and deployment logistics.
In This Guide
- Which scanner covers the symbologies and scan speeds your operation actually needs?
- Which unit is rated to survive the physical environment of your deployment site?
- Which scanner better supports continuous, untethered operation and day-to-day deployment workflow?
- Which should you choose: the A2560SCBS0001 or the CX4065-3128?
- Side-by-Side Specs
- FAQ
Which scanner covers the symbologies and scan speeds your operation actually needs?

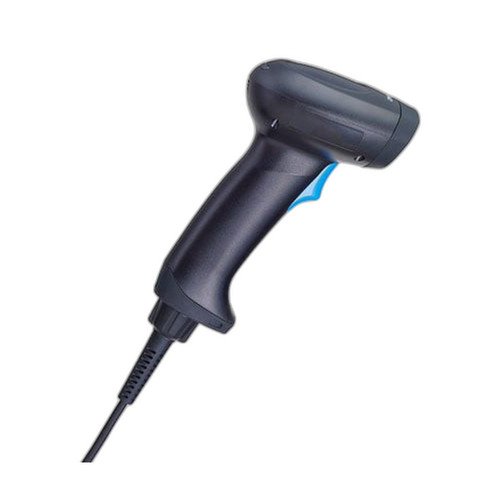

The CipherLab A2560SCBS0001 uses a 1D linear imager rated at 578 scans per second, with a specified scan range of 3–10 cm at Code 39 3 mil, 2–14 cm at 5 mil, and 1.5–60 cm at 20 mil. It supports over 15 named 1D symbologies including Codabar, Code 11, Code 39, Code 93, Code 128, GS1 DataBar (RSS), Industrial 2 of 5, Interleave 2 of 5, ISBT-128, Italian and French Pharmacodes, Matrix 2 of 5, MSI, Plessey, Telepen, and UPC/EAN/GS1-128. Minimum print contrast is specified at 15%.
The Socket Mobile CX4065-3128 lists Code 128 and Code 39 as its 1D symbologies, and adds QR Code, Data Matrix, and PDF417 as 2D-capable reads. No scan rate in scans-per-second is provided in the supplied specifications, nor is a scan range distance provided. For operations requiring only Code 128 and Code 39 in 1D, the Socket Mobile covers the basics while also handling common 2D codes. For operations dependent on ISBT-128, pharmacodes, GS1 DataBar, or the broader 1D symbology set, only the CipherLab unit lists those as supported.
Which unit is rated to survive the physical environment of your deployment site?
The CipherLab A2560SCBS0001 carries an IP65 rating, meaning it is fully dust-tight and protected against low-pressure water jets from any direction. This makes it suitable for warehouse floors, light manufacturing, food retail, and other environments where dust exposure or incidental liquid contact is a routine risk. No drop-rating specification is provided in the supplied data.
The Socket Mobile CX4065-3128 has no IP or ingress-protection rating listed in the provided specifications. Its operating temperature is specified as 0° to 45° C (32° to 113° F). Without a published IP rating, buyers cannot confirm it meets any dust or moisture resistance threshold. For deployments in controlled indoor retail or office environments, the absence of an IP rating may be acceptable. For any site with dust, moisture, or wash-down exposure, the CipherLab A2560SCBS0001 is the only unit with a documented ingress-protection rating.
Which scanner better supports continuous, untethered operation and day-to-day deployment workflow?
The Socket Mobile CX4065-3128 specifies a 2000 mAh battery and is bundled with a charging stand in the package contents. The supplied specifications do not include a runtime figure in hours, but the 2000 mAh capacity and included stand provide a defined charging solution out of the box. The stand mount type is listed as desktop.
The CipherLab A2560SCBS0001 does not list a battery capacity or runtime figure in the provided specifications, so a direct mAh-to-mAh comparison cannot be made. Its warranty period is two years versus one year for the Socket Mobile unit. Color options (Black, Register White) and the auto-sense and continuous scan modes may simplify hands-free staging at a register. Neither unit's Bluetooth version or wireless range is specified in the supplied data, limiting further wireless-logistics comparison.
Which should you choose: the A2560SCBS0001 or the CX4065-3128?
Our take: The A2560SCBS0001 is the stronger choice when environmental ruggedness and broad 1D symbology coverage are primary requirements. It holds an IP65 rating — a spec the CX4065-3128 entirely lacks — making it the only defensible option for warehouse, light industrial, or food-retail environments with dust or moisture exposure. Its 578 scans-per-second rate and 15+ named 1D symbologies, including ISBT-128, pharmacodes, and GS1 DataBar, far exceed the two 1D symbologies listed for the Socket Mobile unit. Its two-year warranty also doubles the CX4065-3128's one-year term. Conversely, the CX4065-3128 is the more practical choice for clean indoor mobile-retail or field-service deployments where QR Code, Data Matrix, or PDF417 reads are needed alongside 1D, and where the bundled charging stand and documented 2000 mAh battery support a defined daily charge cycle. Battery capacity and Bluetooth specifications are absent for the CipherLab unit, so buyers with strict runtime requirements should verify those specs directly with CipherLab before committing.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | CipherLab A2560SCBS0001 | Socket Mobile CX4065-3128 |
|---|---|---|
| Product Type | Barcode Scanner | Scanner |
| Form Factor | Handheld | Handheld |
| Connectivity | Bluetooth | Bluetooth |
| Scan Engine | 1D Linear Imager | 1D (with 2D symbologies listed) |
| Scan Rate | 578 scans/second | — |
| Scan Range (Code 39 20 mil) | 1.5–60 cm | — |
| Scan Range (Code 39 3 mil) | 3–10 cm | — |
| IP Rating | IP65 | — |
| Operating Temperature | — | 0–45°C (32–113°F) |
| Battery Capacity | — | 2000 mAh |
| 1D Symbologies | 15+ (Codabar, Code 11, Code 39, Code 93, Code 128, GS1 DataBar, I 2of5, Ind 2of5, ISBT-128, Pharmacodes, Matrix 2of5, MSI, Plessey, Telepen, UPC/EAN) | Code 128, Code 39 |
| 2D Symbologies | — | QR Code, Data Matrix, PDF417 |
| Min Print Contrast | 15% | — |
| Scan Modes | Auto-sense and continuous | — |
| Included Accessories | — | Scanner + charging stand |
| Warranty | 2 years | 1 year |
Frequently Asked Questions
Which should you choose: the A2560SCBS0001 or the CX4065-3128?
The A2560SCBS0001 is the stronger choice when environmental ruggedness and broad 1D symbology coverage are primary requirements. It holds an IP65 rating — a spec the CX4065-3128 entirely lacks — making it the only defensible option for warehouse, light industrial, or food-retail environments with dust or moisture exposure. Its 578 scans-per-second rate and 15+ named 1D symbologies, including ISBT-128, pharmacodes, and GS1 DataBar, far exceed the two 1D symbologies listed for the Socket Mobile unit. Its two-year warranty also doubles the CX4065-3128's one-year term. Conversely, the CX4065-3128 is the more practical choice for clean indoor mobile-retail or field-service deployments where QR Code, Data Matrix, or PDF417 reads are needed alongside 1D, and where the bundled charging stand and documented 2000 mAh battery support a defined daily charge cycle. Battery capacity and Bluetooth specifications are absent for the CipherLab unit, so buyers with strict runtime requirements should verify those specs directly with CipherLab before committing.
Is the A2560SCBS0001 or CX4065-3128 better for a warehouse or food-retail environment?
The CipherLab A2560SCBS0001 is the only unit of the two with a published IP65 ingress-protection rating, confirming resistance to dust and low-pressure water jets. The Socket Mobile CX4065-3128 has no IP rating listed in its specifications, so it cannot be confirmed as suitable for environments with dust, moisture, or washdown exposure. For warehouse or food-retail use, the A2560SCBS0001 is the documented choice.
Which scanner should I choose if my workflow includes QR codes or 2D barcodes?
The Socket Mobile CX4065-3128 lists QR Code, Data Matrix, and PDF417 among its supported symbologies, in addition to Code 128 and Code 39. The CipherLab A2560SCBS0001 is a 1D linear imager and lists only 1D symbologies in its specifications; 2D codes such as QR Code or Data Matrix are not listed as supported. If your operation requires 2D reads, only the CX4065-3128 covers that in the provided specs.
Does either scanner include a charging stand, and which has the longer warranty?
The Socket Mobile CX4065-3128 package contents explicitly include a charging stand alongside the scanner. The CipherLab A2560SCBS0001 package contents are not detailed in the provided specifications, so inclusion of a stand cannot be confirmed. On warranty, the CipherLab A2560SCBS0001 carries a two-year warranty versus a one-year warranty for the Socket Mobile CX4065-3128.
