Axis 02364-001 vs Axis M3905-R: Specification Comparison
Both the Axis 02364-001 (F4105-LRE sensor head) and the Axis M3905-R (03119-001) are 2MP fixed dome cameras, but they serve very different deployment contexts. The 02364-001 is a modular sensor head for Axis F91-series multi-head systems, while the M3905-R is a standalone ruggedized dome built for mobile and vehicle-mounted surveillance. A buyer comparing these would be choosing between a modular, license-consolidating outdoor dome and a self-contained, cybersecurity-hardened ruggedized unit.
In This Guide
How do the imaging specs compare?
Both cameras deliver 2MP resolution, but with different output: the 02364-001 captures 1920×1200 (16:10 aspect) at up to 50/60 fps and lists a frame rate spec of 180 fps under certain conditions, while the M3905-R outputs 1920×1080 (16:9) with no maximum frame rate specified in the provided data. The 02364-001 uses a 2.8 mm, F2.0 lens with a 110° horizontal and 61° vertical field of view and a minimum illumination of 0.3 lux. The M3905-R uses a 3.6 mm fixed lens with a narrower field of view—no horizontal/vertical degree figure is provided in the spec data—and its IR range is specified at 0.3 m, indicating it is designed for very close-range night imaging (vehicle interior or cabin use). The 02364-001's IR range is listed as dependent on the paired F91 main unit, so effective night reach is not independently specified.
Both cameras implement WDR, but with different labeling: the 02364-001 lists 'Forensic Capture' while the M3905-R lists 'Forensic WDR'—these are Axis's own WDR technology tiers, but no numeric dB values are provided for either in the supplied specs, so a quantitative WDR comparison cannot be made. Both use 940 nm invisible IR. Compression support overlaps on H.265 and H.264; MJPEG is confirmed only for the 02364-001. Neither sensor type beyond 'CMOS' (02364-001) is specified for the M3905-R.
What about installation and environment?
The 02364-001 carries IP66 and IK10 ratings with an operating range of -30 °C to 55 °C, making it suitable for harsh outdoor fixed installations. Its housing color is listed as stainless steel and white. It is explicitly rated Outdoor. Power is delivered via PoE (standard; class not specified). Mounting uses a bracket with junction box holes (single-gang), and it requires pairing with an Axis F91 main unit—it is not a standalone device. Up to four sensor heads can share a single VMS license and network port via the F91 main unit, which is a significant infrastructure cost advantage in multi-zone installations.

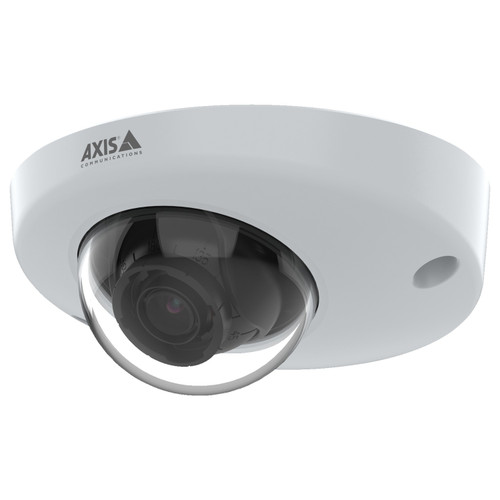

The M3905-R carries IP66/IP67 ratings but no IK impact rating is provided in the spec data. Its operating range is -40 °C to 60 °C, a wider thermal envelope than the 02364-001 on both ends. It is powered by PoE+ (Class 1) and connects via RJ45. Despite being rated IP66/IP67 and described as a ruggedized dome for mobile/vehicle use, its Environment Rating field lists 'Indoor'—this is likely a data entry inconsistency given the IP67 and vehicle-deployment context described elsewhere. Wall and rack mount types are listed. The M3905-R is a fully standalone unit requiring its own network port and VMS license per camera.
Which fits your VMS and analytics better?
The M3905-R has explicit ONVIF Profile S support listed and confirmed compatibility with Axis Camera Station and Milestone XProtect. It also includes cybersecurity features—HTTPS encryption, signed firmware, and secure boot—none of which are specified in the 02364-001's provided data. The M3905-R supports a microSD card slot (up to 512 GB) for local edge storage; no on-board storage is listed for the 02364-001. Day/Night functionality is explicitly confirmed for the M3905-R.
The 02364-001 integrates into the Axis F91 modular ecosystem, allowing four sensor heads per VMS license and per network port. ONVIF compliance, edge analytics, audio, and on-board storage are not specified in the provided data for the 02364-001. Buyers deploying the 02364-001 into non-Axis VMS environments should verify ONVIF compatibility directly with Axis documentation, as it is not confirmed in the supplied spec set.
Which should you choose: the 02364-001 or the M3905-R?
Our take: The M3905-R is the stronger choice when deploying a self-contained, cybersecurity-hardened dome in mobile, vehicle, or thermally extreme environments; the 02364-001 is the stronger choice when consolidating multi-zone outdoor coverage under a single VMS license via the Axis F91 modular platform. Key spec deltas: the 02364-001 offers a wider 110° horizontal field of view versus no confirmed FOV figure for the M3905-R; the M3905-R operates across a broader thermal range (-40 °C to 60 °C vs. -30 °C to 55 °C); and the M3905-R adds up to 512 GB microSD edge storage and explicit cybersecurity features (signed firmware, secure boot, HTTPS) that are absent from the 02364-001's spec data. The 02364-001 requires an F91 main unit and is not a standalone camera. Choose the M3905-R for standalone, cyber-hardened, or mobile deployments; choose the 02364-001 for Axis F91 modular multi-head fixed installations where license and port consolidation is the priority.
Side-by-Side Comparison
Spec-for-spec, from manufacturer data.
| Specification | Axis 02364-001 | Axis M3905-R |
|---|---|---|
| Resolution | 1920×1200 (2MP) | 1920×1080 (2MP) |
| Sensor Type | CMOS | — |
| Focal Length | 2.8 mm | 3.6 mm fixed |
| Aperture | F2.0 | — |
| Horizontal Field of View | 110° | — |
| Vertical Field of View | 61° | — |
| Min Illumination | 0.3 lux | — |
| IR Wavelength | 940 nm (invisible) | 940 nm (invisible) |
| IR Range | Dependent on F91 main unit | 0.3 m |
| Wide Dynamic Range | Forensic Capture | Forensic WDR |
| Max Frame Rate | 50/60 fps (180 fps listed) | — |
| Video Compression | H.265; H.264; MJPEG | H.265; H.264 |
| IP Rating | IP66 | IP66 / IP67 |
| IK / Impact Rating | IK10 | — |
| Operating Temperature | -30 °C to 55 °C | -40 °C to 60 °C |
| Power Input | PoE (class not specified) | PoE+ (Class 1) |
| Edge Storage | — | microSD up to 512 GB |
| ONVIF | — | Profile S |
| Cybersecurity | — | HTTPS; Signed firmware; Secure boot |
| Standalone Operation | No (requires F91 main unit) | Yes |
| Environment Rating | Outdoor | Indoor (listed; IP67 suggests otherwise) |
| Warranty | 5-year | 5-year |
Frequently Asked Questions
Which should you choose: the 02364-001 or the M3905-R?
The M3905-R is the stronger choice when deploying a self-contained, cybersecurity-hardened dome in mobile, vehicle, or thermally extreme environments; the 02364-001 is the stronger choice when consolidating multi-zone outdoor coverage under a single VMS license via the Axis F91 modular platform. Key spec deltas: the 02364-001 offers a wider 110° horizontal field of view versus no confirmed FOV figure for the M3905-R; the M3905-R operates across a broader thermal range (-40 °C to 60 °C vs. -30 °C to 55 °C); and the M3905-R adds up to 512 GB microSD edge storage and explicit cybersecurity features (signed firmware, secure boot, HTTPS) that are absent from the 02364-001's spec data. The 02364-001 requires an F91 main unit and is not a standalone camera. Choose the M3905-R for standalone, cyber-hardened, or mobile deployments; choose the 02364-001 for Axis F91 modular multi-head fixed installations where license and port consolidation is the priority.
Is the 02364-001 or the M3905-R better for low-light performance?
The 02364-001 specifies a minimum illumination of 0.3 lux and uses 940 nm invisible IR, but its effective IR range depends on the paired F91 main unit rather than the sensor head itself. The M3905-R also uses 940 nm invisible IR but lists an IR range of only 0.3 m, indicating it is designed for very close-range night imaging such as vehicle interiors. Neither product provides a lux figure for the M3905-R, so a direct low-light sensitivity comparison cannot be made from the available specs alone.
Can I use either camera without an Axis VMS?
The M3905-R confirms ONVIF Profile S compatibility and is listed as working with Milestone XProtect, making it suitable for third-party VMS environments. The 02364-001's ONVIF compliance is not confirmed in the provided spec data, and it requires an Axis F91 main unit to operate—it is a modular sensor head, not a standalone camera. Buyers intending to use third-party VMS platforms should verify 02364-001 ONVIF support directly with Axis before specifying it.
Which camera is better suited for vehicle or mobile deployment?
The M3905-R is specifically described as a ruggedized dome for mobile and vehicle surveillance, with IP66/IP67 rating, a -40 °C to 60 °C operating range, a 0.3 m IR range suited for close-range interior imaging, and a Day/Night mode. The 02364-001 is designed for fixed outdoor installations as part of the Axis F91 modular system and requires a wired connection to an F91 main unit, making it unsuitable for mobile or vehicle deployments.
