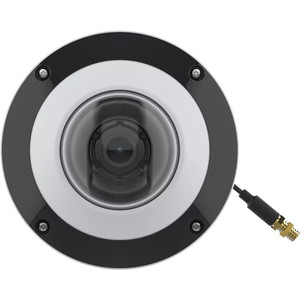

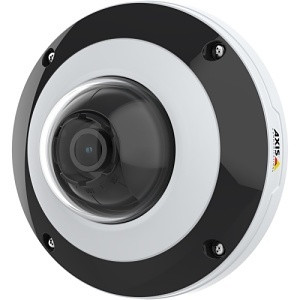

Axis 02364-001 2MP Full HD IR Outdoor Mini Dome IP Camera
The Axis 02364-001 is a modular IP camera designed for outdoor surveillance where a compact form factor and discreet appearance matter. Unlike traditional standalone domes, the 02364-001 follows Axis's divided network camera architecture — it pairs with an Axis F91 main unit to handle encoding and network connectivity, which can reduce both hardware footprint and installation complexity on the head end.
Overview
This mini dome delivers 1080p (Full HD) resolution at up to 30 fps in the primary stream, or 720p at 60 fps for faster motion capture. The modular design means a single video stream from the 02364-001 feeds into the main unit, which can aggregate four camera heads before consuming one VMS license and one network switch port — a genuine cost lever if you're deploying multiple heads on the same main unit. The 2.8mm f/1.6 fixed lens provides roughly 110° horizontal field of view, suitable for general perimeter and entrance monitoring.
The IP66 rating confirms dust and rain resistance — direct spray and heavy washdown are no problem, but full submersion is not supported. The camera's stainless-steel construction and sealed connectors are built to handle outdoor temperature swings; consult the datasheet for exact operating range before deploying in extreme cold or heat.
Key Features
- IR Night Vision: Built-in infrared illumination enables monitoring in complete darkness without supplemental lighting. IR range and wavelength depend on final main unit pairing; verify with the specific F91 variant's documentation for exact low-light performance metrics.
- Forensic WDR (Wide Dynamic Range): Balances exposure across mixed lighting scenes — bright windows and dark corners in the same frame stay visible. Useful for entrance vestibules and mixed indoor-outdoor transitions, though if you need extreme contrast handling (e.g., direct sun on glass and deep shadows), confirm WDR performance in your actual lighting during a site trial.
- H.265 and H.264 Support: H.265 compression cuts bitrate roughly 40–50% versus H.264 at equivalent quality, meaning lower storage demand and network bandwidth. On systems with dozens of cameras running 24/7, this translates to tangible savings in NVR drives and switch capacity.
- Multiple Video Streams: Up to four simultaneous streams allow one client to pull high-resolution monitoring while a second receives lower-bandwidth live view or archive streams, without forcing the main unit to transcode.
- Modular Design / F91 Integration: The 02364-001 is a camera head only; it requires an Axis F91 main unit (sold separately) for power delivery, encoding, and network connectivity. This architecture is valuable if you need to add cameras to an existing F91 without purchasing new encoding hardware, but it also means you cannot deploy the 02364-001 standalone — always verify main unit availability and compatibility before ordering.
- Compact Mini Dome Form Factor: The small footprint blends into retail, office, and institutional environments where visible security hardware may be aesthetically problematic. Mounting is via standard M12 threads, compatible with common dome pedestals and recessed ceiling mounts.
Integration & Compatibility
The 02364-001 is engineered exclusively for outdoor IP cameras paired with Axis F91 main units (2nd generation and later). It does not function as a standalone IP camera. If your existing infrastructure uses a different network video recorder platform (Milestone, Genetec, etc.), the F91 main unit must still support ONVIF or your VMS's proprietary integration method. Confirm F91 compatibility with your systems integrator before committing to a multi-camera F4105-LRE deployment.
Frequently Asked Questions
Q: Can I use the Axis 02364-001 without an F91 main unit?
A: No. The 02364-001 is a camera head only and requires an Axis F91 main unit for power, encoding, and network connectivity. It cannot operate standalone.
Q: What is the IR range of the 02364-001?
A: IR illumination range depends on the specific F91 main unit paired with the 02364-001. Consult your main unit's datasheet for exact range and wavelength specifications.
Q: What is the field of view with the 2.8mm lens?
A: The 2.8mm f/1.6 fixed lens delivers approximately 110° horizontal field of view, suitable for general perimeter and entrance monitoring at typical mounting heights.
Q: Is the 02364-001 suitable for high-pressure washdown environments?
A: The IP66 rating confirms dust and rain resistance, but not submersion or high-pressure jets. For hospital or food-processing washdown scenarios, the IP6K9K rating mentioned in some Axis F-series documentation refers to the main unit, not the camera head. Verify exact housing durability requirements with your integrator.
Q: How many camera heads can connect to a single F91 main unit?
A: Up to four 02364-001 camera heads can connect to one F91 main unit, consuming one VMS license and one network switch port total.
James EverettPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Axis 02364-001 (often searched as 02364 001) is a purpose-built camera head for Axis's modular F91 platform — not a traditional standalone dome. If you're evaluating this for a multi-camera rollout, the architecture genuinely reduces encoding hardware and license sprawl: four 02364-001 heads tap one main unit, one VMS license, and one switch port. That's a real economic advantage over four discrete cameras in a dense deployment. But the flip side: you cannot pilot with a single 02364-001 on its own. You must commit to the F91 ecosystem from the start.
Technical Highlights:
- 1080p @ 30 fps Primary Stream: The 2MP (1920 × 1080) sensor captures 30 fps in the main encoding, dropping to 720p @ 60 fps for secondary streams. This is adequate for perimeter and entrance monitoring where you don't need forensic-level motion capture on every frame; fast-moving subjects will show fewer intermediate frames than a dedicated 60 fps camera would.
- H.265 Compression: Encoding at H.265 instead of H.264 cuts storage roughly 40–50% depending on scene motion and lighting. On a four-head F91 system running 24/7, that difference compounds quickly — a small but measurable reduction in NVR capacity and network load.
- 2.8mm f/1.6 Fixed Lens: The aperture is fast enough for decent low-light performance when paired with IR fill, but the fixed focal length means no optical zoom. Plan your mounting height and angle carefully; a miscalculated install requires remounting or living with suboptimal coverage.
- IP66 Sealed Housing: Dust and rain ingress are not a concern, and the stainless-steel build resists corrosion in coastal or high-humidity environments. However, IP66 does not handle submersion or sustained pressure spray — do not specify this for active washdown areas; the main unit's IP6K9K rating does not extend to the camera head.
Deployment Considerations:
- F91 Ecosystem Dependency: You must source and configure an Axis F91 main unit (and verify 2nd generation compatibility) before the 02364-001 becomes functional. If your integrator's standard VMS does not natively support F91 connectivity, ONVIF may bridge the gap, but test this in your lab first.
- IR Range Unknown Until Main Unit Selection: The 02364-001 itself does not specify IR illumination range; that depends entirely on which F91 variant powers it. This is a gotcha: you may assume 30m IR coverage, only to discover the paired main unit delivers 20m. Nail down the complete F91 model number and cross-reference its IR spec before finalizing the design.
- Fixed Lens = No Zoom or Pan: The 2.8mm lens is fixed, so if a site survey reveals you need wider or tighter coverage, you cannot adjust optically. Repositioning may be the only remedy, which can delay installation and inflate labor costs.
Deploy the 02364-001 in compact retail or office environments where you need outdoor coverage on the cheap side of the budget — the modular main-unit sharing does the math. Skip it if you need standalone 1080p IR domes or if your VMS platform is locked into a different camera vendor's ecosystem.
