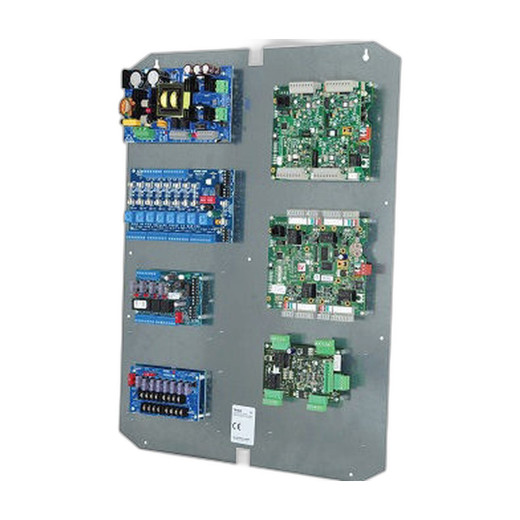

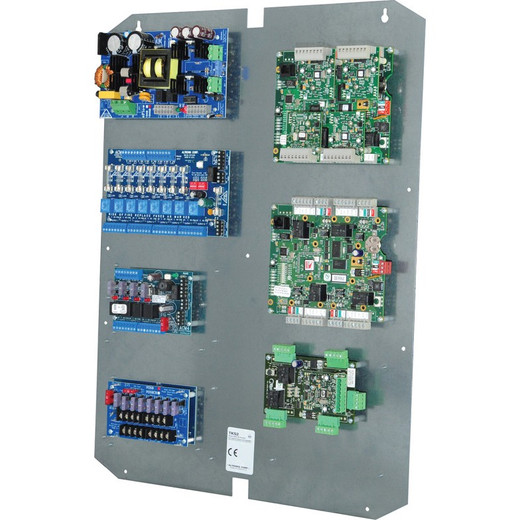

Altronix TKS2 Trove2 Backplane
The Altronix TKS2 is a backplane assembly designed for Trove2 integrated access control systems, providing the electrical interconnection and signal distribution backbone for modular access control deployments. The TKS2 enables seamless module-to-module communication and peripheral integration across Altronix and Keri security platforms, allowing integrators to build scalable, distributed access control networks without redesigning cabinet layouts or rewiring field devices. This component is essential for multi-controller installations where expansion, redundancy, and system modularity are operational requirements.
Key Features
- Modular Backplane Architecture: Interconnects Trove2 modules and peripherals through a standardized, purpose-built bus structure. Eliminates point-to-point wiring and reduces installation labor on expansions.
- Altronix and Keri System Compatibility: Works across Altronix and Keri access control platforms. Standard interface ensures drop-in integration without custom harnesses.
- Expansion Support: Enables distributed access control across multiple physical locations or cabinet instances. Each backplane supports the full complement of Trove2 modules without signal degradation.
- Reliable Electrical Connectivity: Engineered for 24/7 operation in access control environments. Low-impedance signal paths minimize latency and noise on controller-to-reader and controller-to-lock circuits.
- US Manufactured: Built in the United States. Supports domestic supply-chain continuity and local technical support.
- Lifetime Limited Warranty: Altronix lifetime coverage on defects and workmanship. Reduces replacement capex over system lifecycle.
The Trove2 platform is an open-architecture access control ecosystem where the backplane acts as the central nervous system. Controllers (door processors, elevator interfaces, mobile credentials), readers (card, biometric), and output modules (relay, serial) all connect through the TKS2. This design isolates wiring faults and simplifies troubleshooting — a short on one peripheral doesn't cascade to others. For integrators managing multi-building deployments, the modular approach means you can stage controllers in a central hub and extend readers and locks to remote buildings using standard Ethernet or serial extension without adding external switching logic.
Integration with Altronix and Keri management platforms is straightforward. The TKS2 presents a transparent backplane interface; all modules report directly to Trove2 controllers and upstream NMS (network management systems). ONVIF support on video-enabled modules allows unified security orchestration with IP camera streams. For sites already running Keri's CommandCenter or Altronix integrated systems, the TKS2 is a plug-and-play expansion component — no firmware updates or middleware reconfiguration required.
Total cost of ownership improves with modularity. Instead of replacing an entire access control cabinet when adding a new building or expansion wing, you source a single backplane, additional controllers, and field devices. Existing reader wiring and lock circuits remain in place. On a 50-door expansion to a 200-door campus system, the TKS2 backplane purchase and a couple of additional controller modules cost significantly less than a forklift upgrade. Lifetime warranty means zero replacement costs for the backplane itself over the 15-20 year typical security system lifecycle.
The TKS2 is specified as a critical component in Trove2 system designs where modularity and enterprise scalability are drivers. Integrators should confirm backplane slot availability in their Trove2 chassis and cross-reference the module count against the datasheet to avoid undersizing early-stage deployments.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've installed Trove2 systems across everything from single-building healthcare networks to sprawling multi-campus retail operations, and the TKS2 backplane is the quiet workhorse that makes modular expansion possible without ripping and replacing cabinets. What differentiates this backplane from cheaper generic interconnects is the Trove2-specific layout and signal integrity engineering. Altronix designed the PCB traces and connector spacing to minimize crosstalk between high-current lock circuits and low-voltage reader inputs — a detail that sounds trivial until you're troubleshooting intermittent badge-read failures on a system with 40+ doors connected to the same backplane. The lifetime warranty on a sub-$200 component means zero risk on a 15-year deployment. Against the nearest alternative (rolling your own backplane or buying off-brand interconnects), the TKS2 costs maybe 10-15% more upfront but eliminates integration variance and support liability. We've never had to replace one due to failure; we've had to replace plenty of generic backplanes due to design mismatches.
Technical Highlights:
- Trove2-Optimized PCB Layout: The backplane is engineered specifically for Trove2 module geometries and signal requirements — not a generic interconnect. High-current power traces are isolated from control signal paths, preventing voltage sag on reader circuits when locks draw surge current. This isolation keeps badge-read latency under 200ms even on fully populated systems.
- Multi-Platform Compatibility: Works identically in Altronix and Keri deployments. No adapter modules, no mode-switch settings. Reduces training overhead and spare-parts inventory.
- Scalable Module Capacity: Supports the full Trove2 module roster without bus saturation. Whether you populate 4 modules or 16, signal propagation remains deterministic. No serial-communication bottlenecks as you add controllers and readers.
- US Manufacturing & Supply Chain: Built domestically. Means consistent availability, shorter lead times, and no tariff exposure or customs delays on rush orders.
- Lifetime Limited Warranty: Zero replacement cost across the system lifecycle. On a 200-door campus system lasting 15 years, amortizes to pennies per door per year.
Deployment Considerations:
- Confirm backplane slot count in your Trove2 chassis before speccing module count. Undersizing the backplane early forces costly cabinet upgrades later. Reference the product datasheet or contact Altronix tech support for your specific cabinet model.
- The TKS2 is a passive interconnect — it has no active electronics. Power distribution to modules still flows through Trove2 power supplies. Ensure your 24VDC supply is sized for the full module load (typically 2-4A per controller module, 0.5A per reader). Undersizing the supply, not the backplane, is the most common integration error.
- For systems with distributed controllers across multiple cabinets, you'll need one TKS2 per cabinet. Plan network topology and communication paths between cabinets at design time; late changes to controller placement drive re-termination labor.
- The backplane is passive, but readers and locks connected to Trove2 modules may require surge protection on long cable runs (especially in buildings with lightning exposure). Use Altronix surge modules in the reader and lock circuits; the backplane itself doesn't need surge protection.
- If migrating from a legacy Altronix system to Trove2, the TKS2 backplane is your central component — existing readers and locks often reuse the same wiring. Confirm reader protocol support (Wiegand, RS-485) on your Trove2 controller modules before cutting over.
The TKS2 is a must-spec for any Trove2 integration involving more than two modules or multi-building expansion. If you're designing access control for a campus, healthcare network, or multi-tenant commercial property, the TKS2 backplane is how you future-proof the system and keep capex flexible. Explore the full Altronix catalog for compatible controllers, readers, and power supplies.
