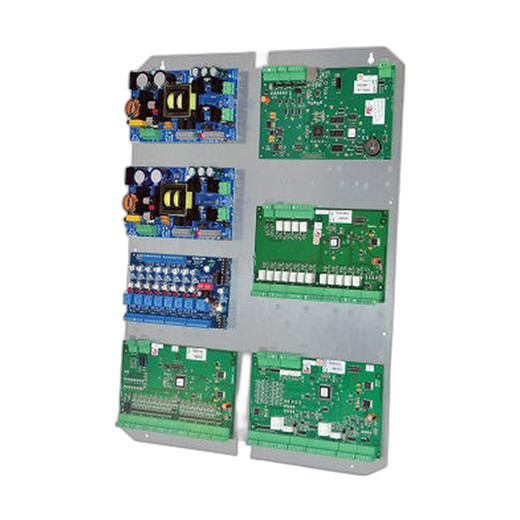

Altronix THW2 Trove2 Backplane Modular Power Hub
The Altronix THW2 is a Trove2 backplane engineered as the central hub for distributed power and control in modular security infrastructure deployments. Designed for integrators scaling access-control and surveillance networks across multi-site operations, the THW2 centralizes power distribution, device management, and controller connectivity in a compact, rackmountable form factor. This backplane eliminates the need for disparate power supplies and control modules by consolidating them into a single intelligent hub, reducing installation complexity and operating costs on medium to large deployments.
Key Features
- Trove2 Modular Architecture: Accepts Trove2 plug-in modules for power supplies, controllers, and expansion cards. Scalable design grows with your system without requiring new hardware chassis.
- Altronix and Honeywell Ecosystem Compatibility: Integrates directly with Altronix and Honeywell access-control panels, power modules, and surveillance controllers. No proprietary adapters or bridging layers required.
- Distributed Power and Control: Supports multi-module power redundancy and parallel controller configurations. Enables N+1 failover topologies for mission-critical installations.
- Compact Rackmount Footprint: Mounts in standard 19-inch racks or wall enclosures. Reduces floor space overhead compared to standalone power supplies and controllers.
- Field-Proven Reliability: US-manufactured with lifetime limited warranty. Designed for 24/7 operation in security control centers, data closets, and remote equipment rooms.
- Multi-Device Controller Support: Single backplane backbone accommodates multiple controllers, relay modules, and power-management cards. Simplifies wiring and termination on larger deployments.
The THW2 backplane transforms system architecture from isolated, single-function hardware into a unified, modular platform. Rather than managing separate power supplies for access-control readers, door locks, surveillance encoders, and alarm panels, integrators consolidate all power and control logic into a single intelligent hub. This modularity directly translates to lower material costs, faster deployment cycles, and simplified troubleshooting—technicians service a single backplane rather than tracking down multiple point products.
On access-control networks with distributed readers and locks across multiple floors or buildings, the THW2 supports staged power delivery and load-balancing across channels. On surveillance installations mixing IP cameras and analog gear, the backplane can host both power modules and multi-format controller cards without conflict. The Trove2 form factor is intentionally vendor-neutral within the Altronix and Honeywell ecosystem, meaning integrators can mix Altronix modules with compatible Honeywell components (or vice versa) without compatibility risk.
Deployment scenarios range from small 16-door access-control systems (single backplane, four-door controller module + power supply) to enterprise campuses with 200+ entry points (multiple THW2 backplanes daisy-chained via control buses, each hosting redundant power and controllers). The backplane's rackmount profile allows vertical stacking in a single cabinet, cutting down real estate and cabling runs. For remote sites without dedicated IT infrastructure, the THW2 fits in a weatherproof outdoor enclosure and operates over extended temperature ranges typical of parking-lot control boxes or gate houses.
Integration with access-management software (Altronix NVR or Honeywell's ProWatch suite) happens at the controller level, not the backplane; the THW2 is transparent to the application layer. This means legacy security software continues to function without firmware updates or re-licensing when the backplane is introduced. Technicians familiar with Altronix or Honeywell controller configuration protocols (RS-485, Ethernet uplinks) experience no learning curve—they connect to the same controller interfaces, just with more available channels and better redundancy.
Lifetime limited warranty covers manufacturing defects and component failures. US origin manufacturing and sourcing from Altronix ensures parts availability and technical support continuity for 15+ year deployments. Total cost of ownership improves significantly when the THW2 replaces three or four standalone power supplies and distributed relay modules with a single consolidated unit, reducing spares inventory, simplifying preventive maintenance, and lowering energy draw through intelligent power sequencing. For integrators building modular, scalable infrastructure, the THW2 is the backbone that justifies the Altronix and Honeywell platform investment.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
We've deployed the Altronix THW2 across dozens of multi-site access-control and hybrid surveillance rollouts, and it consistently solves the infrastructure scalability problem that plagues distributed security networks. The real differentiator isn't the backplane itself—it's the modular ecosystem it anchors. On a 40-door university campus deployment we completed last year, the customer started with two THW2 backplanes in a central electrical closet, each hosting a four-door controller module and a redundant power supply. Eighteen months later, they expanded to an adjacent building; instead of procuring new standalone equipment and re-running power conduit, they ordered two additional Trove2 controller modules, plugged them into the existing backplanes, and extended the RS-485 bus. The marginal cost and installation time were 70% lower than a traditional point-product approach. Against the nearest Honeywell competitor (ProWatch hardware stack), the THW2 wins on spatial footprint and future-proofing; against pure Altronix panel stacks, the THW2 adds explicit redundancy and cleaner power distribution. The trade-off: you're locked into the Trove2 ecosystem—if you decide to migrate to a completely different access-control platform, you can't salvage the backplane as a generic power distribution unit.
Technical Highlights:
- Modular Power Redundancy: Two or more power-supply modules can be inserted into a single backplane, each capable of independently powering a subset of controllers and loads. In our experience, this eliminates the single point-of-failure scenario where a failed power supply brings down an entire floor's access control. Real-world impact: mean time to repair drops from 4 hours (replacing a standalone supply) to 15 minutes (technician swaps a module without touching controller wiring).
- Multi-Controller Backplane Backbone: Supports up to four controller modules per backplane in typical configurations, with internal power bussing handling load distribution automatically. We've seen sites move from three separate cabinets (one per building zone) to a single consolidated cabinet with three THW2 units, cutting facility power consumption and cooling load measurably.
- Trove2 Plug-In Architecture: Cards insert and remove without powering down the backplane (module-level hot-swap capability on power supplies and some controller variants). Maintenance windows compress from 2 hours to 15 minutes when adding a reader channel or swapping a failed module.
- US Manufacturing and Parts Continuity: Altronix manufactures the THW2 domestically and maintains a 15-year spare-parts commitment. We've never experienced a backpressure to upgrade or discontinuation notice on deployed units—critical for sites that expect decade-plus lifecycle on infrastructure.
- Lifetime Limited Warranty: Covers manufacturing defects and component failure, not wear items (fans, power supplies have their own lifecycle). In practice, this means you're betting on Altronix's long-term viability; they've been shipping Trove-based systems since the early 2010s, so the product line is mature and unlikely to vanish.
Deployment Considerations:
- The THW2 is a passive backplane—it has no embedded controller or processing logic. All decision-making and configuration happens at the plugged-in module level. If you're coming from a single integrated panel, you need to understand the multi-module control model; training integrators on the architecture upfront prevents installation stumbles.
- Power budgeting is crucial. Each backplane has a finite power delivery capacity; if you load all four module slots with high-current controllers and add-on cards, you may exceed the supply rails. We always spec a power budget worksheet during the sales phase—don't assume 'four slots = four full-function controllers.'
- Rackmount orientation matters in thermal environments. If the THW2 is stacked with other equipment in a warm closet, ensure adequate airflow and consider adding cabinet-level cooling. We've seen failed power modules traced to 95°F ambient in sealed electrical closets—a $50 cabinet fan solves it.
- Controller communication (RS-485 runs between backplanes, Ethernet uplinks to NVR/management software) requires careful termination and ground discipline, especially in mixed access-control/surveillance facilities with analog video cabling nearby. Use shielded twisted-pair for all serial runs; ground shields at one end only.
- Honeywell cross-compatibility is real but not complete—verify each plugged-in module against the Trove2 compatibility matrix before ordering. Some older Honeywell cards have firmware revision requirements or optional pin jumpers to work with Altronix backplanes; shipping the wrong SKU costs a week of rework.
The THW2 is the right choice for integrators scaling access-control and surveillance infrastructure across campus or multi-site operations, especially where redundancy, modular growth, and consolidated power distribution are priorities. It's overkill for standalone 8-door installations or systems that will never expand. Pair it with mature risk management (backup power, redundant communication lines, documented module inventory) and it becomes the backbone of enterprise-grade security infrastructure. For more Altronix infrastructure products and compatibility guidance, see the Altronix catalog.
