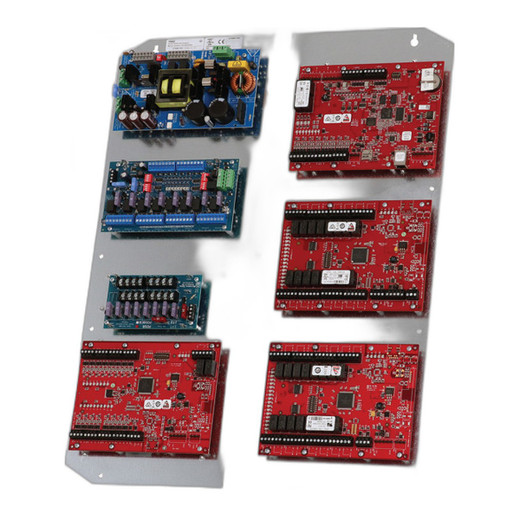

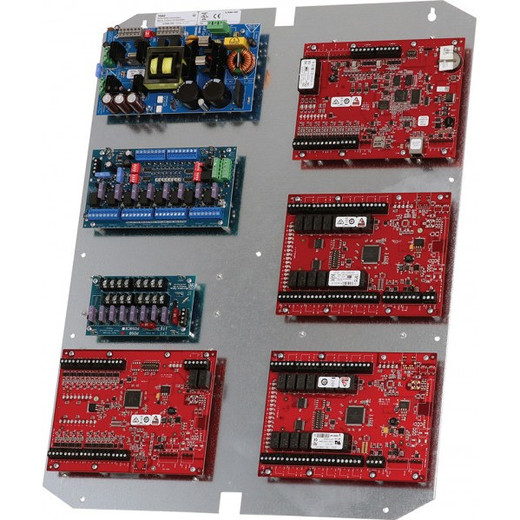

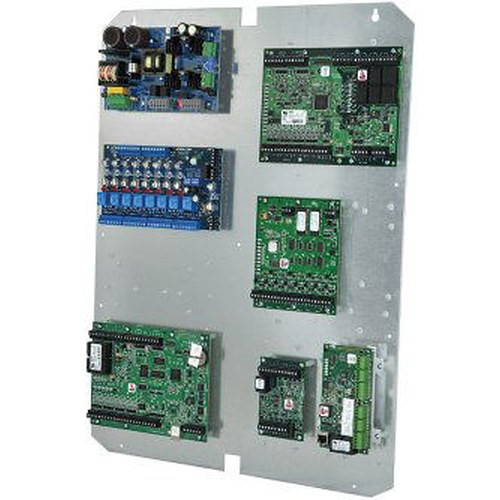

Altronix TM2 Trove2 Backplane
The Altronix TM2 is a Trove2 backplane designed as the central interconnect platform for modular power supply configurations. It enables multi-module stacking in compact enclosures, allowing you to scale power distribution capacity without replacing the entire system. This modular approach saves real money on upgrades — add modules as demand grows rather than over-engineer at install time.
Key Features
- Trove2 Form Factor Standardization: The TM2 implements the Trove2 architecture, meaning any compatible modular power module from Altronix or Mercury plugs in directly. No adapter boards, no custom harnesses. If your access control system grows from a 4-door to an 8-door installation, you can add capacity with a single additional module.
- Multi-Module Stacking Capability: Supports stackable configurations that let you consolidate multiple power supplies into one physical footprint. Useful in retrofit or space-constrained electrical rooms where you cannot add a second enclosure.
- Standardized Interconnect Design: Eliminates guesswork on module compatibility within the Altronix and Mercury ecosystem. All voltage and current distribution runs through the backplane — no cross-wiring, no pin-misalignment risk.
- Modular Upgrade Path: Instead of decommissioning a working power supply when you add a reader, camera, or lock, the TM2 backplane lets you add a single new module. Reduces waste and downtime.
- Compact Enclosure Integration: Fits within standard electrical cabinet depths, preserving space for terminal blocks, relays, and other control hardware. Particularly valuable in distributed access control where space is tight.
- Lifetime Limited Warranty: Altronix stands behind the TM2 for the life of the system — no expiration clock ticking down. Matters when this backplane sits in a wall or ceiling crawl space for a decade.
Integration and Compatibility
The TM2 backplane works exclusively within the Altronix and Mercury modular power families. Verify that any modules you intend to stack carry Trove2 designation before ordering. The backplane itself carries no output terminals — it is a passive interconnect; modules attached to it supply the actual 12VDC or 24VDC rails. Installation requires standard DIN-rail mounting or enclosure integration; no special power tools or calibration needed.
Deployment Context
Install the TM2 when your access control or IP surveillance infrastructure needs phased expansion. Common scenarios: a three-site rollout where each location adds readers or cameras on a six-month cycle; a warehouse retrofit where lighting and door control load grows as new zones come online; or a campus deployment where you want to add capacity to one building's power subsystem without touching the others. The modular approach also simplifies troubleshooting — if one module fails, swap it; the backplane and other modules stay live.
Warranty and Support
Covered by Lifetime Limited Warranty from Altronix, provided the backplane is used within published environmental and electrical ratings. Refer to the datasheet for operating temperature and humidity ranges specific to your installation site.
Frequently Asked Questions
Q: Can I use the TM2 with non-Altronix or non-Mercury modules?
A: No. The TM2 is designed exclusively for Altronix and Mercury Trove2-compatible modules. Attempting to adapt third-party modules may result in voltage misalignment or connector damage.
Q: Does the TM2 require external power or control connections?
A: No. The TM2 is a passive backplane. Power and control come from the modules attached to it. The backplane itself simply distributes those rails internally.
Q: How many modules can I stack on a single TM2?
A: Refer to your specific module documentation and enclosure thermal limits. The backplane interconnect is not the limiting factor; physical space and heat dissipation are.
Q: Is the TM2 DIN-rail mountable?
A: Yes. The TM2 supports standard DIN-rail mounting, common in electrical enclosures. Confirm your enclosure depth matches the backplane profile.
Q: What warranty period applies to the TM2?
A: Lifetime Limited Warranty. The warranty covers manufacturing defects; damage from improper installation, overvoltage, or misapplication is not covered.
Q: Can I retrofit the TM2 into an existing power infrastructure?
A: Only if that infrastructure already uses Altronix or Mercury Trove2 modules. If you currently run a fixed power supply without modular architecture, the TM2 alone will not enable stacking; you will need to replace the primary supply with a Trove2-compatible module.
Ted PerryPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix TM2 backplane solves a specific problem that many integrators face: your initial power design was correct six months ago, but now the customer wants to add two more readers, upgrade cameras, or expand access control to a second floor. Ripping out the power supply and rewiring the entire system costs time and creates downtime. The TM2, paired with Trove2-compatible modules, lets you add capacity without touching the main infrastructure.
Technical Highlights:
- Passive Interconnect Architecture: The TM2 handles voltage and current distribution only. Because there is no active electronics on the backplane itself, there is nothing to fail. Your reliability depends on the modules and enclosure, not the backplane.
- Trove2 Form Factor Lock: Every Trove2 module keys the same way. You cannot accidentally seat a 12VDC module where a 24VDC module goes. That standardization eliminates a whole class of field-installation errors.
- Lifetime Limited Warranty: Unlike consumable power supplies rated for 5–7 years, the TM2 carries a lifetime warranty. In a retrofit or long-term installation, that matters. It means you can trust the backplane to remain in service even as you swap individual modules over the years.
Deployment Considerations:
- The TM2 is only the platform; modules are separate. Do not order a TM2 assuming it supplies power on its own. You must select and budget for compatible Trove2 modules separately.
- Thermal limits depend on how many modules you stack and the enclosure cooling. Verify your electrical room ambient temperature and module current draw before specifying a multi-module stack. A fully loaded TM2 with four high-current modules in a non-ventilated cabinet can thermal-throttle or fail.
- Retrofit scenarios: if you are upgrading an older Altronix supply (non-Trove2), the TM2 will not work. You will need to replace the entire supply with a Trove2 system. Plan for downtime and re-wiring on existing reader or camera circuits.
Best fit: distributed access control or IP surveillance projects where you know the first phase is not the final phase. Install the TM2 and one or two modules now; add modules as the customer adds doors, cameras, or zones. You stay on the customer's good side because expansions are fast and low-risk. Avoid: single-building, fixed-footprint deployments where you know the electrical load is static. A non-modular fixed supply is cheaper and simpler.
