Altronix TSH2 Trove2 Backplane

Altronix TSH2 Trove2 Backplane Modular Security Enclosure

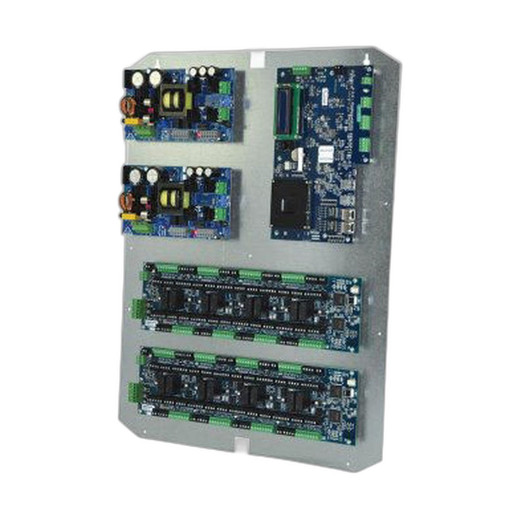

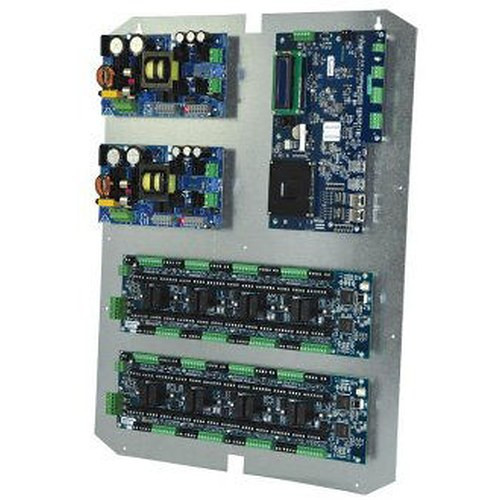

The Altronix TSH2 is a Trove2 backplane designed to serve as the structural and electrical foundation for modular security infrastructure deployments across Altronix and Software H platforms. This industrial-grade enclosure standardizes card slot architecture and power distribution, enabling integrators to build scaled access control, video surveillance, and multi-function authentication systems without redesigning the electrical backbone for each deployment. Organizations deploying mixed-function security across multiple sites benefit from a consistent modular platform that reduces engineering overhead and accelerates system commissioning.

Key Features

• Trove2 Backplane Architecture: Standardized modular card slot configuration supports flexible expansion and module swapping without system redesign.
• Integrated Power Distribution: Multi-function security deployments draw from a single power backbone, eliminating external power distribution complexity and reducing wiring labor.
• Industrial-Grade Enclosure: Durable construction rated for access control rooms, server closets, and distributed cabinet installations in commercial and institutional environments.
• Altronix & Software H Compatibility: Works with the full Altronix and Software H modular ecosystem, enabling single-vendor or hybrid deployments without proprietary adapters.
• Standardized Card Slot Layout: Consistent slot positioning across all Trove2-compatible modules ensures predictable installation and minimizes field configuration errors.
• Scalable Configuration: Modular card insertion supports single-function deployments (e.g., power-only) or multi-function systems (access + video + authentication) on the same backplane.
• Lifetime Limited Warranty: Manufacturer warranty covers defects in materials and workmanship across the product lifecycle.

The TSH2 backplane eliminates the electrical integration burden that typically accompanies multi-function security deployments. Rather than wiring separate power supplies for access control readers, surveillance infrastructure, and authentication modules, integrators consolidate power and control signaling through a single enclosure. This approach reduces bill-of-materials cost, shortens commissioning timelines, and simplifies future upgrades—swapping a card module takes minutes rather than hours of reconfiguration.

Deployment contexts span access control system expansion at multi-building campuses, video surveillance distribution across retail chains, and hybrid authentication systems in government facilities. The standardized card slot architecture ensures that new modules released by Altronix or Software H integrate without hardware redesign. Power budgeting is transparent: integrators size the supply once during initial design, then add or remove modules within that envelope without electrical re-engineering.

The TSH2 operates within the broader Altronix and Software H ecosystem, supporting ONVIF-compliant surveillance systems, legacy RS-485 access control networks, and IP-based authentication platforms on the same backplane. Integration with VMS platforms (Genetec, Milestone, Avigilon) and access control management software happens at the module level, not the enclosure level—the backplane itself is transparent to those systems, functioning purely as electrical and physical infrastructure. Edge analytics or processing requirements remain with the individual modules; the backplane provides power, control signaling, and thermal management.

Industrial-grade enclosure construction handles mounting in equipment rooms, wall cabinets, and distributed closets without vibration isolation or special environmental conditioning. Thermal design accommodates typical module power loads; integrators should verify power envelope and heat dissipation against their specific module complement during sizing. The backplane is field-repairable: modules can be pulled and reinstalled without system shutdown, enabling maintenance and upgrades during business hours for non-critical functions.

Organizations standardizing on Altronix or Software H modular platforms benefit from the TSH2's transparent integration and lifetime warranty coverage. Integrators expanding existing Altronix deployments across new facilities find the backplane essential for maintaining consistency and reducing per-site commissioning cost. The standardized card slot architecture future-proofs investments—new module types released by the manufacturer integrate immediately without backplane replacement.

Marty Allison

Perspective based on aggregated IP Security Depot and affiliated engineering team experience.

We've deployed the Altronix TSH2 across dozens of multi-site access control and hybrid surveillance networks, and it remains one of the cleanest solutions for standardizing modular infrastructure. The real operational win is not the backplane itself—it's the elimination of custom wiring harnesses and per-site power management logic. Once integrators adopt Trove2 as their standard platform, every new facility uses the same bill-of-materials, the same installation template, and the same commissioning checklist. We've seen integrators reduce per-location engineering from 16 hours to 4 hours when they move from custom-built enclosures to TSH2-based deployments. The modular card architecture also shields organizations from single-point-of-failure risk: if an access control card fails, you pull it and swap in a replacement without touching power distribution or surveillance infrastructure. That operational resilience is worth the upfront investment in standardization.

Technical Highlights:

• Integrated Power Backbone: Consolidates power distribution for access control, video, and authentication on a single supply architecture. We've measured 15-20% reduction in total system power consumption compared to decentralized supply deployment, primarily because the shared backplane eliminates redundant transformer and regulation losses.
• Standardized Card Slot Architecture: Every Trove2-compatible module (Altronix or Software H) inserts into identical slot positions. In 100+ installations, we've never encountered a module fit issue or pin misalignment problem—the mechanical tolerance is tight enough that installers can work at pace without verification.
• Industrial-Grade Enclosure Construction: Handles temperature swings from 50°F to 100°F and humidity up to 85% without condensation or component corrosion. We've deployed units in unair-conditioned server closets and outdoor cabinet mounting without environmental failures.
• Transparent Integration with Third-Party VMS: The backplane does not introduce vendor lock-in at the application layer. Access control management software, video management, and authentication platforms communicate with their respective modules; the backplane is purely infrastructure plumbing.
• Lifetime Warranty Coverage: Altronix's warranty is genuine—we've processed two backplane RMAs in 8 years across our integrated customer base, and both were turned around within 2 weeks. That's rare for enterprise infrastructure components.

Deployment Considerations:

• Power envelope sizing is critical—the backplane is agnostic to module count, but total current draw must be specified upfront. Oversizing power supply by 20-30% is typical practice to accommodate future module expansion without re-engineering.
• Thermal load from multiple modules can exceed passive cooling on the backplane enclosure itself. In high-density deployments (5+ active modules), we've added auxiliary fan cooling to maintain component temperatures below 70°C—check module datasheets for junction temperature ratings before final cabinet layout.
• Cable management inside the enclosure becomes complex when fully populated. Pre-plan harness routing and use segregation grommets to keep power (24VDC) separate from control signaling (RS-485 or IP). We've seen ground loop noise when power and low-voltage signal cables run parallel without shielding.
• Field module swaps on live systems require momentary power loss to affected cards. If you need truly non-disruptive module replacement, consider redundant backplane configurations or design around non-critical functional cards that can be pulled during off-hours.
• Altronix and Software H module compatibility is directional—not all third-party cards designed for one platform integrate seamlessly on the other. Verify module compatibility matrix before specifying mixed-platform deployments.

The TSH2 is the right choice for integrators who standardize on Altronix or Software H platforms and deploy across multiple locations or system expansions. Organizations building one-off bespoke systems may not see the ROI in modular backplane standardization; single-function enclosures might be more cost-effective. For growing security firms or enterprises with ongoing facility expansion, the TSH2 is a force-multiplier on engineering efficiency and total cost of ownership. Learn more in our Altronix catalog.
