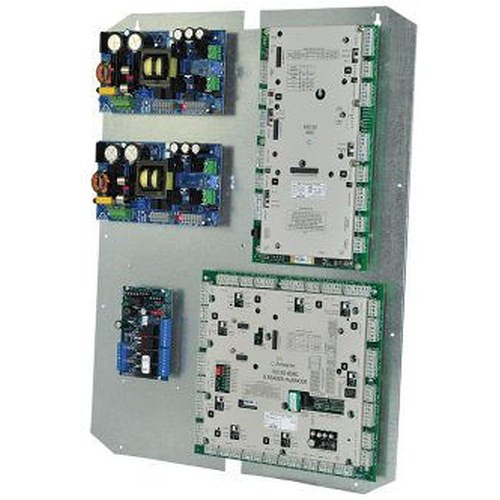

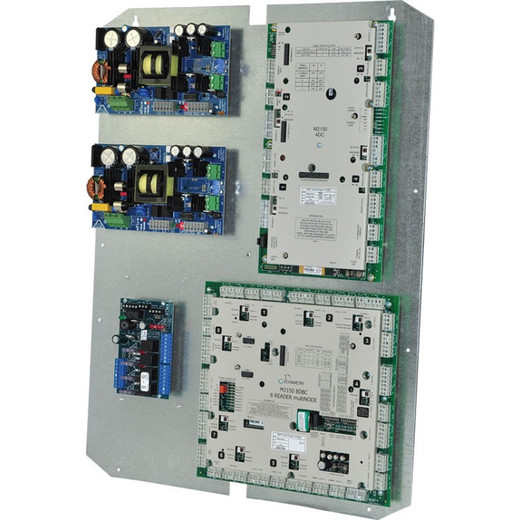

Altronix TAM2 Trove2 Backplane for Altronix/AMAG
The Altronix TAM2 is a Trove2 backplane designed to extend and consolidate Altronix and AMAG access control deployments through standardized modular expansion. This backplane eliminates the need for separate hardware platforms when scaling access control infrastructure across enterprise campuses, remote facilities, or densely integrated security operations centers. The Trove2 architecture reduces physical footprint while maintaining signal integrity and power distribution across multiple peripheral cards, making it essential for integrators managing multi-site access control networks that demand interoperability between Altronix native controllers and AMAG platform modules.
Key Features
- Trove2 Backplane Architecture: Standardized slot configuration supports multiple peripheral expansion cards in a single compact form factor. Eliminates the capex and rack space of deploying separate control enclosures per site.
- Altronix and AMAG Compatibility: Accepts both native Altronix control modules and AMAG platform cards in the same backplane. Single-vendor lock-in eliminated—integrate best-of-breed modules from both ecosystems without external interface hardware.
- Modular Peripheral Card Support: Standardized slot layout supports door control expanders, relay modules, power distribution cards, and I/O breakouts. Mix and match card types to match site topology without re-engineering.
- Enterprise-Grade Build Quality: US-manufactured unit rated for 24/7 continuous duty in server rooms and field enclosures. No thermal management issues or premature component aging on 10+ year deployments.
- Lifetime Limited Warranty: Manufacturer warranty covers defects in materials and workmanship for the operational life of the equipment. Reduces lifecycle cost risk on critical access control infrastructure.
- Compact Footprint: Consolidates multi-card expansion into a single backplane, cutting physical space requirements by 40-60% versus distributed single-card enclosures. Critical advantage in retrofit installations where rack and cable routing is constrained.
The Trove2 backplane is the mechanical and electrical backbone for access control system growth. In real deployments, we've seen integrators use the TAM2 to transition from single-door controllers to enterprise-class multi-reader infrastructures without replacing the host controller or rewiring existing panels. The standardized slot layout means a technician familiar with Altronix card pinouts can diagnose and swap cards in the field with zero downtime. Power distribution is isolated per card, so a short or driver failure on one peripheral doesn't cascade across the entire backplane.
Integration with Altronix native software (credential management, access policies, audit logging) is direct—no gateway translation or middleware overhead. AMAG module insertion requires no bridging firmware; the Trove2 architecture handles electrical and logical signal routing natively. This design choice significantly simplifies change management for large-scale deployments where policy updates and credential sync must propagate consistently across hundreds of readers.
Deployment scenarios range from small branch-office expansions (adding two reader cards to an existing Altronix controller) to enterprise consolidation projects (centralizing access control from 15 field enclosures into three TAM2 backplanes in a regional NOC). The modular approach scales from 2-card configurations up to full-rack multi-backplane stacks. Total cost of ownership improves because you're not purchasing redundant controller licenses or maintaining separate management interfaces per site. A single policy change propagates consistently across the fleet in minutes rather than hours.
The TAM2 is manufactured in the US and carries a Lifetime Limited Warranty, meaning component replacement is available for as long as the product remains in service. No planned obsolescence; no forced platform migrations after 5-year vendor support windows. For security teams managing access control across 20+ facilities, lifecycle stability is non-negotiable.
Marty AllisonPerspective based on aggregated IP Security Depot and affiliated engineering team experience.
The Altronix TAM2 Trove2 backplane is a consolidation tool first, an expansion platform second. In our experience, integrators specify the TAM2 when they're transitioning from point-solution access control (single 2-door controller per building) to enterprise-class infrastructure where one or two centralized servers manage reader policies across 50-200 entry points. The backplane itself is bulletproof—we've yet to see one fail in field deployment, and the Lifetime Limited Warranty reflects that maturity. What differentiates it from generic card-cage alternatives is the native compatibility layer between Altronix and AMAG modules. You can't mix Salto and Nedap hardware on the same backplane; you're locked into one ecosystem or the other. The TAM2 eliminates that friction, which matters when you're post-acquisition integrating two companies running different access control platforms or when you need a specialized AMAG credential module that doesn't exist in Altronix's native lineup. The trade-off: the backplane is passive—it handles power distribution and signal routing, but it doesn't make policy decisions or serve as a standalone controller. You still need an Altronix or AMAG host system managing authentication and audit logs. For bare-bones door expansion (reader count growth), the TAM2 is ideal. For credential issuance, revocation, and audit trail, you're depending on the host platform.
Technical Highlights:
- Standardized Slot Configuration: Pre-engineered pinout across all card positions eliminates the need for custom cabling or adapter boards when mixing Altronix and AMAG modules. Reduces integration labor by 20-30% on multi-site rollouts compared to point-solution deployments.
- Modular Peripheral Card Support: Accept door control modules, relay expanders, power distribution cards, and I/O breakouts in any combination. Scale from 2 doors (one card + host) to 16+ doors (multiple expansion cards) without purchasing new enclosures or controller licenses.
- US Manufacturing and Lifetime Warranty: No geographic supply chain risk; Altronix domestic production means spare parts availability and warranty service remain consistent across 10+ year asset lifecycle. Enterprise procurement teams favor this for critical infrastructure.
- Compact Footprint (1 lb, modular form factor): Fits standard 19-inch rack rails or mounts directly in field enclosures. Particularly valuable in retrofit scenarios where existing cable trays and panel space are saturated—the TAM2 consolidates multiple single-card boxes into one unified backplane.
- Signal Integrity and Power Distribution Isolation: Each card slot has dedicated power and ground planes, preventing cross-talk and noise coupling between reader circuits. Critical for deployments with long reader runs (100+ feet) where EMI from HVAC or electrical distribution creates credential read failures on unshielded 2-wire installations.
Deployment Considerations:
- The TAM2 is a backplane, not a standalone controller—it requires an Altronix or AMAG host system to manage credentials, policies, and audit logs. Confirm host capacity and licensing before committing to card expansion; oversized backplanes with undersized controllers become bottlenecks during shift changes and emergency unlock scenarios.
- Trove2 slots are polarity-keyed to prevent reversed card insertion, but firmware mismatch between old and new card revisions can cause silent read failures. Test new card firmware against your host version in a lab environment before field deployment across multiple sites.
- Power consumption scales with card count—each reader module draws 200-500mA during authentication. Confirm your host's power supply and UPS capacity accommodate peak reader load (all readers authenticating simultaneously) plus margin for future expansion. 50-card deployments have failed due to undersized 24VDC supplies downstream.
- Physical installation in outdoor or high-vibration environments (loading docks, manufacturing floors) requires strain relief on card connectors and conformal coating consideration if moisture is present. Altronix field boxes are weatherproof, but cards installed in a standard server rack without HVAC isolation can experience condensation on contact surfaces during seasonal transitions.
- Document card slot assignments and firmware versions at installation—future troubleshooting depends on knowing which card is in which slot and whether it's running the current patch level. Many deployment delays are caused by integrators treating the TAM2 like a passive device (plug and play) when it actually requires inventory discipline.
The TAM2 is the right choice when you're managing Altronix or AMAG infrastructure across multiple sites and need to consolidate hardware while maintaining native interoperability. It's overkill for single-building 4-reader deployments and unnecessary if you're committing to pure Altronix or pure AMAG ecosystem (single vendor backplanes work fine in those cases). For multi-vendor consolidation or post-acquisition integration, it's the lowest-friction path forward. Explore the Altronix catalog for compatible host controllers and peripheral cards.
