Electrical Boxes & Enclosures

Electrical boxes and enclosures provide secure housing for wiring connections, power distribution components, and device terminations in surveillance and access control systems. Proper enclosure selection supports code compliance, environmental protection, and long-term system reliability.

Plan Your Deployment

Indoor vs outdoor installation requirements
Environmental rating and sealing needs
Wiring capacity and termination space planning
Mounting surface compatibility
Electrical code compliance and inspection readiness

Get Recommendations Electrical & Power

Showing Results for Electrical Boxes & Enclosures

Compare

Out of stock
STI

SKU: EP242410-O

STI EP242410-O EnviroArmour Polycarbonate Controller

Seven-door TCP/IP controller with polycarbonate housing for networked access
Special Order · Ships in 2-3 weeks

$962.21 $601.99 Save $360.22

Add to Cart
The item has been added
Free shipping over $499

$962.21 $601.99 Save $360.22

Add to quote Compare
Compare

Out of stock
STI

SKU: EP242410-T

STI EP242410-T EnviroArmour Polycarbonate Enclosure

Polycarbonate enclosure for 7-door access control with TCP/IP
Special Order · Ships in 2-3 weeks

$1,014.19 $631.99 Save $382.20

Add to Cart
The item has been added
Free shipping over $499

$1,014.19 $631.99 Save $382.20

Add to quote Compare
Compare

Out of stock
STI

SKU: EPSNK

STI EPSNK EnviroArmour® Slot Nut Kit
Special Order · Ships in 2-3 weeks

$46.89 $31.99 Save $14.90

Add to Cart
The item has been added
Free shipping over $499

$46.89 $31.99 Save $14.90

Add to quote Compare
Compare

Out of stock
STI

SKU: ES2316BR

STI Fiberglass Enclosure, Lock, Cable Pass-Through Brush Seal

Fiberglass enclosure with lock and brush seal for outdoor access control
Special Order · Ships in 2-3 weeks

$383.05 $240.99 Save $142.06

Add to Cart
The item has been added
Free shipping over $499

$383.05 $240.99 Save $142.06

Add to quote Compare
Compare

Out of stock
STI

SKU: KIT-AP18017

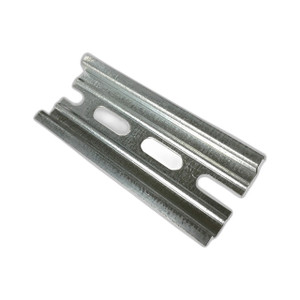

STI KIT-AP18017 Din Rail Lock/Strike for EnviroArmour

DIN rail lock/strike for EnviroArmour access control panels
Special Order · Ships in 2-3 weeks

$12.34 $8.99 Save $3.35

Add to Cart
The item has been added
Free shipping over $499

$12.34 $8.99 Save $3.35

Add to quote Compare
Compare

Out of stock
STI

SKU: KIT-BV4X

STI KIT-BV4X Fiberglass Breather Vent for EnviroArmour

Fiberglass breather vent for EnviroArmour moisture and pressure control
Special Order · Ships in 2-3 weeks

$101.17 $63.99 Save $37.18

Add to Cart
The item has been added
Free shipping over $499

$101.17 $63.99 Save $37.18

Add to quote Compare
Compare

Out of stock
STI

SKU: KIT-EVA16

STI KIT-EVA16 Din Rail Lock/Strike for EnviroArmour

DIN rail lock/strike for STI EnviroArmour access control systems
Special Order · Ships in 2-3 weeks

$49.35 $31.99 Save $17.36

Add to Cart
The item has been added
Free shipping over $499

$49.35 $31.99 Save $17.36

Add to quote Compare
Compare

Out of stock
STI

SKU: KIT-LPK3

STI KIT-LPK3 Lock/Strike Kit for EnviroArmour Enclosures

Electronic lock/strike kit for STI EnviroArmour enclosures with HID access
Special Order · Ships in 2-3 weeks

$103.40 $72.99 Save $30.41

Add to Cart
The item has been added
Free shipping over $499

$103.40 $72.99 Save $30.41

Add to quote Compare
Compare

Out of stock
STI

SKU: KIT-REV80

STI KIT-REV80 EnviroArmour Polycarbonate Breather Vent

Polycarbonate breather vent for 9VDC HID strike systems in outdoor conditions
Special Order · Ships in 2-3 weeks

$29.87 $18.99 Save $10.88

Add to Cart
The item has been added
Free shipping over $499

$29.87 $18.99 Save $10.88

Add to quote Compare
Compare

Add to Cart The item has been added
STI

SKU: KL544

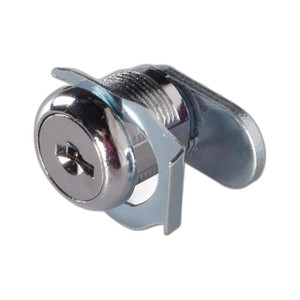

STI KL544 Key Lock for Metal Cabinets

Mechanical key lock for STI-EM metal cabinets, 9VDC operation
In stock · Ships same business day

$12.22 $8.99 Save $3.23

Add to Cart
The item has been added
Free shipping over $499

$12.22 $8.99 Save $3.23

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
STI

SKU: STI-EM07123.5

STI STI-EM07123.5 Metal Protective Cabinet 7x12x3.5"
Special Order · Ships in 2-3 weeks

$58.28 $41.99 Save $16.29

Add to Cart
The item has been added
Free shipping over $499

$58.28 $41.99 Save $16.29

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
STI

SKU: STI-EM08073.5

STI STI-EM08073.5 Metal Protective Cabinet 8x7x3.5
Special Order · Ships in 2-3 weeks

$43.13 $31.99 Save $11.14

Add to Cart
The item has been added
Free shipping over $499

$43.13 $31.99 Save $11.14

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
STI

SKU: STI-EM111103

STI STI-EM111103 Metal Protective Cabinet 11x11x3
Special Order · Ships in 2-3 weeks

$60.16 $44.99 Save $15.17

Add to Cart
The item has been added
Free shipping over $499

$60.16 $44.99 Save $15.17

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
STI

SKU: STI-EM111504

STI STI-EM111504 Metal Protective Cabinet 11 x 15 x 4
Special Order · Ships in 2-3 weeks

$88.13 $64.99 Save $23.14

Add to Cart
The item has been added
Free shipping over $499

$88.13 $64.99 Save $23.14

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
STI

SKU: STI-EM121204

STI STI-EM121204 Metal Protective Cabinet 12x12x4
Special Order · Ships in 2-3 weeks

$67.68 $50.99 Save $16.69

Add to Cart
The item has been added
Free shipping over $499

$67.68 $50.99 Save $16.69

Add to cart Add to quote Compare
Compare

Add to Cart The item has been added
STI

SKU: STI-EM151804

STI STI-EM151804 Metal Protective Cabinet 15x18x4
Special Order · Ships in 2-3 weeks

$114.57 $84.99 Save $29.58

Add to Cart
The item has been added
Free shipping over $499

$114.57 $84.99 Save $29.58

Add to cart Add to quote Compare

Browse by Product Family

Click through to shop the families that fit your electrical boxes & enclosures deployment.

Power Distribution Enclosures

Heavy-duty boxes designed for centralizing 12V DC and 24V AC power feeds to cameras, access controllers, and network devices. These enclosures house terminal blocks, breakers, and surge protection in a single rated cabinet.

Wall-Mount Utility Boxes

Compact, surface-mounted or flush-mount enclosures for conduit termination, wiring splicing, and device mounting at remote camera or access point locations. Ideal for retrofit installations where drilling through structural elements is impractical.

Weatherproof & NEMA-Rated Enclosures

Sealed boxes rated for outdoor, wet, corrosive, or hazardous environments (NEMA 4X, IP66, IP67). Essential for rooftop, perimeter, and coastal deployments where moisture, salt spray, or temperature swings threaten wiring integrity.

Conduit-Ready Boxes & Chase Nipples

Pre-drilled enclosures with multiple KO (knockout) entries and chase nipple provisions for running conduit from distribution points to camera domes, turrets, and access readers. Supports clean, code-compliant cable management.

DIN Rail & Panel-Mount Enclosures

Industrial-style boxes with internal DIN rail for mounting circuit breakers, terminal blocks, relays, and power supplies. Commonly used in central wiring closets and equipment rooms to organize distributed DC/AC outputs.

What to Look For When Buying

The decisions that matter most before you spec.

Voltage & Current Capacity Planning

Selecting an enclosure's amperage rating and internal bus bar capacity is critical to avoid bottlenecks in power distribution. Review PoE budget planning guidelines to understand total system draw, then match enclosure terminal blocks and breaker ratings to support headroom. Undersized boxes lead to thermal stress and nuisance shutdowns.

Environmental & Code Compliance

NEMA 4X (stainless steel), NEMA 4 (powder-coat steel), and IP66/IP67 ratings determine whether an enclosure survives moisture, salt fog, and temperature cycling. Indoor climate-controlled rooms can use standard NEMA 1; outdoor and wet locations demand sealed gaskets and corrosion-resistant metals. Local fire codes may also mandate enclosed wiring in certain building zones—verify AHJ requirements before ordering.

Heat Dissipation & Ventilation

Power supplies and surge suppressors generate heat, especially in densely packed enclosures. Look for models with internal fans, thermostat-controlled vents, or perforated door panels if your system will run 24/7 or rack multiple supplies. System failures during critical incidents often trace back to thermal shutdown of undersized, poorly ventilated boxes.

Conduit Integration & Cable Entry

Verify knockout (KO) sizes match your incoming conduit diameter—typically 1/2" or 3/4" EMT for larger deployments. Enclosures from Altronix and STI often feature pre-drilled entries and chase nipple provisions for quick conduit stubbing and professional wiring appearance. Mismatched KO sizes force costly adapters and compromise cable bend-radius compliance.

Mounting & Access Considerations

Choose between wall-mount (surface or flush), pole-mount (outdoor), and panel-mount (closet) based on your physical topology. Surface-mounted boxes are faster to install but more visible; flush-mount improves aesthetics but requires wall cavity space. Ensure the door opens fully for technician access to terminal blocks and breakers during troubleshooting.

Future Expansion & Spare Capacity

Larger enclosures cost only marginally more than minimal boxes but eliminate the pain of retrofitting when additional cameras, readers, or power feeds are added. Plan for 25–40% spare terminal block capacity and reserve at least one breaker slot for future circuits. Multi-site deployments often fail because initial enclosures lack room to grow.

Technology Stack

The specs and acronyms that actually affect electrical boxes & enclosures performance.

NEMA Rating (1, 3R, 4, 4X, 12)

Standardized enclosure classification for environmental protection. NEMA 1 = indoor, standard conditions; NEMA 3R = outdoor, rain/sleet; NEMA 4/4X = washdown, submersion-resistant (4X adds corrosion immunity). Higher ratings are required for rooftop, coastal, and wet-room installations.

IP Rating (IP54, IP65, IP66, IP67)

International ingress protection score where the first digit (0–6) rates solid particle protection and the second (0–9K) rates liquid resistance. IP66 = protected from high-pressure jets; IP67 = temporary submersion up to 1 meter. Critical for outdoor and wet-location boxes.

Terminal Block Amperage & Voltage Ratings

Maximum current capacity (typically 15A–100A per block) and nominal voltage class (12V, 24V, 48V) determine safe power distribution density. Exceeding rated amperage causes insulation failure and arc risk. Verify all incoming and outgoing circuits against block specs to prevent thermal overload.

Knockout (KO) & Chase Nipple Provisions

Pre-drilled 1/2", 3/4", or 1" entries allow conduit to stub directly into the enclosure without adapters. Chase nipples (removable threaded inserts) let you drill additional holes on-site while maintaining NEMA ratings. Proper KO matching eliminates sloppy cable entries and maintains bend-radius compliance.

DIN Rail & Breaker Compatibility

Standard 35mm DIN rail allows modular mounting of 1U terminal blocks, relay modules, and miniature circuit breakers. Verify your breaker and block brands (e.g., Altronix, Schneider, ABB) fit the rail pitch; mismatches waste valuable enclosure space and create unsafe crowding.

Thermal Management & Ventilation

Internal fan ratings (CFM), thermostat setpoints, and door perforation patterns determine whether heat from power supplies and surge devices can escape. Sealed boxes without ventilation risk component failure in warm climates or high-density layouts; factor in ambient temperature and duty cycle when choosing ventilation strategy.

Typical Deployment Scenarios

10-Camera Mixed-Indoor Retail Deployment

Wall-mount NEMA 1 utility box in back office with two 12V/5A switching power supplies, six-position terminal block, and dual-pole breaker. Conduit stubs to camera domes and access reader at front entrance. Box size: 16×12×6"; total draw ~40W; spare capacity for future DVR integration.

20-Camera Multi-Floor Corporate Campus

Central 24×20×8" DIN-rail enclosure in main equipment closet distributes 24V DC via four 24V/10A supplies to four satellite wall-mount boxes on separate floors. Each satellite box consolidates wiring from 5 cameras and one door reader. Surge protection on each branch prevents single-failure cascade.

Rooftop PTZ & Perimeter Fence Line

NEMA 4X stainless-steel weatherproof box rated IP67 houses 48V/5A supply for PTZ turret, analog camera bridge, and perimeter sensor interface. Box mounted on pole with drip loop conduit entry, thermostat-controlled fan (setpoint 40°C). Withstands salt spray and temperature swings from −10°C to +50°C.

Industrial Warehouse with Dock Doors

Large NEMA 4 powder-coat steel enclosure (30×24×12") in spray-down zone with 12V and 24V bus bars, 15-position terminal block, six breaker slots, and internal blower. Feeds six overhead dome cameras, four dock-door magnetic switches, and emergency beacon. Designed for 10-year lifecycle with 25% expansion capacity reserved.

Top Brands for Electrical Boxes & Enclosures

Click through to each brand for engineering profile and NDAA compliance status.

Altronix

Authorized dealer · browse the full Altronix catalog for this category

STI

Authorized dealer · browse the full STI catalog for this category

ELK Products

Authorized dealer · browse the full ELK Products catalog for this category

Axis

Authorized dealer · browse the full Axis catalog for this category

Frequently Asked Questions

What's the difference between NEMA 4 and NEMA 4X enclosures?

NEMA 4 uses powder-coated steel that resists corrosion in standard outdoor environments but may eventually rust in coastal or high-humidity zones. NEMA 4X uses 304-grade stainless steel, which is immune to salt spray and chemical corrosion—necessary for oceanside, industrial, or car-wash applications. Both are sealed against water jets and submersion; cost difference is 20–40%.

Can I flush-mount an electrical box in a finished wall, or does it need surface mounting?

Flush-mount boxes require a cavity behind drywall or paneling and are preferred for aesthetic installations in occupied office or retail spaces. Surface-mount boxes attach to solid wall face and are faster to install but more visible. Check local code: some jurisdictions require flush-mount in public areas. Also verify your wall thickness and stud spacing can accommodate the box depth.

How do I size a terminal block to avoid overload?

Add up the amperage of all circuits entering and exiting the block, then verify the block's rating exceeds that total by at least 20%. For example, if you're connecting four 5A camera feeds and one 10A return path, total is 30A—use a 50A or higher terminal block. Never rely on a single terminal block for more than 80% of its rated capacity, as heat buildup causes insulation degradation.

What does 'chase nipple provision' mean, and do I need it?

A chase nipple is a removable threaded plug in a pre-drilled knockout hole that allows field conduit installation while maintaining the NEMA rating seal. If you order an enclosure without knowing exact conduit sizes or locations, chase nipple provisions give you flexibility to drill and tap the right entries on-site. It's most valuable in retrofit work or multi-site rollouts where box placement varies.

Should I buy a bigger enclosure than I think I need?

Yes—larger boxes cost only 10–20% more than minimal boxes but pay for themselves in future flexibility. Plan for 25–40% spare terminal block capacity and at least one open breaker slot. System expansion is inevitable, and retrofitting a cramped box is frustrating and expensive.

What's the typical lifespan of an electrical enclosure, and how does environment affect it?

Well-designed steel or stainless enclosures last 15–20 years indoors and 10–15 years outdoors if properly sealed and ventilated. Coastal or chemical environments (NEMA 4X stainless) extend usable life to 20+ years. Indoor NEMA 1 boxes in climate-controlled rooms often outlast the surveillance systems they house. Regular inspection of gaskets, fan operation, and internal corrosion every 3–5 years maximizes lifespan.
